Crosby® SHUR-LOC® S-1326 Swivel Hook

Crosby® SHUR-LOC® S-1326 Swivel Hook

• Forged Alloy Steel — Quenched and Tempered.
• Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
• Recessed trigger design is flush with the hook body, protecting the trigger from potential damage.
• Easy to operate with enlarged thumb access.
• Positive Lock Latch is Self-Locking when hook is loaded.
• Rated for both Wire Rope, and use with Grade 80/100 Chain.
G-414 Heavy Thimble should be used with wire rope slings.
• Trigger repair Kit available (S-4316). Consists of spring, roll pin and trigger.
S-13326 Swivel Hook utilizes anti-friction bearing design which allows hook to rotate freely under load.



S-1326 SHUR-LOC® Swivel Hooks

• Suitable for infrequent, non-continuous rotation under load.

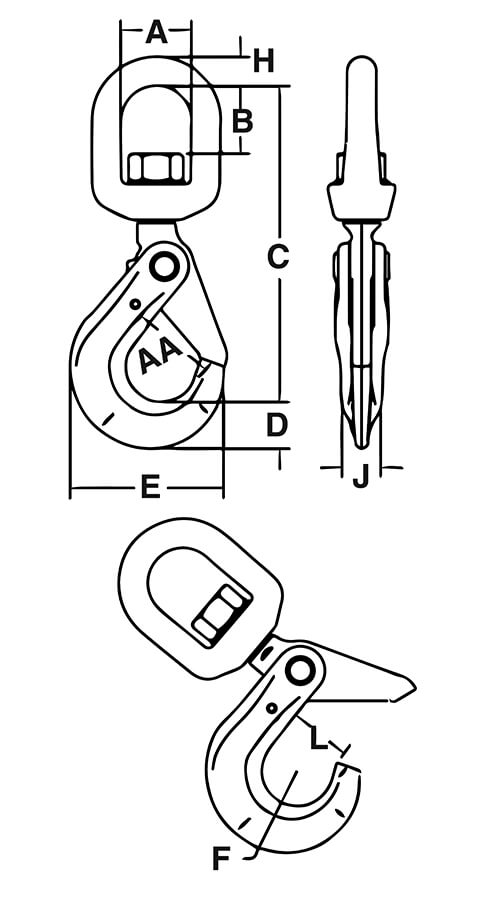

Chain Size S-1326 Stock No. Grade 100 Alloy Chain Working Load Limit (lbs.) 4:1* Weight Each (lbs.) Dimensions (in.)
(in.) (mm) A B C D E F H J L AA
6 1004304 3200 1.26 1.50 1.32 6.13 .79 2.60 .67 .50 .63 1.13 1.50
1/4-5/16 7-8 1004313 5700 2.62 1.75 1.59 7.60 1.10 3.50 .87 .63 .81 1.38 2.00
3/8 10 1004322 8800 4.70 2.00 1.73 8.83 1.17 4.39 1.10 .75 .94 1.75 2.50
1/2 13 1004331 15000 8.64 2.50 2.38 11.20 1.67 5.45 1.26 1.00 1.16 2.11 3.00
5/8 16 1004340 22600 17.00 2.75 2.53 12.98 2.05 6.56 1.50 1.13 1.50 2.49 3.50
3/4 18-20 1004349 35300 24.00 2.83 2.52 17.42 2.22 7.76 2.01 1.10 2.03 3.52 5.00
7/8 22 1004358 42700 29.00 3.44 3.19 16.47 2.45 8.75 2.26 1.30 2.20 3.83 6.00

* Minimum Ultimate Load is 4 times the Working Load Limit.

• S-13326 Swivel Hook utilizes antifriction bearing design which allows hook to rotate freely under load.
• Fatigue rated.
• The SHUR-LOC® hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B).
• “Look for the Platinum Color – Crosby Grade 100 Alloy Products”.
• U.S. Patent 5,381,650 and foreign equivalents.

Use in corrosive environment requires shank and nut inspection in accordance with ASME B30.10-1.10.4(b)(5)(c)2009.
