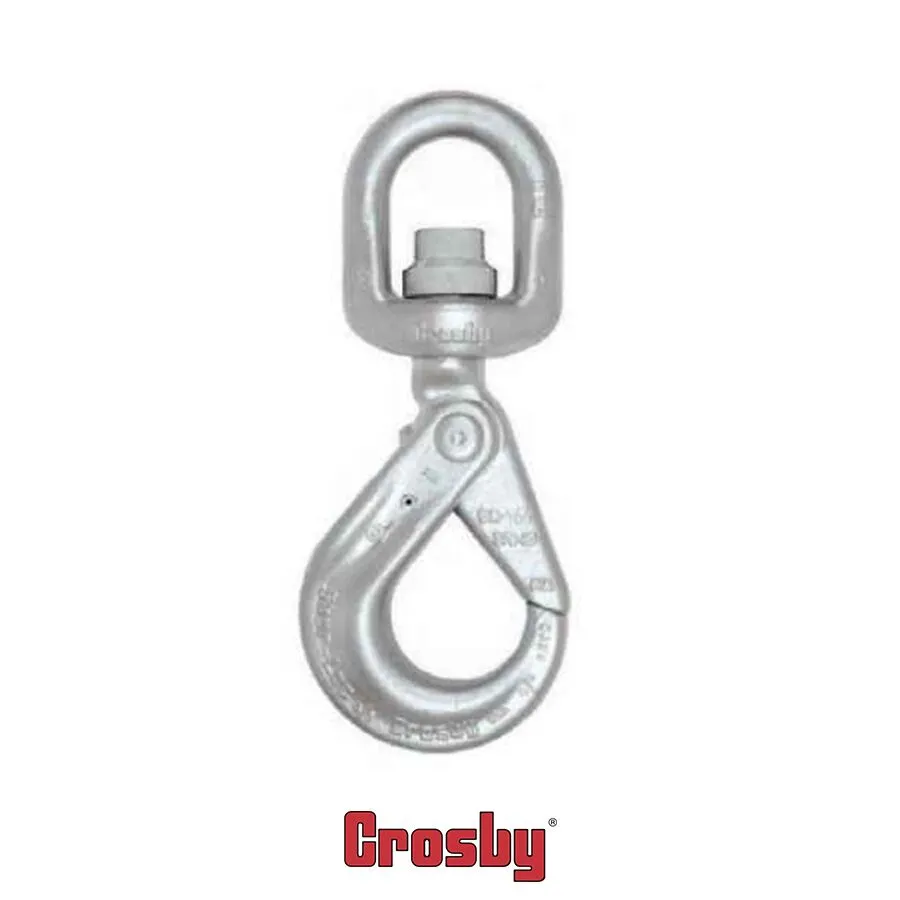

Crosby® SHUR-LOC® S-13326 Swivel Hooks with Bearing

Crosby® SHUR-LOC® S-13326 Swivel Hooks with Bearing

• Forged Alloy Steel — Quenched and Tempered.
• Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
• Recessed trigger design is flush with the hook body, protecting the trigger from potential damage.
• Easy to operate with enlarged thumb access.
• Positive Lock Latch is Self-Locking when hook is loaded.
• Rated for both Wire Rope, and use with Grade 80/100 Chain.
G-414 Heavy Thimble should be used with wire rope slings.
• Trigger repair Kit available (S-4316). Consists of spring, roll pin and trigger.
• Utilizes anti-friction bearing design which allows hook to rotate freely under load.



S-13326 SHUR-LOC® Swivel Hooks with Bearing

• Suitable for frequent rotation under load.

Chain Size S-13326 Stock No. Grade 100 Alloy Chain Working Load Limit (lbs.) 4:1* Weight Each (lbs.) Dimensions (in.)
(in.) (mm) A B C D E F H J L AA
6 1004404 3200 1.50 1.50 1.14 6.17 .79 2.60 .67 .50 .63 1.13 1.50
1/4-5/16 7-8 1004413 5700 3.10 1.75 1.52 7.54 1.10 3.50 .87 .63 .81 1.44 2.00
3/8 10 1004422 8800 5.26 2.00 1.61 8.88 1.16 4.35 1.10 .75 .94 1.83 2.50
1/2 13 1004431 15000 11.22 2.50 2.03 11.11 1.66 5.45 1.26 1.00 1.16 2.19 3.00
5/8 16 1004440 22600 17.32 2.75 1.98 12.61 2.05 6.56 1.50 1.13 1.50 2.61 3.50

*Ultimate Load is 4 times the Working Load Limit.

• Fatigue rated.
• The SHUR-LOC® hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B).
• “Look for the Platinum Color – Crosby Grade 100 Alloy Products”.
• U.S. Patent 5,381,650 and foreign equivalents.

Use in corrosive environment requires shank and nut inspection in accordance with ASME B30.10-1.10.4(b)(5)(c)2009.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
