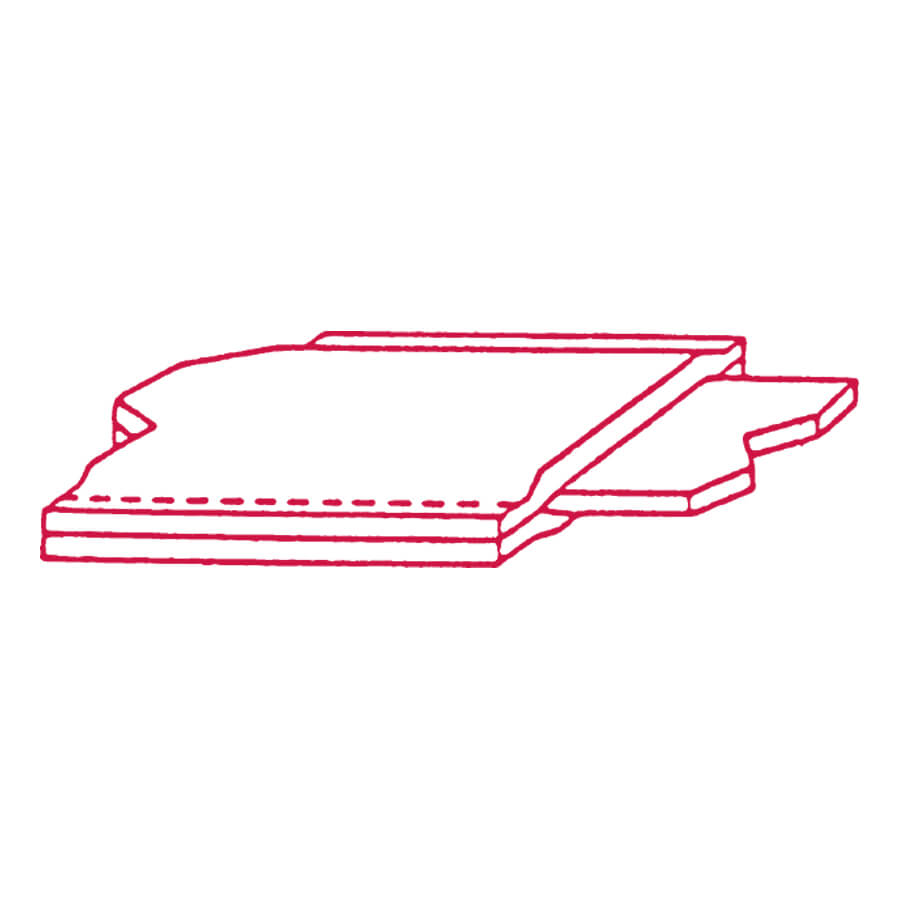

SLEEVE – Sometimes called sliding sleeve or tube type wear pads, these pads are suggested for handling material with sharp edges. Sleeves cover both sides of the sling and can be shifted to wear points.
| CERTEX Cat. Ref. No. | Size | A | B | C | D | E | F | G | Approx. Weight (lbs.) | Rated Capacity (lbs.) | Minimum Break |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CX07-0091 | T2 | 4 | 3 5/8 | 2 1/4 | 1 3/4 | 15/16 | 2 3/8 | 9/16 | .31 | 3,360 | 16,800 |
| CX07-0092 | T3 | 5 1/4 | 5 | 3 1/4 | 2 | 1 3/16 | 3 5/16 | 5/8 | .75 | 5,000 | 25,000 |
| CX07-0093 | T4 | 6 1/4 | 6 5/8 | 4 3/8 | 2 3/8 | 1 7/16 | 4 | 11/16 | 1.1 | 6,700 | 33,500 |
| CX07-0094 | T6 | 8 5/16 | 8 7/8 | 6 3/8 | 3 1/8 | 1 3/4 | 5 1/2 | 15/16 | 2.7 | 9,700 | 48,500 |
