• Recommended for light duty service.
• Hot Dip galvanized Steel.
G-411 meets the performance requirements of Federal Specification FF-T-276b Type II, except for those provisions required of the contractor.

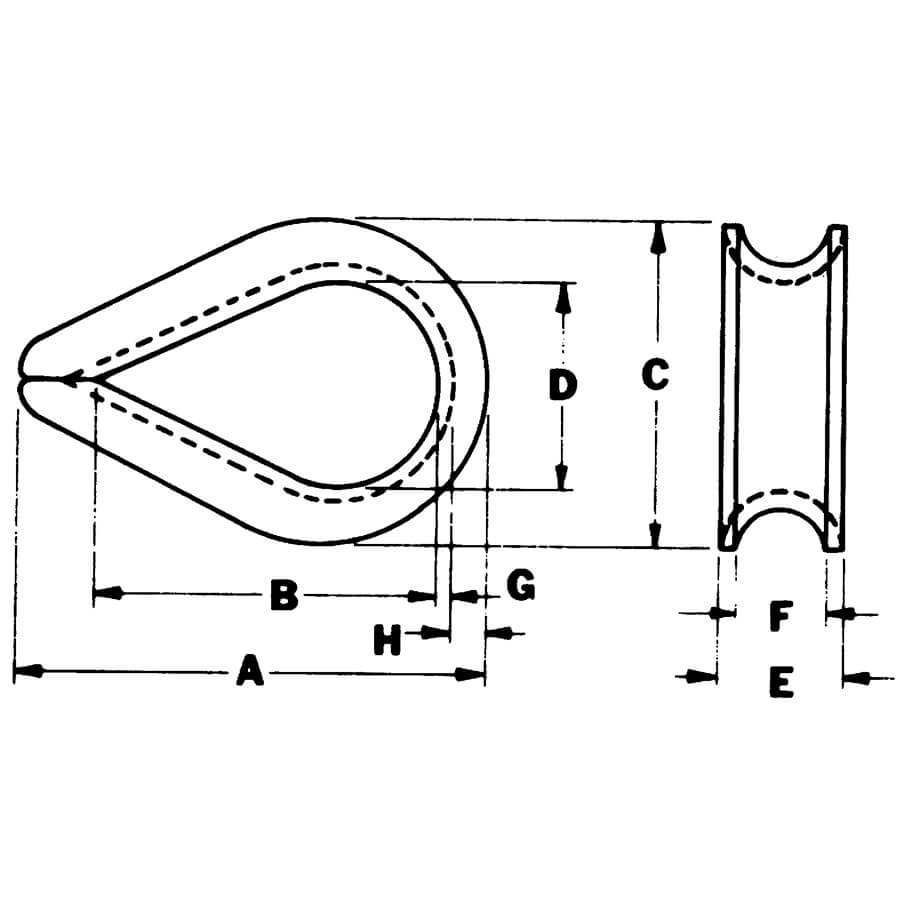

| Rope Dia (in.) | CERTEX Cat. Ref. No. | Crosby G-411 Stock No. Galv. | Weight Per 100 (lbs.) | Dimensions (in.) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | ||||
| 1/8 | CX05-0325 | 1037256 | 3.50 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 |
| 3/16 | CX05-0326 | 1037274 | 3.50 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 |
| 1/4 | CX05-0327 | 1037292 | 3.50 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 |
| 5/16 | CX05-0328 | 1037318 | 4.00 | 2.13 | 1.50 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 |
| 3/8 | CX05-0329 | 1037336 | 6.70 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 |
| 1/2 | CX05-0330 | 1037354 | 12.50 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 |
| 5/8 | CX05-0331 | 1037372 | 34.50 | 3.50 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 |
| 3/4 | CX05-0332 | 1037390 | 47.10 | 3.75 | 2.50 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 |
| 7/8 | CX05-0333 | 1037416 | 84.60 | 5.00 | 3.50 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 |
| 1 | CX05-0334 | 1037434 | 97.50 | 5.69 | 4.25 | 3.75 | 2.50 | 1.39 | 1.06 | 0.16 | 0.41 |
| 1 1/8 – 1 1/4 | CX05-0335 | 1037452 | 175.00 | 6.25 | 4.50 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.50 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
