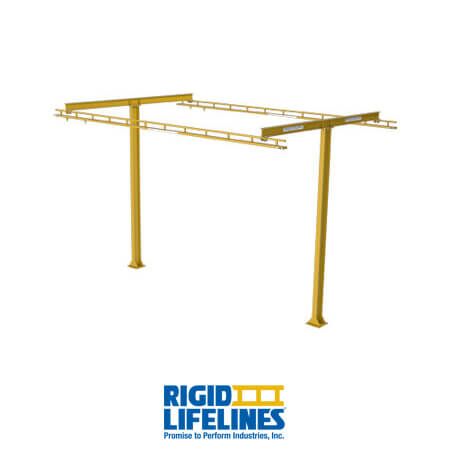

Rigid Lifelines® T-Frame Anchor Track™ System

Rigid Lifelines® T-Frame Anchor Track™ System

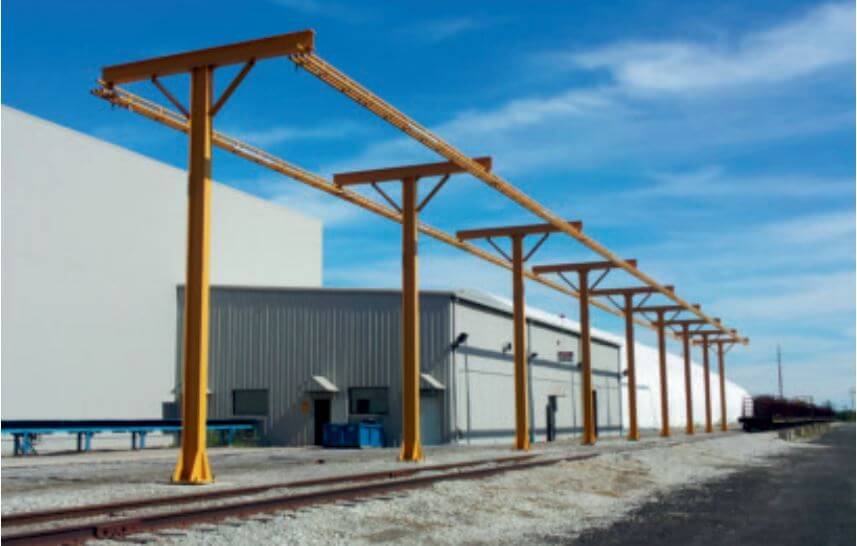

Rigid Lifelines® T-Frame Anchor Track™ System provides fall protection that allows workers to perform maintenance and service tasks on two vehicles at the same time. Ideal for the transportation industry, the T-Frame system can cover long spans by using required concrete foundations. Double your protection and maximize your workspace by using the T-Frame Anchor Track™ System.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

IMPORTANT NOTE: Our systems are designed for maximum person weight, plus tools, to be 310 pounds when used with 900 maximum average arresting force (MAAF) energy absorbing self-retracting lanyards. Custom systems are available for heavier workers up to 420 pounds; please inquire with our technical sales team for more information.

  • Each frame consists of a freestanding column topped with a header
  • Service two vehicles with one system
  • Standard trolley-hook height is 22 feet (custom heights available)
  • Standard arm reach distances between six and 12 feet (custom distances available)
  • Column spacing distances up to 50 feet
  • Requires concrete foundations
  • System can support one to four workers per side (higher capacity available upon request)
  • Quick and simple field assembly with bolt-together components — no welding required
  • Enclosed track design decreases the possibility of dirt or dust build-up interfering with trolley travel
  • Anchor Trolley™ comes standard
  • Meets or exceeds OSHA and ANSI standards
  • The internally tapered track self-centers trolleys and end trucks, so rolling movement is smooth, quiet, and highly ergonomic
  • Custom heights, spans, cantilever design, and support structures
  • Single, dual, or multiple tracks for use by one, two, or multiple users
  • Intermediate bumpers can be used to limit trolley travel between the factory-installed end stops for any reason
  • Curved track accommodates almost any degree curve
  • Any color paint, epoxy coatings, or galvanized finish
  • Mylar® lip seal for heavy dust or paint overspray applications
