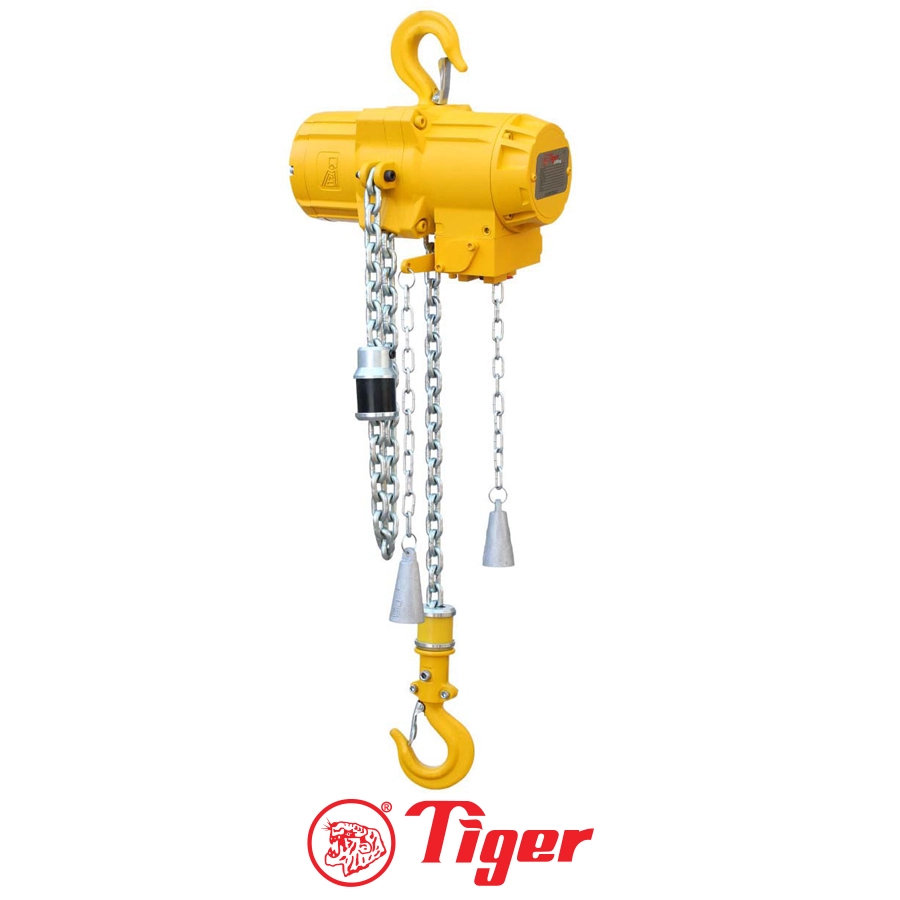

Tiger TAHS Pneumatic Air Hoist 250kg – 2t

Tiger TAHS Pneumatic Air Hoist 250kg – 2t
  • Range – 0.25 tonne to 2.0 tonne
  • Reliable, fast, efficient, quiet and lightweight
  • Greater than 5:1 factor of safety
  • Suitable for Fleeting/Oblique pulling
  • Certified for ATEX Category 3 – normal safety

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
STOCK NUMBER LIFTING CAPACITY (TONNE) FALLS OF CHAIN CHAIN SIZE (mm) TOTAL WEIGHT (kg) FULL LOAD LIFTING SPEED (m/min) NO LOAD LIFTING SPEED (m/min) FULL LOAD LOWERING SPEED (m/min) NO LOAD LOWERING SPEED (m/min) AIR CONSUMPTION (m3/min) AIR CONNECTION SUPPLY HOSE (Inside ø) (mm SOUND LEVEL (dB(A))
AH-002 0.25 1 7.1 X 21.2 25.0 22.5 32.0 31.0 25.0 2.1 G½ 16.0 76
AH-005 0.5 1 7.1 X 21.2 25.0 15.0 29.5 36.0 23.0 2.1 G½ 16.0 76
AH-010 1.0 1 7.1 X 21.2 25.0 7.5 16.0 20.4 13.0 2.1 G½ 16.0 76
AH-020 2.0 2 7.1 X 21.2 32.8 3.8 8.0 10.2 6.5 2.1 G½ 16.0 76

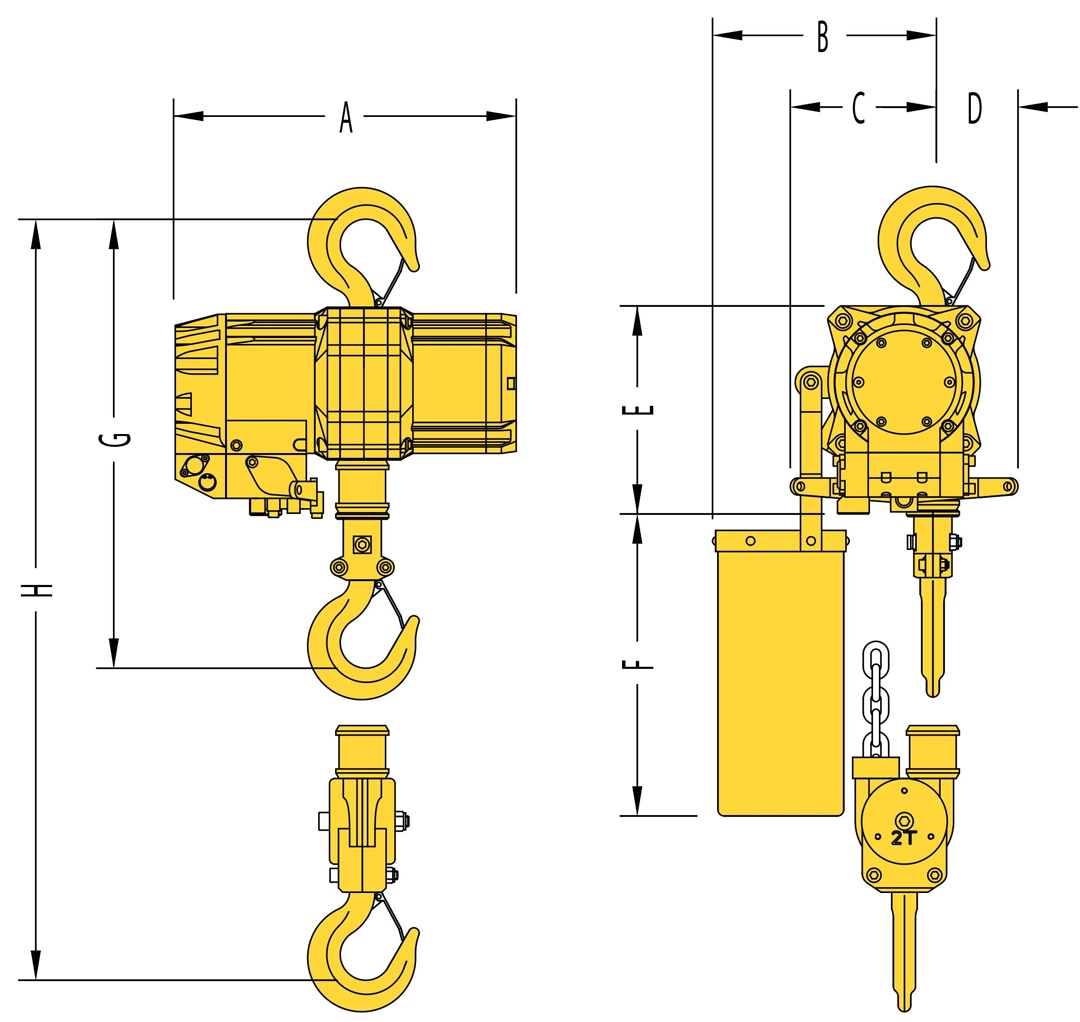

STOCK NUMBER DIMENSIONS
A B C D E F (MIN) G(MIN) H (MIN)
AH-002 312 216 135 85 196 370 420 –
AH-005 312 216 135 85 196 196 420 –
AH-010 312 216 135 85 196 370 420 –
AH-020 312 216 135 85 196 370 – 495

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
