Crosby® The Terminator™ Wedge Socket

Crosby® The Terminator™ Wedge Socket
  • Wedge Sockets – Warnings & Application Instructions
  • Basket is cast steel
  • Individually magnetic particle inspected
  • Pin diameter and jaw opening allows wedge and socket to be used in conjunction with open swage and spelter sockets.
  • Secures the tail or “dead end” of the wire rope to the wedge, thus eliminates loss or “Punch out” of the wedge
  • Eliminates the need for an extra piece of rope, and is easily installed.
  • The TERMINATOR™ wedge eliminates the potential breaking off of the tail due to fatigue.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Wire Rope Dia. ‡ (In.) CERTEX Cat. Ref. No. Crosby Stock No. Complete Assembly* S-421T Weight Each (lbs.)†† CERTEX Cat. Ref. No. Crosby Stock No. Wedge Only S-421T Weight Each* (lbs.) Dimensions (In.)

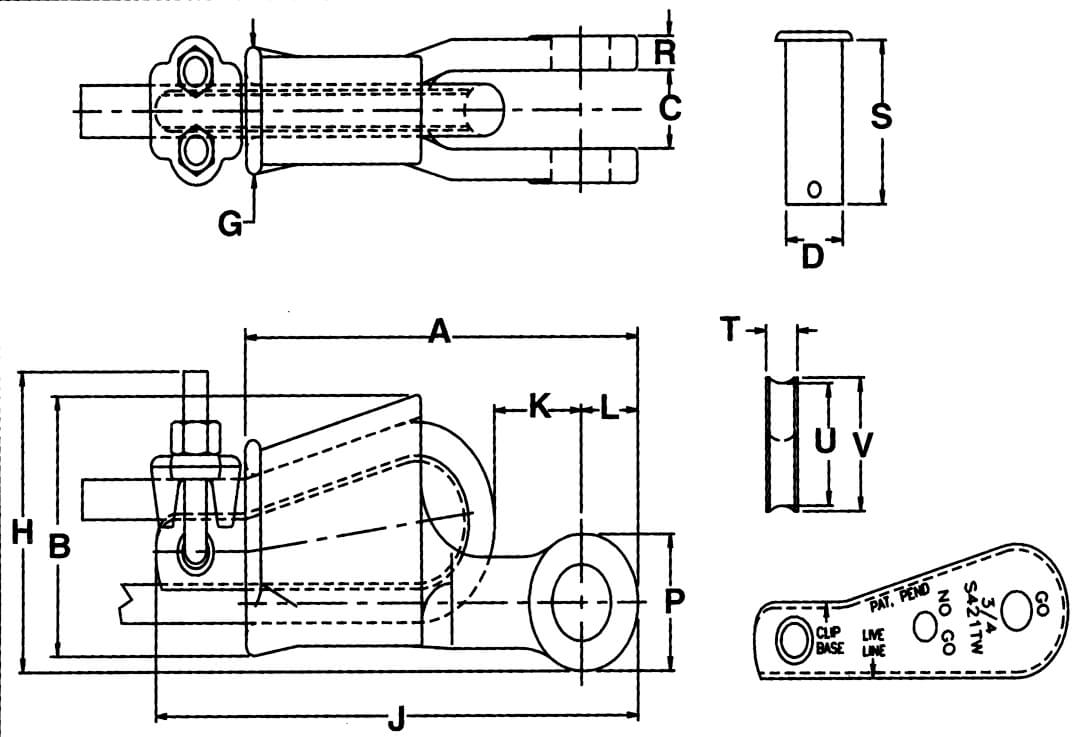

A B C D G H J† K† L P R S T U V
3/8 CX04-0042 1035000 3.18 CX04-0050 1035555 0.50 5.63 2.77 0.81 0.81 1.38 3.12 7.38 1.60 0.88 1.56 0.44 2.13 0.44 1.25 1.38
1/2 CX04-0043 1035009 6.15 CX04-0051 1035564 1.05 6.81 3.55 1.00 1.00 1.62 3.85 8.75 1.21 1.06 1.94 0.50 2.44 0.53 1.75 1.88
5/8 CX04-0044 1035018 9.70 CX04-0052 1035573 1.79 8.16 4.36 1.25 1.19 2.12 4.58 10.34 1.64 1.22 2.25 0.56 3.13 0.69 2.00 2.19
3/4 CX04-0045 1035027 14.50 CX04-0053 1035582 2.60 9.78 4.81 1.50 1.38 2.44 5.37 12.03 2.17 1.40 2.62 0.66 3.63 0.78 2.34 2.56
7/8 CX04-0046 1035036 21.50 CX04-0054 1035591 4.02 11.16 4.65 1.75 1.63 2.69 6.28 14.00 2.22 1.66 3.12 0.75 4.19 0.88 2.69 2.94
1 CX04-0047 1035045 30.75 CX04-0055 1035600 5.37 12.75 5.08 2.00 2.00 2.56 7.02 15.86 2.71 2.00 3.75 0.88 4.63 1.03 2.88 3.28
1-1/8 CX04-0048 1035054 45.30 CX04-0056 1035609 7.84 14.38 5.51 2.25 2.25 3.31 7.76 17.70 2.50 2.25 4.25 1.00 5.38 1.19 3.13 3.56
**1-1/4 CX04-0049 1040448 57.50 CX04-0057 1040607 6.81 16.00 7.94 2.50 2.50 3.56 N/A N/A 3.39 2.50 4.75 1.12 5.81 1.31 3.38 3.81

* Terminator Assembly includes Socket, Wedge, Pin, and Wire Rope Clip.
** 1-1/4” not available in TERMINATOR style.
† Nominal.
†† Weight of socket, wedge, and pin.
Wedge socket meets the performance requirements of Federal Specification
RR-S-550D Type C, except those provisions required of the contractor.
‡ For intermediate wire rope sizes use next larger size socket.

• Loads may slip or fall if the Wedge Socket is not properly installed.
• A falling load can seriously injure or kill.
• Read and understand these instructions before installing the Wedge Socket.
• Do not side load the Wedge Socket.
• Apply first load to fully seat the Wedge and Wire Rope in the socket.
This load should be of equal or greater weight than loads expected in use.

Wire Rope Terminations Information

• The tail, which is secured by the base of the clip and the wedge, is left undeformed and available for reuse
• Incorporates Crosby’s patented QUICK-CHECK “Go” and “No-Go” feature cast into the wedge. The proper size rope is determined when the following criteria are met:
1. The wire rope should pass through the “Go” hole in the wedge.
2. The wire rope should NOT pass through the “No-Go” hole in the wedge.
• Utilizes standard Crosby Red-U-Bolt® wire rope clip.
• Generates a minimum efficiency of 80% based on the catalog breaking strength of wire rope.
• Standard S-421 wedge sockets can be retrofitted with the new style TERMINATOR™ wedge.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
