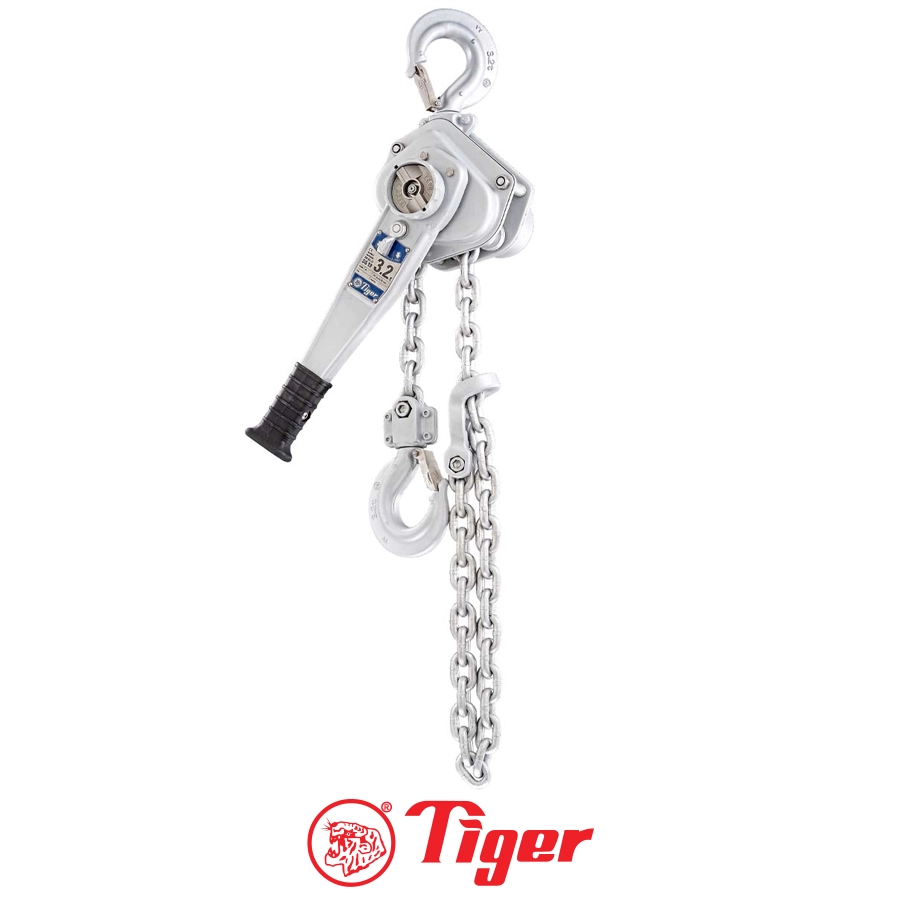

Tiger SS19 Subsea Lever Hoist

Tiger SS19 Subsea Lever Hoist
  • Suitable for use in multi-immersion applications
  • DNV GL Verification tested according to NORSOK R-002
  • 800kg, 1.6t, 3.2t, 6.3t, 8.0t, 10.0t, 15.0t and 20.0t capacities available
  • Equipped with our unique intelligent dual brake system:
    • Globally patent protected Quad Cam pawl and ratchet design
    • Unique load sensing torsion brake
  • Thousands of hours of empirical evidence as proof of design
  • DU® self-lubricating metal polymer bearings
  • Phosphor bronze bearings
  • One-piece construction pinion gear
  • Meets and exceeds IMCA DO28 Rev 2 guidance notes for offshore lever hoists
  • Light load protection at 2% of the rated capacity
  • Adaptable to use both inverted and horizontally
  • Full face gasket provides brake chamber protection from outside contamination
  • Fully Corrosion protected body and components to ensure reliable long-term use
  • Over 1500 hours protection to ASTM B117 conditions
  • Adjustable chain end anchorage specifically designed to the contours of the hoist
  • Available with slipping clutch overload protection
  • Fleeting angles up to 60° from the vertical without deration

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Stock Number Capacity (tonne) Effort (kg) Load Chain Diameter (mm) Load Chain No. of Falls Standard HOL (m) Mass Kg @ Std HOL Mass for Extra Metre HOL (kg)
SS-0080 0.8 23 6.3 1 3 9.0 0.9
SS-0160 1.6 28 7.1 1 3 12.5 1.1
SS-0320 3.2 40 10.0 1 3 22.0 2.2
SS-0630 6.3 42 10.0 2 3 34.5 4.3
SS-0800 8.0 38 10.0 3 3 52.0 6.5
SS-1000 10.0 47 10.0 3 3 55.0 6.5
SS-1500 15.0 44 10.0 5 3 128.0 10.8
SS-2000 20.0 49 10.0 6 3 174.0 13.1

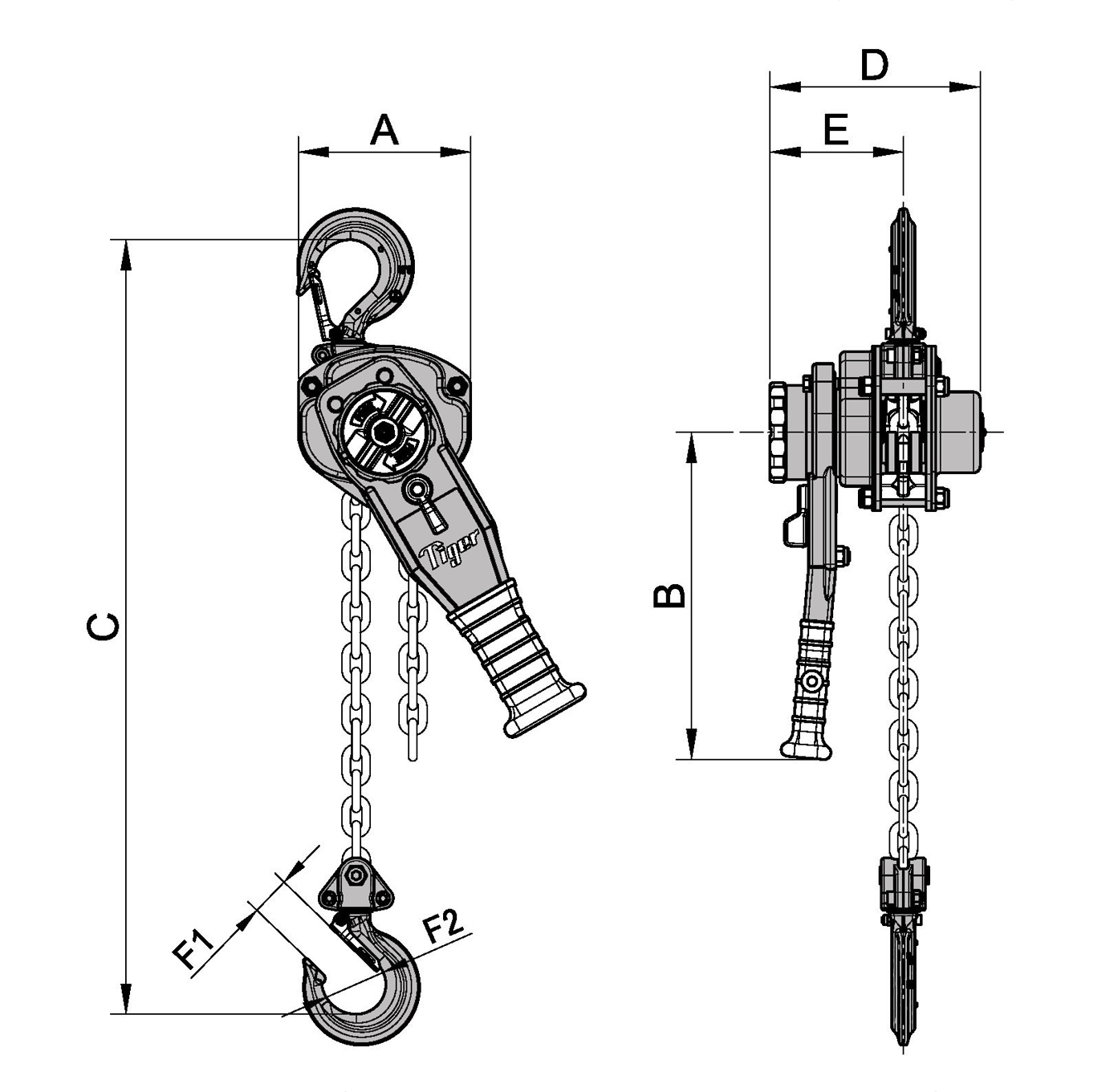

STOCK NUMBER DIMENSIONS
A B C D E F1 F2
SS-0080 128 243 295 158 99 28 45
SS-0160 154 370 320 172 104 34 51
SS-0320 182 370 400 195 108 36 56
SS-0630 242 370 570 195 108 49 70
SS-0800 379 370 580 195 108 51 78
SS-1000 379 370 630 195 108 54 87
SS-1500 566 370 840 195 108 59 81
SS-2000 470 370 1050 250 160 81 110

Stock Number Capacity (Tonne) Collar Measurements (mm) Hook Thickness at Point Shown In Diagram (mm) Hook Throat Opening (mm) “EZ Check” Measurement (mm)
A B C D E F
SS-0080 0.8 8 13.5 23 17 34 52
SS-0160 1.6 10 15.5 26 21 39 59
SS-0320 3.2 12.5 20 37 32 42 76
SS-0630 6.3 19 30 43 36 57 86
SS-0800 8.0 20.7 33 50 43 60 110
SS-1000 10.0 20 33 52 48 70 121
SS-1500 15.0 N/A 36 67 60 65 130
SS-2000 20.0 N/A 48 77 72 90 162

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
