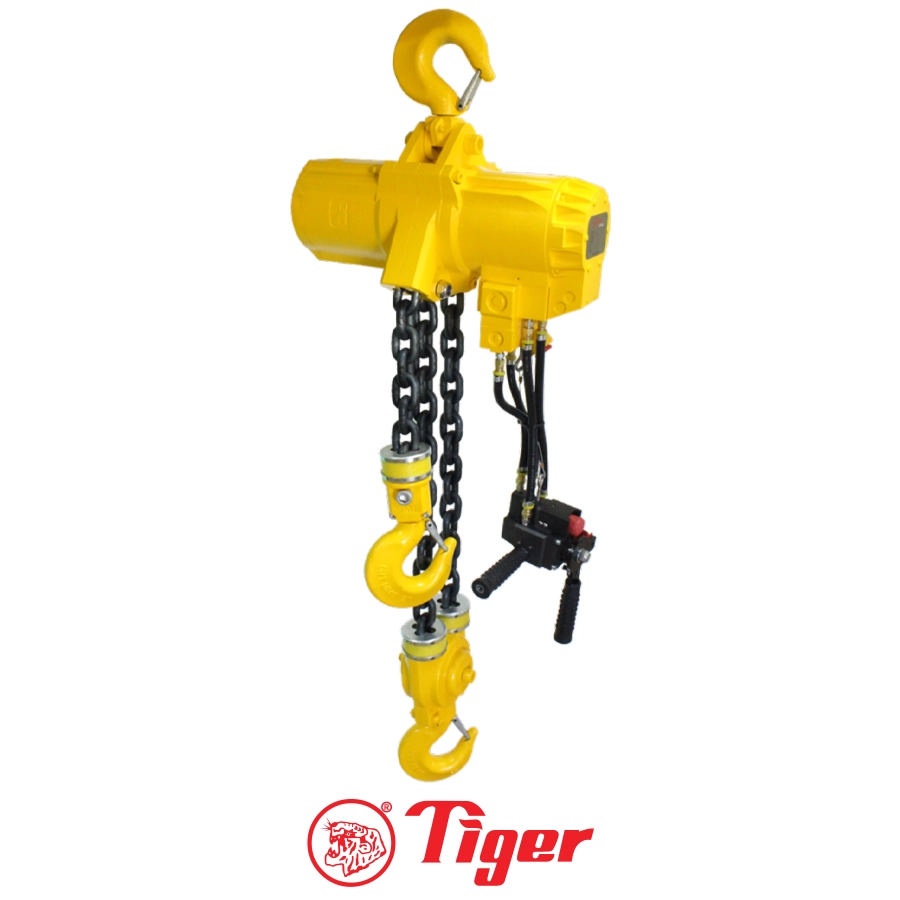

Tiger TAH-M Twin Hook Air Hoist

Tiger TAH-M Twin Hook Air Hoist
  • TAH21M 2.0t/2.0t configuration
  • TAH33M 3.0t/3.0t and 3.0t/6.0t configurations
  • Two chain falls with hooks for alternate working
  • Various hook options – standard, closed eye, grab and self-locking
  • Integral load limiter
  • Especially suitable for horizontal pulling
  • Reliable, fast, efficient, quiet and lightweight
  • Greater than 5:1 factor of safety
  • Certified for ATEX Category 3 – normal safety

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

STOCK NUMBER LIFTING CAPACITY (TONNE) FALLS OF CHAIN CHAIN SIZE (mm) TOTAL WEIGHT (kg) FULL LOAD LIFTING SPEED (m/min) @ 6 bar FULL LOAD LIFTING SPEED (m/min) @ 4 bar NO LOAD LIFTING SPEED (m/min) @ 6 bar FULL LOAD LOWERING SPEED (m/min) @ 6 bar NO LOAD LOWERING SPEED (m/min) @ 6 bar AIR CONSUMPTION (m3/min) @ 6 bar AIR CONSUMPTION (m3/min) @ 4 bar TOGGLE & PILOT PENDANT CONTROL E/STOP PILOT PENDANT CONTROL SUPPLY HOSE (Inside ø) (mm) SOUND LEVEL (dB(A)) FULL LOAD LIFTING @ 6 bar SOUND LEVEL (dB(A)) FULL LOAD LOWERING @ 6 bar
AHM-021 2.0/2.0 1/1 10 X 28 66.0 4.7 2.6 7.0 7.5 5.9 2.6 1.7 G ¾ G ¾ 19 83 83
AHM-030 3.0/3.0 1/1 13 X 36 82.0 4.9 3.2 6.4 7.0 5.4 4.0 2.6 G ¾ G ¾ 25 83 83
AHM-063 3.0/6.0 1/2# 13 X 36 102.0 4.9/2.4 3.2/1.6 6.4/3.2 7.0/3.5 5.4/2.7 4.0 2.6 G ¾ G ¾ 25 83 83

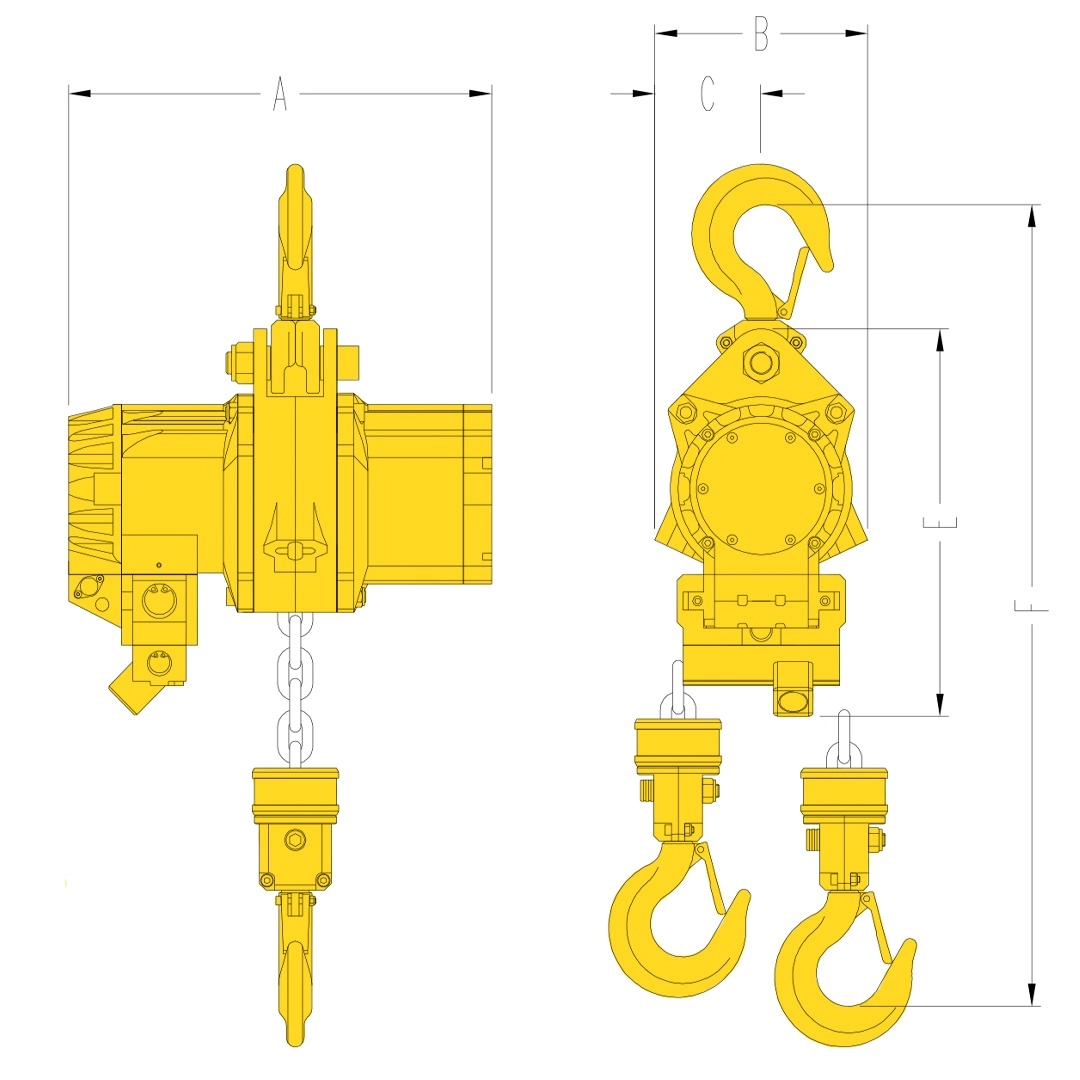

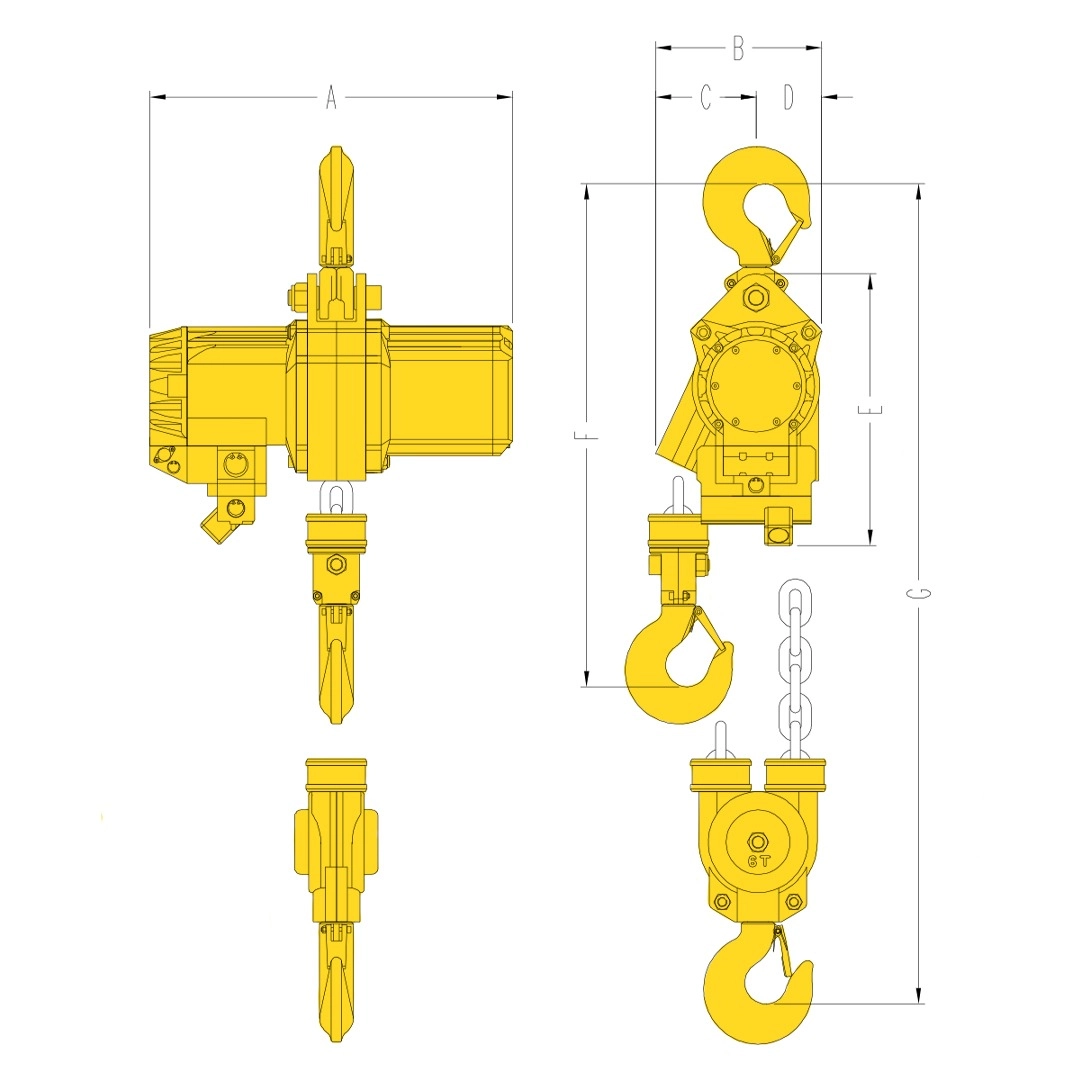

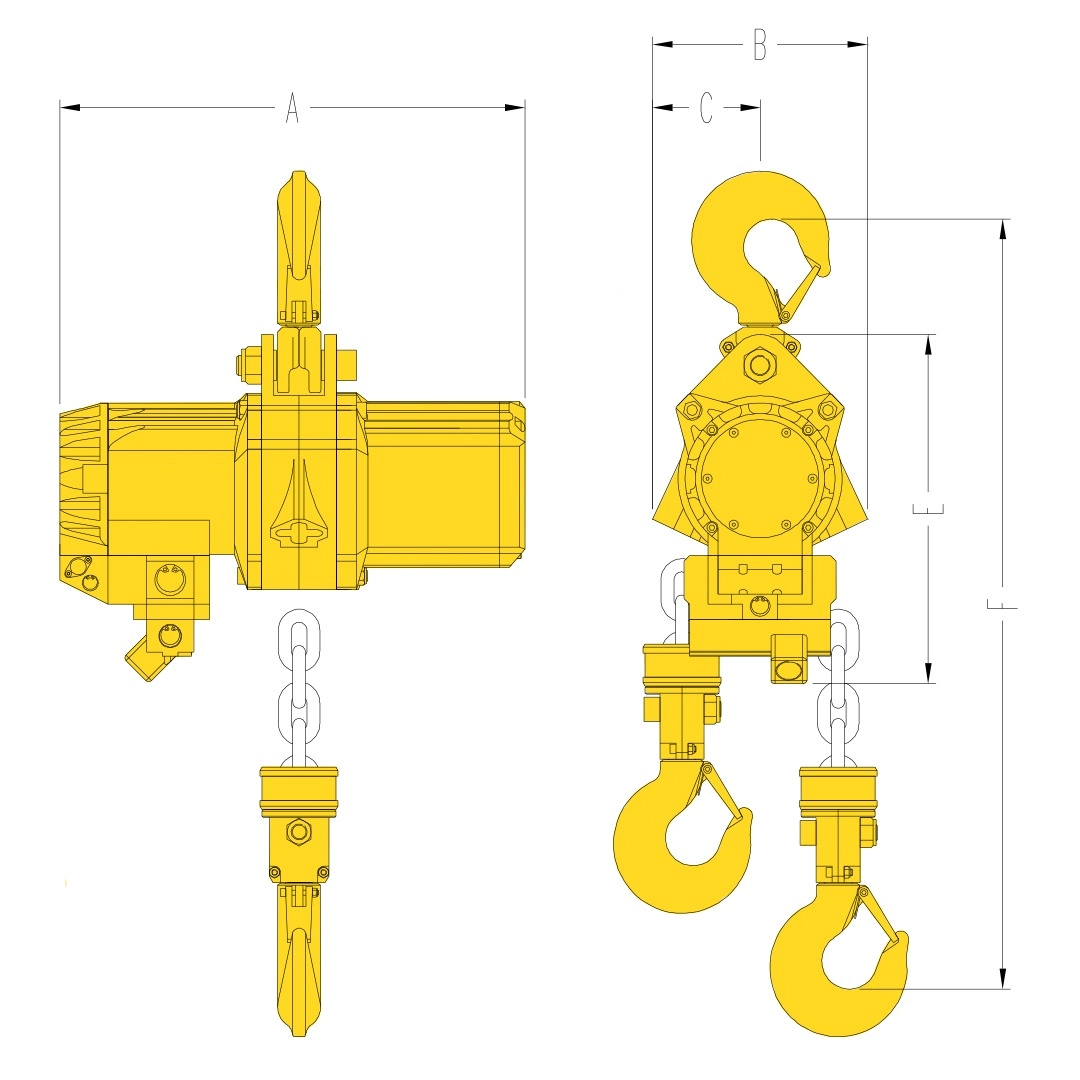

STOCK NUMBER DIMENSIONS
A B C D E F (MIN) G(MIN)
AHM-021 382 192 96 – 345 537 –
AHM-030 466 215 108 – 345 548 –
AHM-063 466 215 130 85 345 599 689

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
