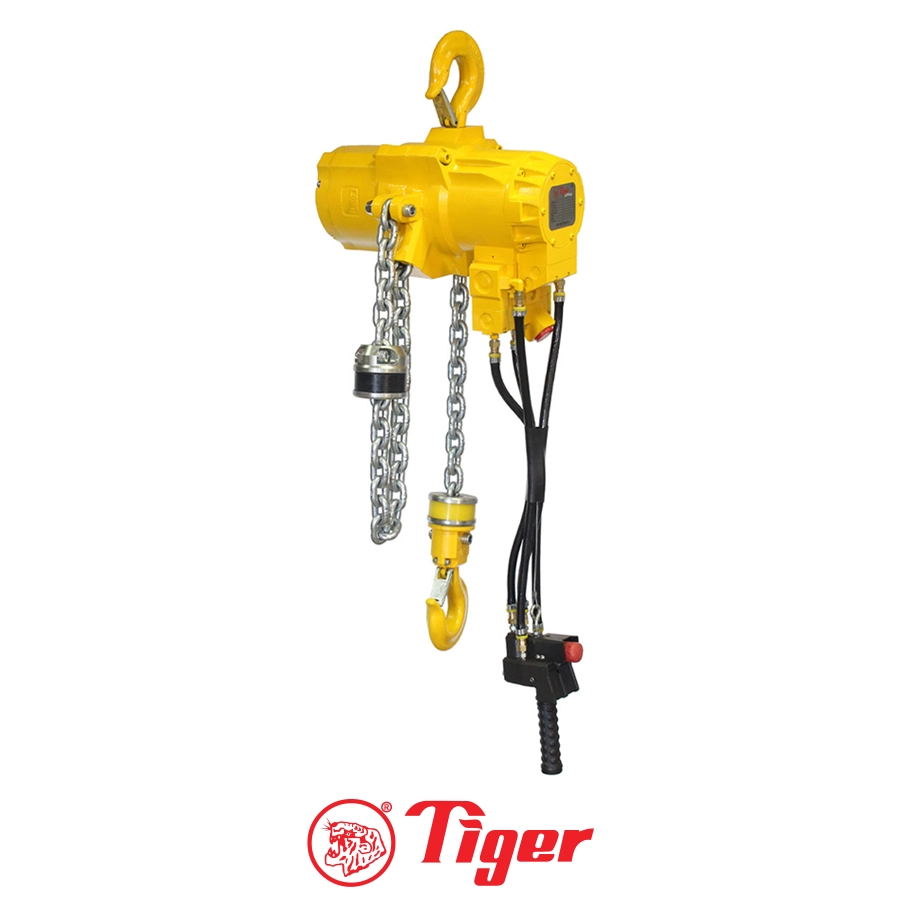

Tiger TAH21 Pneumatic Air Hoist 1.5t – 3t

Tiger TAH21 Pneumatic Air Hoist 1.5t – 3t
  • Range – 1.5 tonne to 3.0 tonne
  • Reliable, fast, efficient, quiet and lightweight
  • Greater than 5:1 factor of safety
  • Suitable for Fleeting/Oblique pulling
  • Certified for ATEX Category 3 – normal safety

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
STOCK NUMBER LIFTING CAPACITY (TONNE) FALLS OF CHAIN CHAIN SIZE (mm) TOTAL WEIGHT (kg) FULL LOAD LIFTING SPEED (m/min) @ 6 bar FULL LOAD LIFTING SPEED (m/min) @ 4 bar NO LOAD LIFTING SPEED (m/min) @ 6 bar FULL LOAD LOWERING SPEED (m/min) @ 6 bar NO LOAD LOWERING SPEED (m/min) @ 6 bar AIR CONSUMPTION (m3/min) @ 6 bar AIR CONSUMPTION (m3/min) @ 4 bar TOGGLE & PILOT PENDANT CONTROL E/STOP PILOT PENDANT CONTROL SUPPLY HOSE (Inside ø) (mm) SOUND LEVEL (dB(A)) FULL LOAD LIFTING @ 6 bar SOUND LEVEL (dB(A)) FULL LOAD LOWERING @ 6 bar
AH-015 1.5 1 10 X 28 55 6.2 4.2 8.7 8.6 7.5 2.6 1.7 G ¾ G ¾ 19 81 83
AH-021 2.0 1 10 X 28 55 5.3 3.0 8.7 9.0 7.5 2.6 1.7 G ¾ G ¾ 19 81 83
AH-032 3.0 2 10 X 28 67 3.1 2.1 4.3 4.3 3.7 2.6 1.7 G ¾ G ¾ 19 81 83

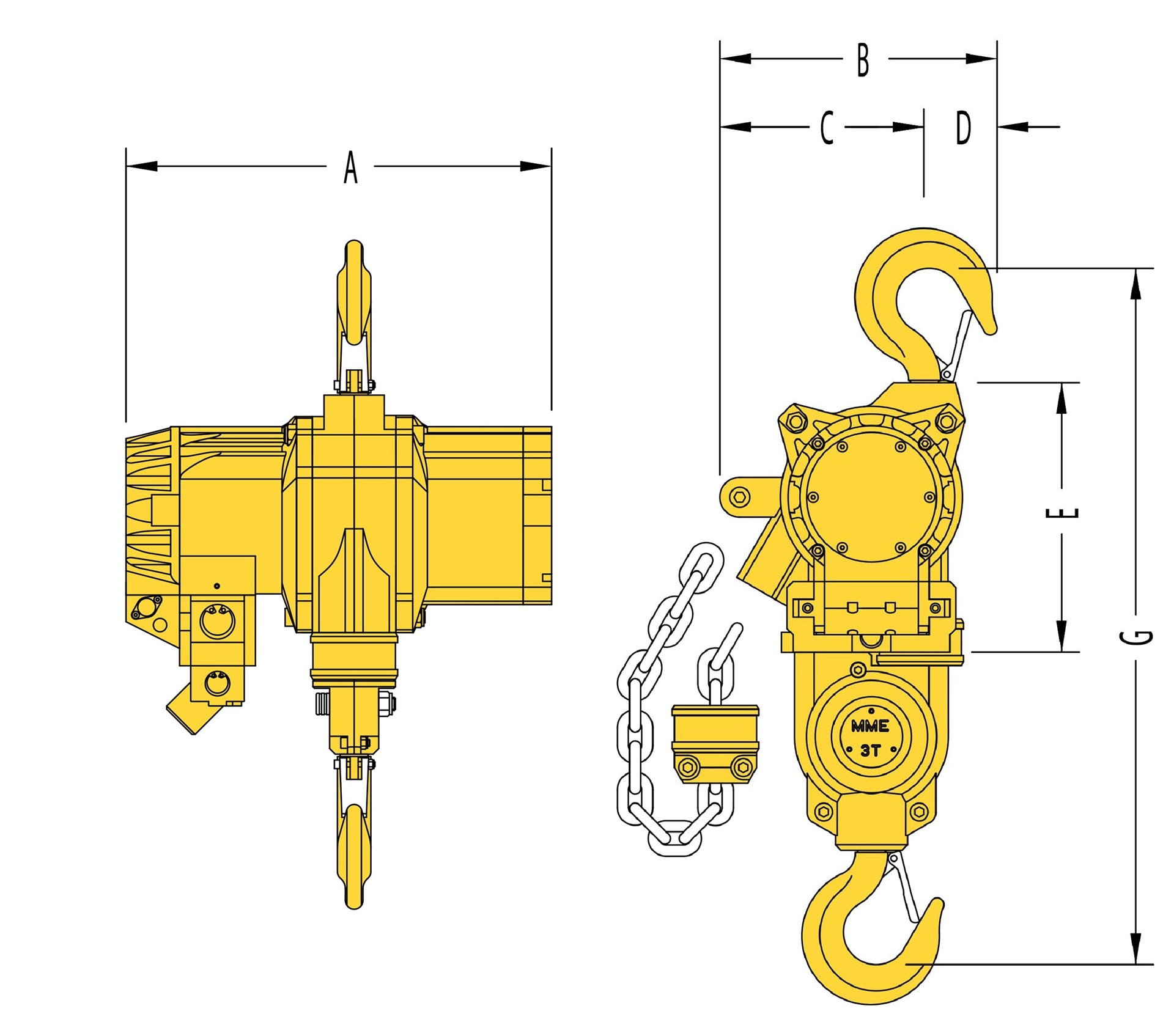

STOCK NUMBER DIMENSIONS
A B C D E F (MIN) G(MIN)
AH-015 382 250 184 66 213 515 –
AH-021 382 250 184 66 213 515 –
AH-032 382 250 184 66 213 – 610

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
