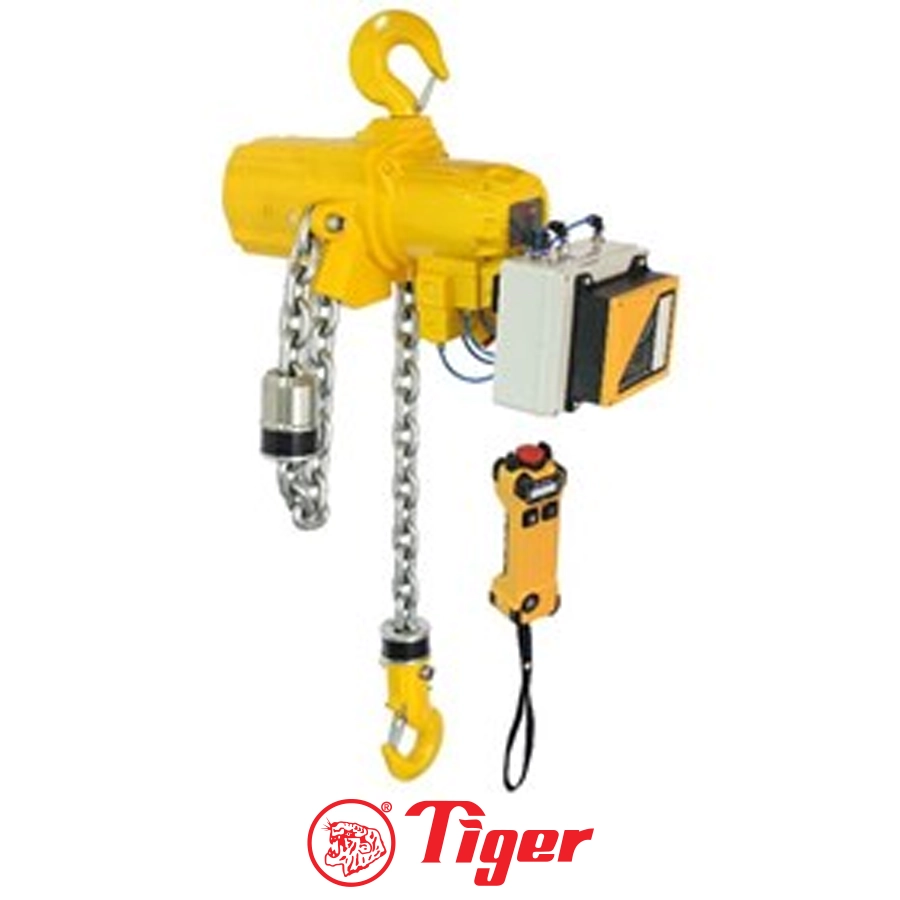

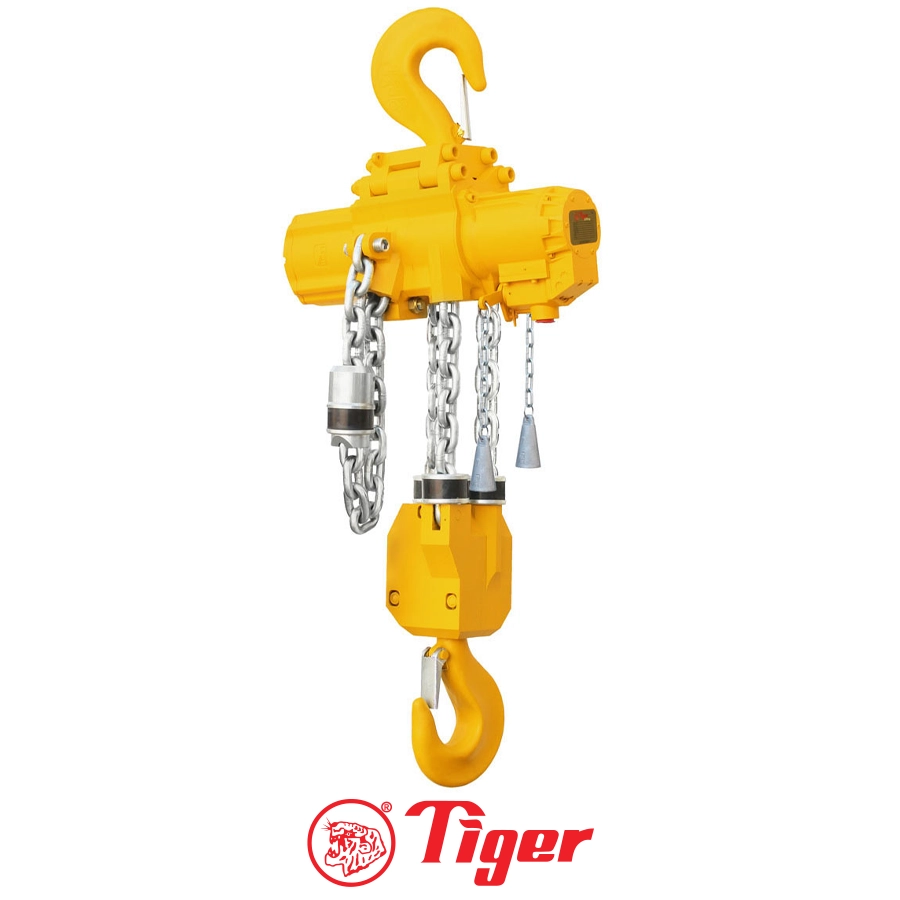

Tiger TAH52 Pneumatic Air Hoist 5t – 20t

Tiger TAH52 Pneumatic Air Hoist 5t – 20t
  • Range – 5.0 tonne to 20.0 tonne
  • Reliable, fast, efficient, quiet and lightweight
  • Greater than 5:1 factor of safety
  • Suitable for Fleeting/Oblique pulling
  • Certified for ATEX Category 3 – normal safety

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

STOCK NUMBER LIFTING CAPACITY (TONNE) FALLS OF CHAIN CHAIN SIZE (mm) TOTAL WEIGHT (kg) FULL LOAD LIFTING SPEED (m/min) @ 6 bar FULL LOAD LIFTING SPEED (m/min) @ 4 bar NO LOAD LIFTING SPEED (m/min) @ 6 bar FULL LOAD LOWERING SPEED (m/min) @ 6 bar NO LOAD LOWERING SPEED (m/min) @ 6 bar AIR CONSUMPTION (m3/min) @ 6 bar AIR CONSUMPTION (m3/min) @ 4 bar TOGGLE & PILOT PENDANT CONTROL E/STOP PILOT PENDANT CONTROL SUPPLY HOSE (Inside ø) (mm) SOUND LEVEL (dB(A)) FULL LOAD LIFTING @ 6 bar SOUND LEVEL (dB(A)) FULL LOAD LOWERING @ 6 bar
AH-050 5.0 1 16 X 45 106 3.0 1.9 4.0 4.4 3.3 4.0 2.6 G ¾ G ¾ 25 82 83
AH-102 10.0 2 16 X 45 152 1.5 0.9 2.0 2.2 1.7 4.0 2.6 G ¾ G ¾ 25 82 83
AH-160 16.0 3 16 X 45 245 0.9 0.6 1.1 1.3 1.0 4.0 2.6 G ¾ G ¾ 25 82 83
AH-200 20.0 4 16 X 45 288 0.7 0.4 0.9 1.0 0.8 4.0 2.6 G ¾ G ¾ 25 82 83

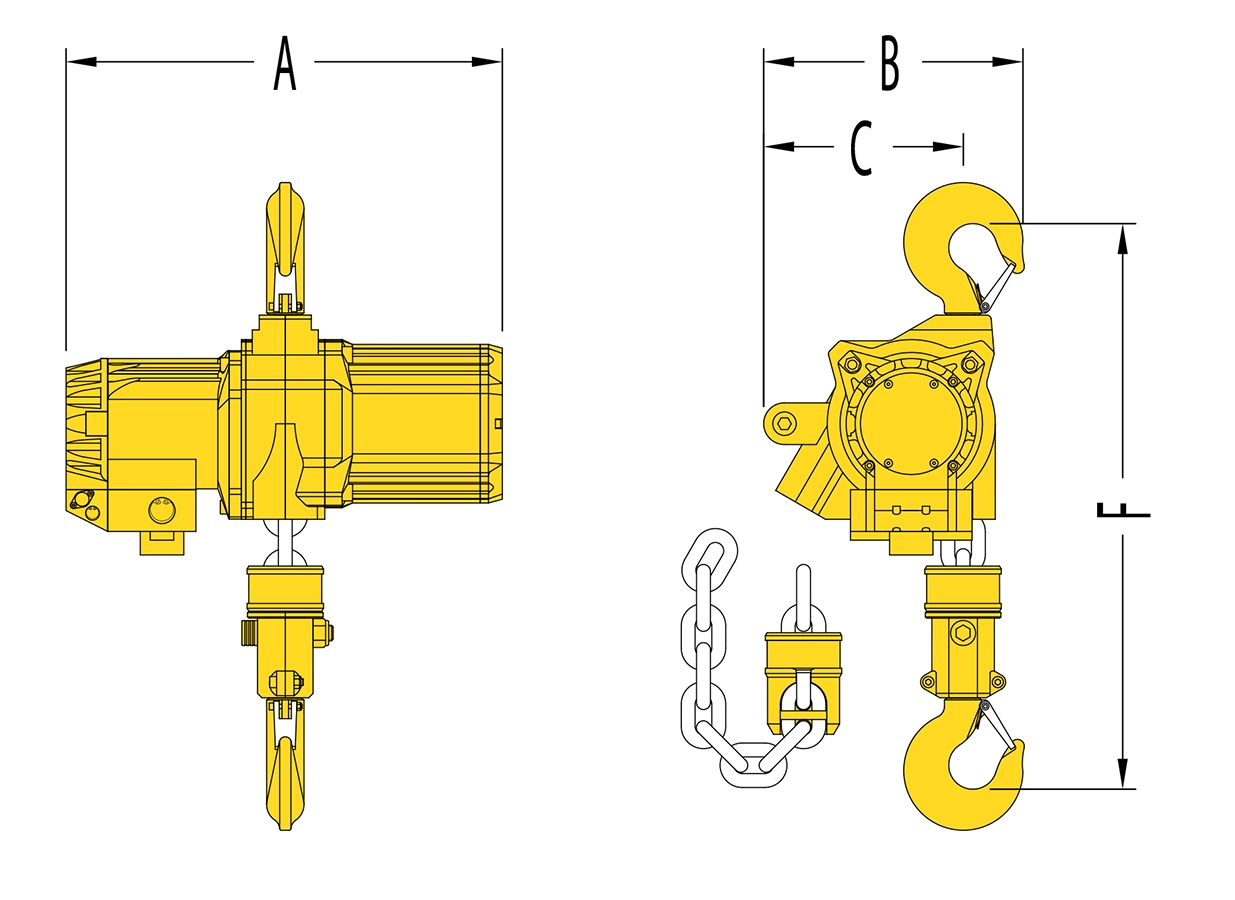

STOCK NUMBER DIMENSIONS
A B C D E F (MIN) G(MIN)
AH-050 503 300 230 – – 600 –
AH-102 503 270 170 100 286 – 790
AH-160 616 290 180 110 325 – 905
AH-200 616 280 165 115 325 – 920

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
