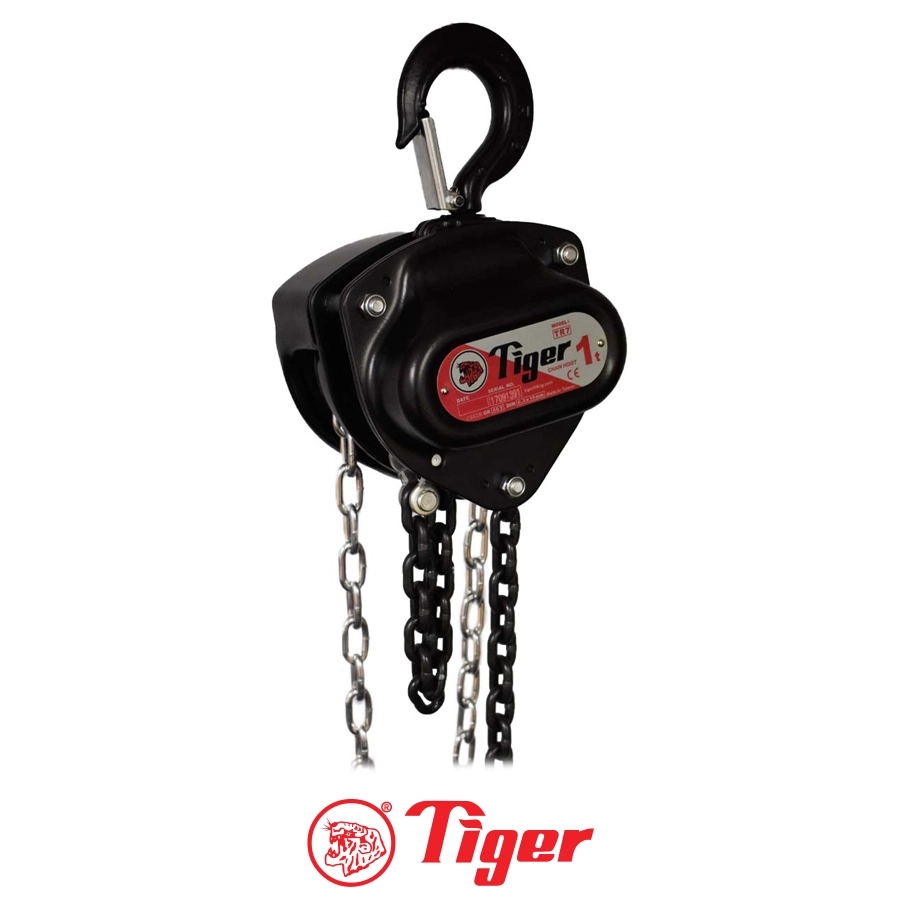

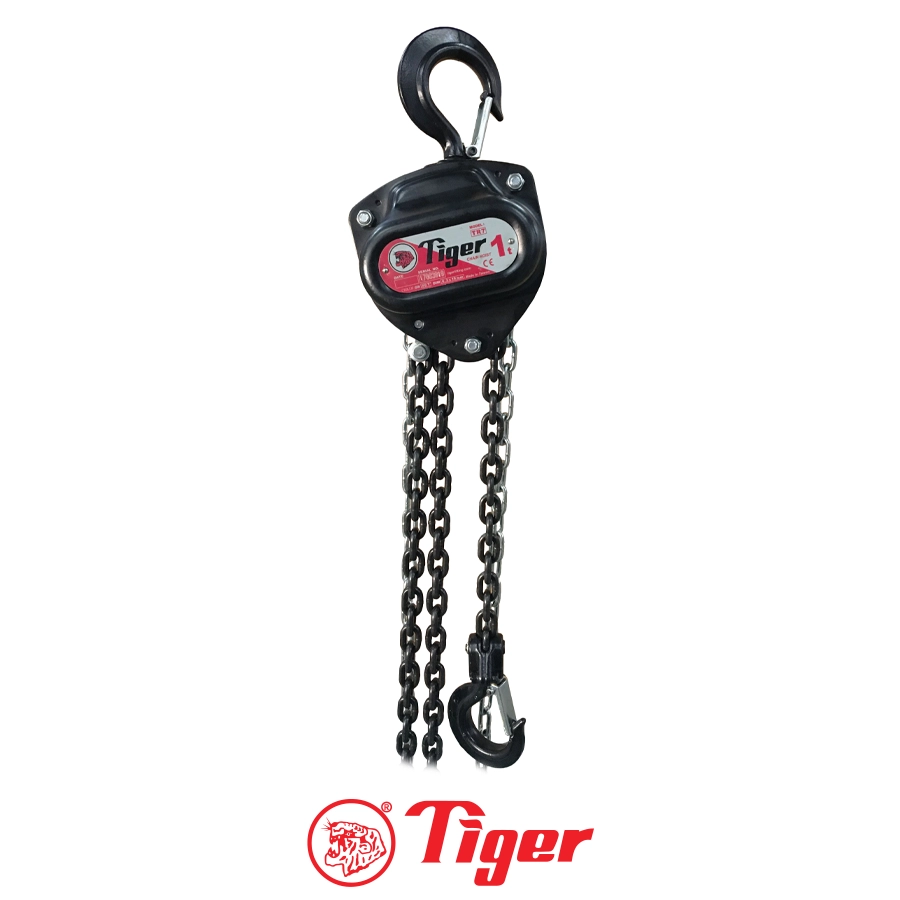

Tiger TRCB Industrial Chain Block

Tiger TRCB Industrial Chain Block
  • Range from 500kg – 5.0t
  • Meets or exceeds all international standards
  • High quality alloy calibrated load chain
  • Rugged steel body construction

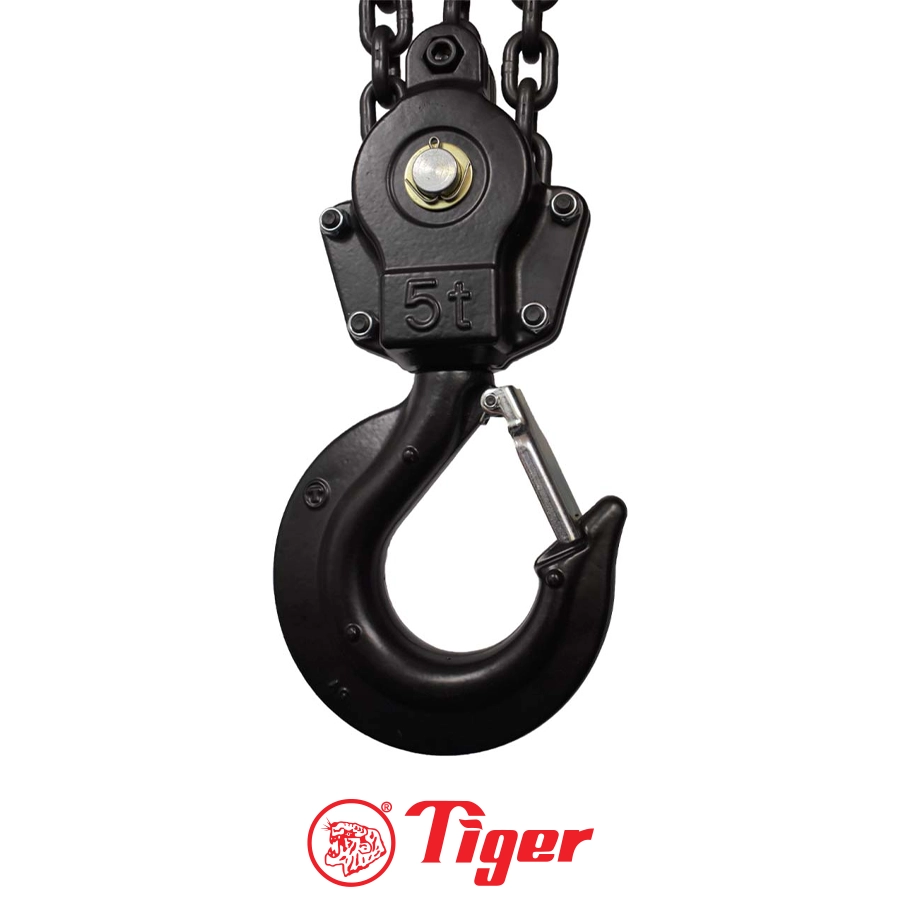

  • Drop forged & heat-treated alloy hooks
  • Proof tested to 1.5 times rated capacity
  • Lightweight and portable
  • Safe reliable twin pawl mechanical brake
  • Guaranteed light load protection

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Stock Number Capacity (tonne) Effort (kg) Load Chain Diameter (mm) Load Chain No. of Falls Standard HOL (m) Mass Kg @ Std HOL Mass for Extra Metre HOL (kg)
TRC-0050 0.5 21 6.3 1 3 10.5 1.9
TRC-0100 1.0 25 6.3 1 3 11.5 1.9
TRC-0150 1.5 32 7.1 1 3 16.0 2.1
TRC-0200 2.0 34 8.0 1 3 20.0 2.4
TRC-030T 3.0 34 7.1 2 3 23.0 3.2
TRC-0500 5.0 37 8.0 3 3 37.5 5.2

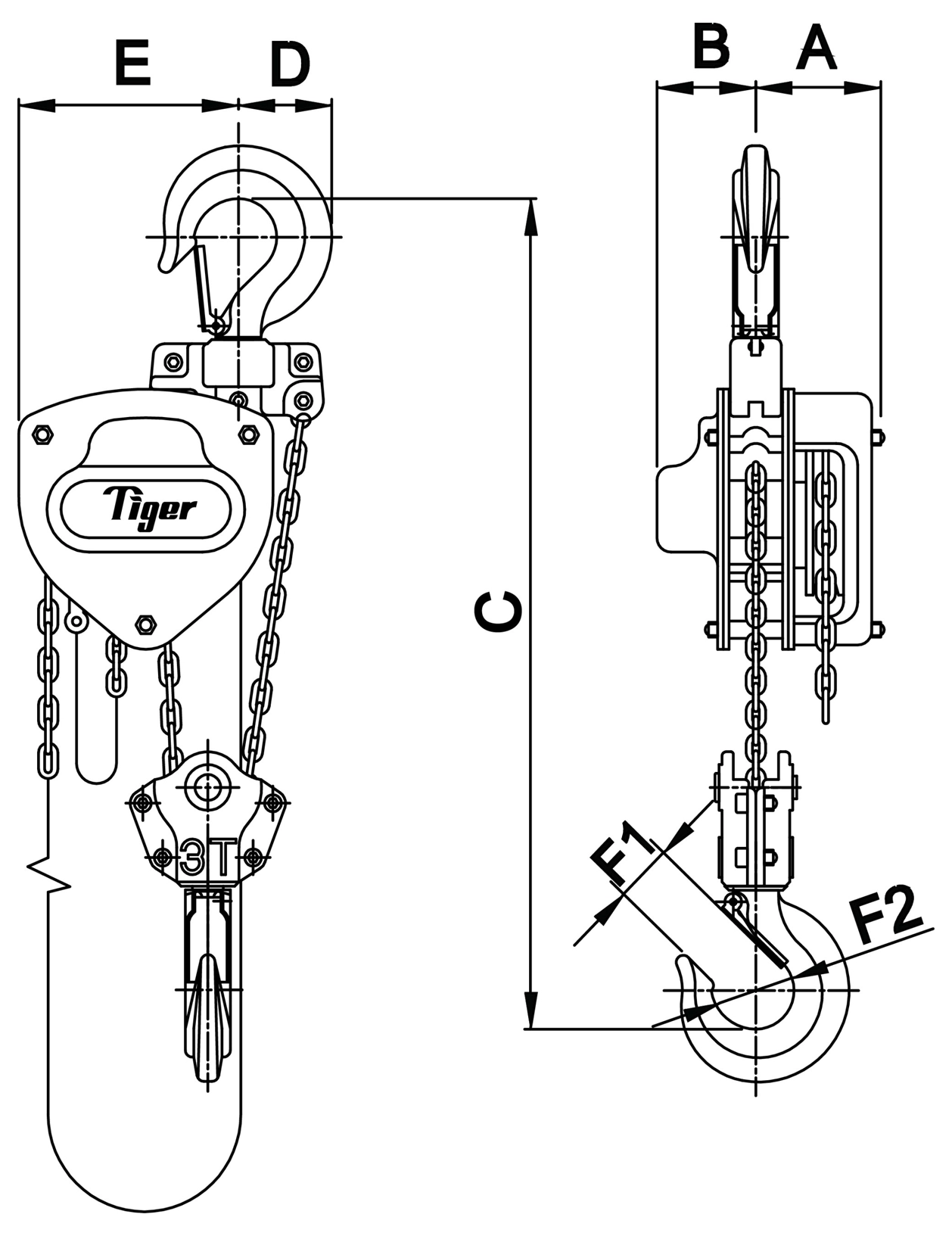

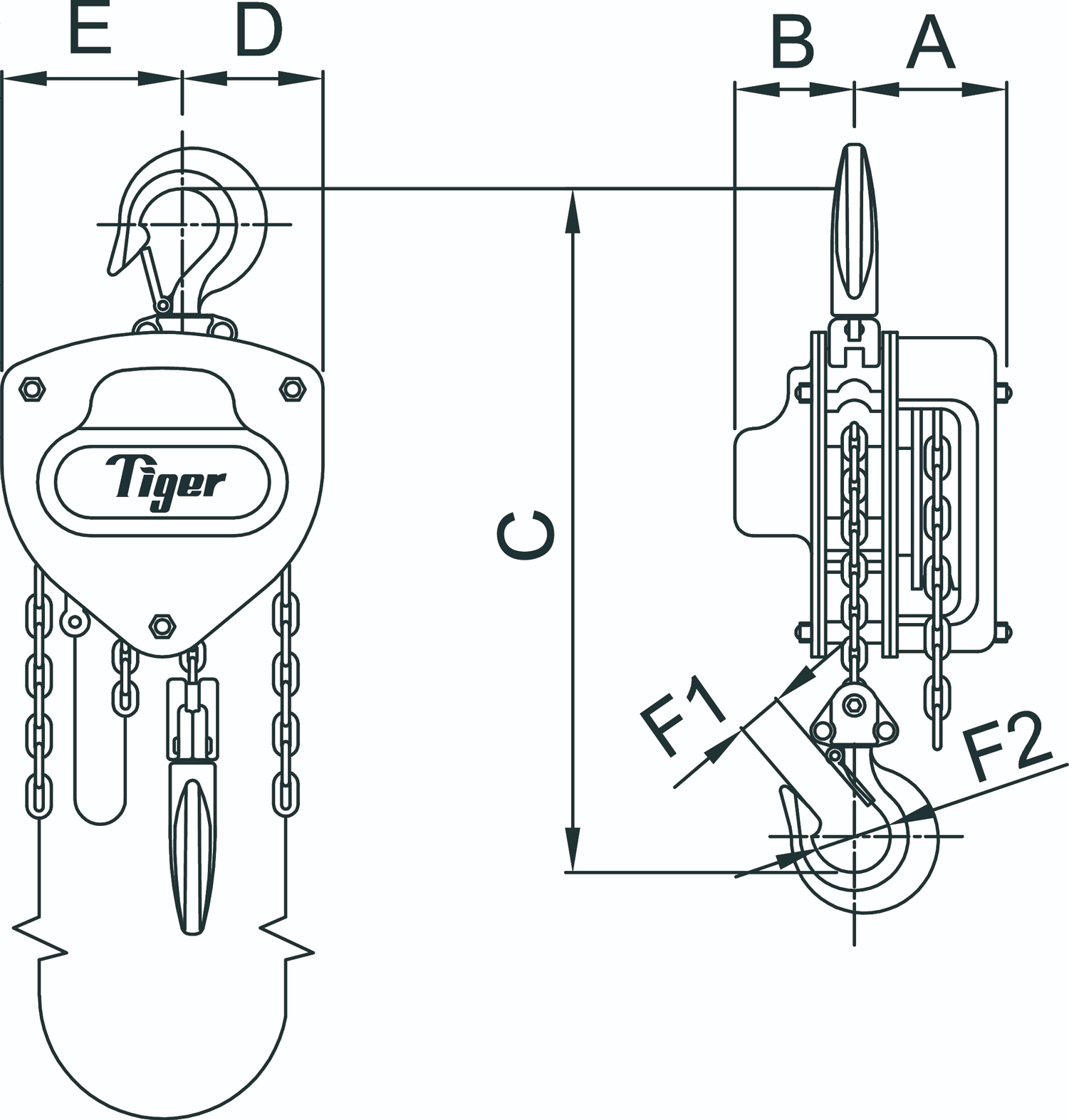

STOCK NUMBER DIMENSIONS
A B C D E F1 F2
TRC-0050 93 66 305 52 78 24 38
TRC-0100 93 66 340 63 87 28 45
TRC-0150 98 73 385 78 102 34 51
TRC-0200 101 79 420 87 113 35 53
TRC-030T 98 73 488 60 148 36 56
TRC-0500 101 79 575 122 209 49 70

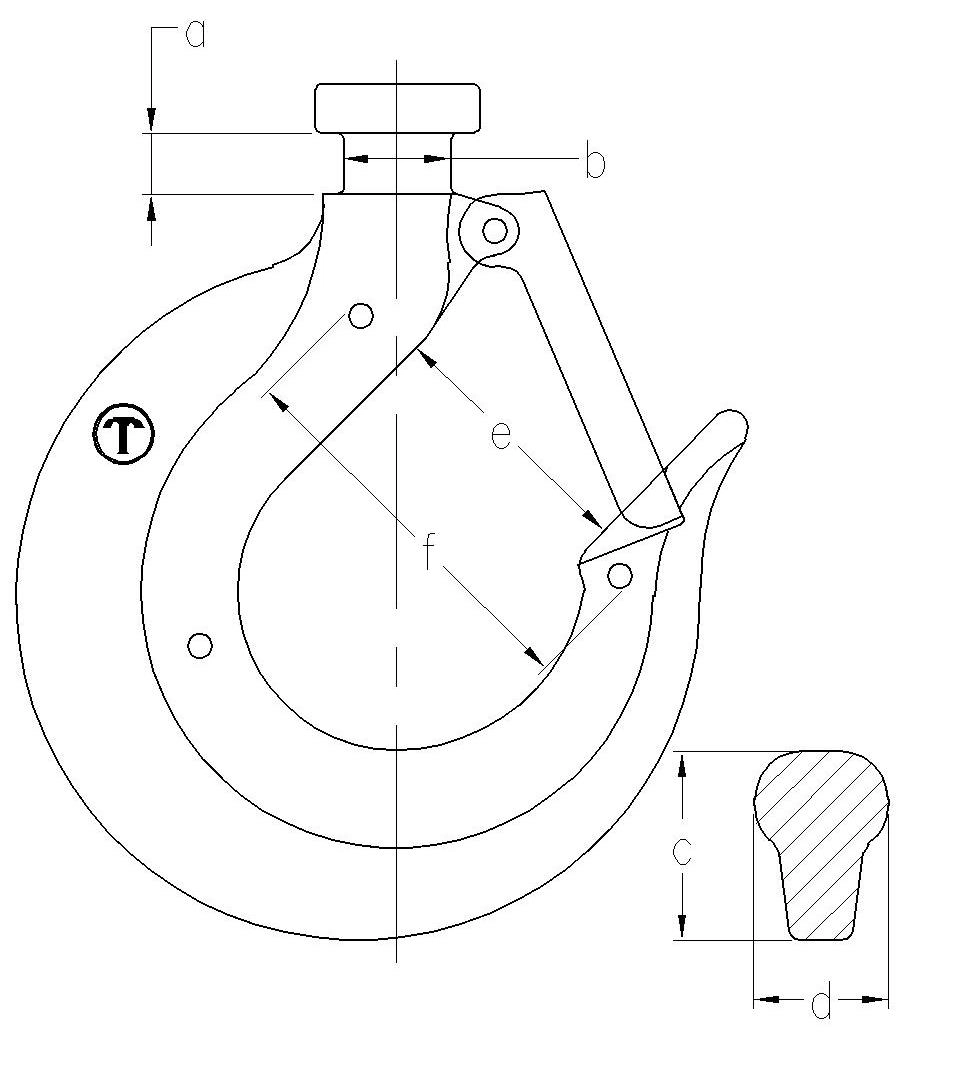

Stock Number Capacity (Tonne) Collar Measurements (mm) Hook Thickness at Point Shown In Diagram (mm) Hook Throat Opening (mm) “EZ Check” Measurement (mm)
A B C D E F
TRC-0050 0.5 8 13.5 19 15 29 47
TRC-0100 1.0 8 13.5 23 17 34 52
TRC-0150 1.5 10 15.5 26 21 39 59
TRC-0200 2.0 9 17.5 30 22 42 64
TRC-0300 3.0 12.5 20 37 32 42 76
TRC-0500 5.0 19 30 43 36 57 86

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
