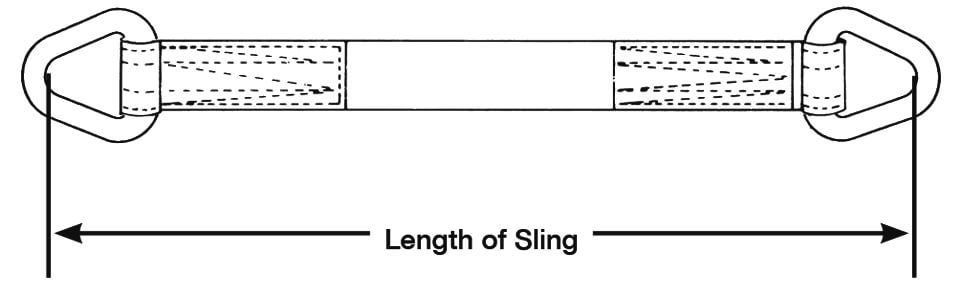

Triangle/Triangle Type 2

Triangle/Triangle Type 2

End fittings are steel or aluminum designed to be used in only a vertical or basket hitch.

CERTEX Cat. Ref. No. Triangle/Choker Type Width Vertical Choker Basket
CX07-0070 CTT1-92 2” 3100 2500 6200
CX07-0072 CTT2-92 2” 6200 5000 12400
CX07-0074 CTT1-93 3” 4700 3700 9400
CX07-0076 CTT2-93 3” 8400 6700 16800
CX07-0078 CTT1-94 4” 6200 5000 12400
CX07-0080 CTT2-94 4” 11200 9000 22400
CX07-0082 CTT1-96 6” 9300 7400 18600
CX07-0084 CTT2-96 6” 16500 13200 33000
CX07-0085 CTT1-98 8” 12400 9920 24800
CX07-0086 CTT2-98 8” 22000 17600 44000
CX07-0087 CTT1-910 10” 15500 12400 31000
CX07-0088 CTT2-910 10” 27500 22000 55000
CX07-0089 CTT1-912 12” 18500 14800 37000
CX07-0090 CTT2-912 12” 32000 25600 64000

CAUTION: Do not use aluminum fittings where acids, alkalis or other corrosive agents are present.
The above capacities are for steel hardware only. Aluminum hardware may only be used with single ply web slings.
Capacities shown represent minimum values. For actual rated capacities consult your local CERTEX branch.

WARNING: Failure to read, understand and follow the use and inspection instructions could result in severe personal injury or death. Do not exceed rated capacities.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
