McKissick® UB500 Series Top Swiveling Overhaul Balls with S316A SHUR-LOC® Eye Hook

McKissick® UB500 Series Top Swiveling Overhaul Balls with S316A SHUR-LOC® Eye Hook
  • The top swivel design on the UB500 assures the ball remains stationary if the wire line spins.
  • The swivel incorporates a sealed roller thrust bearing together with a grease fitting for easy lubrication.
  • Each ball can be equipped with the new McKissick US422 Wedge & Socket which can be easily adjusted to fit various sizes of wire rope by changing the wedge (Ensure that correct wedge is used for selected wire rope size).
  • All hooks used on UB500 Overhaul Balls (S320, S320N & S316A) are forged from alloy steel. The S320 and S320N hooks come complete with latches.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Overhaul Ball Assembly Optional US-422 Wedge & Socket Assembly
McKissick UB500 UB500 “S” SHUR-LOC® Working Load Limit (tons) Weight Each (lbs.) Wire Rope Size (in.) US-422 Weight Each (lbs.)
CERTEX Cat. Ref. No. McKissick Model No. CERTEX Cat. Ref. No. Crosby Stock No. Model No. CERTEX Cat. Ref. No. Crosby Stock No.
CX13-0500 MB4T35 CX13-0562 1036005 4 58 3/8 US4 CX13-0575 1038499 4.6
CX13-0501 MB4T85 CX13-0563 1036018 4 102 7/16 US4 CX13-0576 1038503 4.6
CX13-0502 MB4T150 CX13-0564 1036032 4 162 1/2 US4 CX13-0577 1038508 4.6
CX13-0503 MB4T200 CX13-0565 1036041 4 201 1/2 US5 CX13-0578 1038517 8.5
CX13-0504 MB7T85 CX13-0566 1036050 7 109 9/16 US5 CX13-0579 1038526 8.5
CX13-0505 MB7T150 CX13-0567 1036063 7 170 5/8 US5 CX13-0580 1038535 8.5
CX13-0506 MB7T200 CX13-0568 1036077 7 210 5/8 US6 CX13-0581 1038544 9.4
CX13-0507 MB7T285 CX13-0569 1036086 7 321 3/4 US6 CX13-0582 1038533 9.4
CX13-0508 MB10T150 CX13-0570 1036095 10 216
CX13-0509 MB10T200 CX13-0571 1036108 10 260
CX13-0510 MB10T285 CX13-0572 1036122 10 365 5/8 US6 CX13-0583 1038544 9.4
CX13-0511 MB10T350 CX13-0573 1036131 10 403 3/4 US6 CX13-0584 1038553 9.4
CX13-0512 MB10T650 CX13-0574 1036140 10 718 7/8 US8 CX13-0585 1038598 20.8

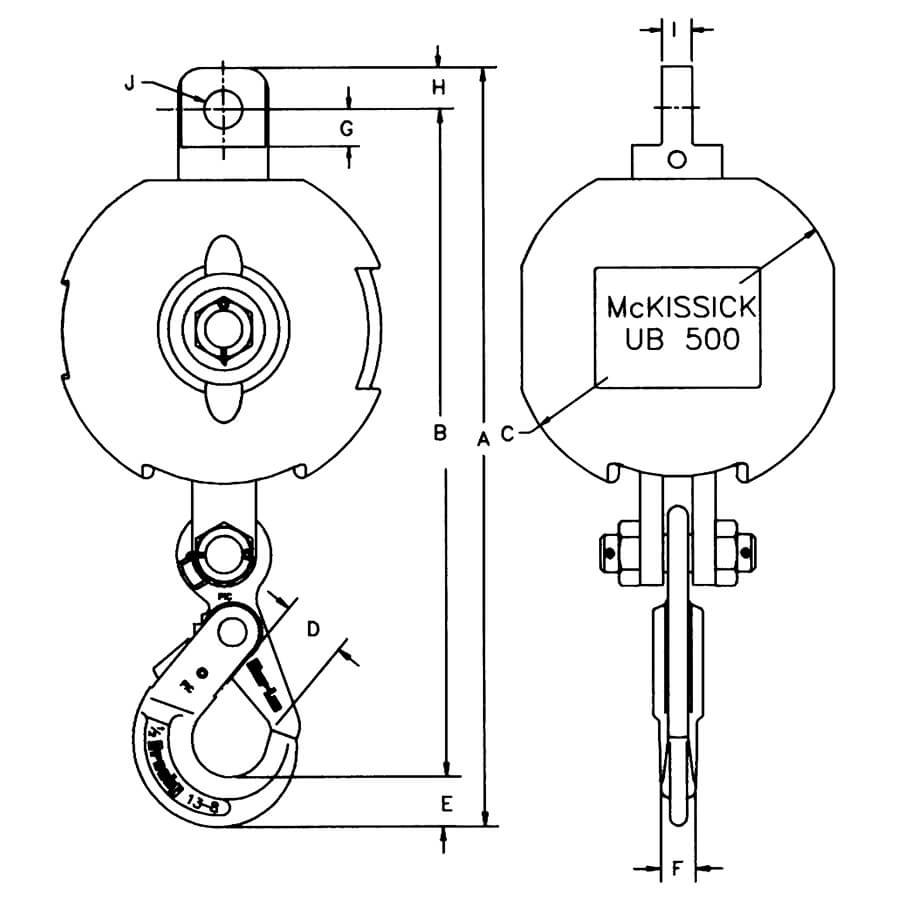

CERTEX Cat. Ref. No. UB500 McKissick Model No. CERTEX Cat. Ref. No. UB500 “S” SHUR-LOC® Crosby Stock No. Dimensions (in.)
A B C D E F G H I J
CX13-0500 MB4T35 CX13-0562 1036005 20.66 18.18 7.50 1.87 1.15 .94 1.88 1.38 .88 1.31
CX13-0501 MB4T85 CX13-0563 1036018 21.55 19.05 9.25 1.87 1.15 .94 1.88 1.38 .88 1.31
CX13-0502 MB4T150 CX13-0564 1036032 22.55 20.05 11.25 1.87 1.15 .94 1.88 1.38 .88 1.31
CX13-0503 MB4T200 CX13-0565 1036041 22.92 20.42 12.50 1.87 1.15 .94 1.88 1.38 .88 1.31
CX13-0504 MB7T85 CX13-0566 1036050 23.90 21.30 9.25 2.11 1.66 1.16 1.88 1.38 .88 1.31
CX13-0505 MB7T150 CX13-0567 1036063 25.28 22.30 11.25 2.11 1.66 1.16 1.88 1.38 .88 1.31
CX13-0506 MB7T200 CX13-0568 1036077 25.61 22.65 12.50 2.11 1.66 1.16 1.88 1.38 .88 1.31
CX13-0507 MB7T285 CX13-0569 1036086 26.58 23.61 13.88 2.11 1.66 1.16 1.88 1.38 .88 1.31
CX13-0508 MB10T150 CX13-0570 1036095 31.24 27.19 11.25 2.49 2.06 1.50 2.75 2.00 1.25 1.78
CX13-0509 MB10T200 CX13-0571 1036108 31.61 27.56 12.50 2.49 2.06 1.50 2.75 2.00 1.25 1.78
CX13-0510 MB10T285 CX13-0572 1036122 32.55 28.50 13.88 2.49 2.06 1.50 2.75 2.00 1.25 1.78
CX13-0511 MB10T350 CX13-0573 1036131 33.11 29.06 15.00 2.49 2.06 1.50 2.75 2.00 1.25 1.78
CX13-0512 MB10TB50 CX13-0574 1036140 34.59 30.54 17.94 2.49 2.06 1.50 2.75 2.00 1.25 1.78
Key to McKissick® UB500
Utility Overhaul Ball Model Numbers
MB 4 T 35 E
McKissick® Utility Overhaul Ball Working Load Limit (Tons) Swivel Style Ball only Weight Hook Style
T = Top E = 320 or 320N
Eye Hook
NS = Non S = SHUR-LOC®
Eye Hook
  • Design Factor 4:1
  • Sizes 4 tons through 10 tons available with Crosby’s S316A “Positive Locking” SHUR-LOC® hook which may be used for lifting personnel. Meets OSHA Rule 1926.550 (g).
  • The S320 hook (PL latch) and the S320N hook (S4320 latch), with the proper latch attached, may be used for
    personnel lifting when secured with proper device (Bolt, nut and pin for the PL latch; Cotter pin for the S4320 latch). Meets OSHA Rule 1926.550 (g).
