McKissick® UB500 Series Top Swiveling Overhaul Balls with S320 / S320N Eye Hook

McKissick® UB500 Series Top Swiveling Overhaul Balls with S320 / S320N Eye Hook

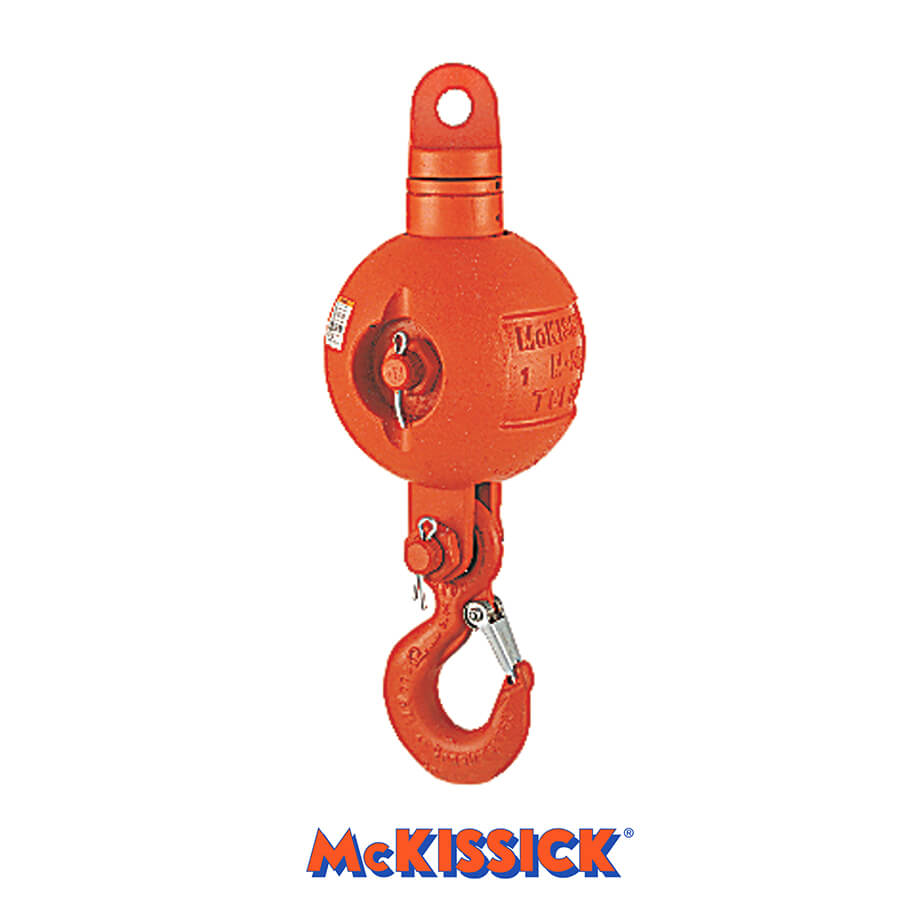

  • The top swivel design on the UB500 assures the ball remains stationary if the wire line spins.
  • The swivel incorporates a sealed roller thrust bearing together with a grease fitting for easy lubrication.
  • Each ball can be equipped with the new McKissick US422 Wedge & Socket which can be easily adjusted to fit various sizes of wire rope by changing the wedge (Ensure that correct wedge is used for selected wire rope size).
  • All hooks used on UB500 Overhaul Balls (S320, S320N & S316A) are forged from alloy steel. The S320 and S320N hooks come complete with latches.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Overhaul Ball Assembly Optional US-422 Wedge & Socket Assembly
McKissick UB500 UB500 “E” Eye Hook Working Load Limit (tons) Weight Each (lbs.) Wire Rope Size (in.) US-422 Weight Each (lbs.)
CERTEX Cat. Ref. No. McKissick Model No. CERTEX Cat. Ref. No. Crosby Stock No. Model No. CERTEX Cat. Ref. No. Crosby Stock No.
CX13-0500 MB4T35 CX13-0531 1036000* 4 58 3/8 US4 CX13-0575 1038499 4.6
CX13-0501 MB4T85 CX13-0532 1036009* 4 102 7/16 US4 CX13-0576 1038503 4.6
CX13-0502 MB4T150 CX13-0533 1036027* 4 162 1/2 US4 CX13-0577 1038508 4.6
CX13-0503 MB4T200 CX13-0534 1036036* 4 201 1/2 US5 CX13-0578 1038517 8.5
CX13-0504 MB7T85 CX13-0535 1036045* 7 109 9/16 US5 CX13-0579 1038526 8.5
CX13-0505 MB7T150 CX13-0536 1036054* 7 170 5/8 US5 CX13-0580 1038535 8.5
CX13-0506 MB7T200 CX13-0537 1036072* 7 210 5/8 US6 CX13-0581 1038544 9.4
CX13-0507 MB7T285 CX13-0538 1036081* 7 321 3/4 US6 CX13-0582 1038533 9.4
CX13-0508 MB10T150 CX13-0539 1036090* 10 216
CX13-0509 MB10T200 CX13-0540 1036099* 10 260
CX13-0510 MB10T285 CX13-0541 1036117* 10 365 5/8 US6 CX13-0583 1038544 9.4
CX13-0511 MB10T350 CX13-0542 1036126* 10 403 3/4 US6 CX13-0584 1038553 9.4
CX13-0512 MB10T650 CX13-0543 1036135* 10 718 7/8 US8 CX13-0585 1038598 20.8
CX13-0513 MB12T150 CX13-0544 1036144* 12 216 1 US8 CX13-0586 1038607 20.8
CX13-0514 MB12T200 CX13-0545 1036153* 12 258 1 1/18 US10 CX13-0587 1038616 46.5
CX13-0515 MB12T285 CX13-0546 1036171* 12 365 1 1/4 US10 CX13-0588 1038625 46.5
CX13-0516 MB12T350 CX13-0547 1036180* 12 403
CX13-0517 MB12T650 CX13-0548 1036189* 12 718
CX13-0518 MB15T200 CX13-0549 1036198* 15 298
CX13-0519 MB15T350 CX13-0550 1036207 15 456
CX13-0520 MB15T650 CX13-0551 1036216* 15 753
CX13-0521 MB15T1150 CX13-0552 1036225* 15 1311 5/8 US8A CX13-0589 1038562 17.5
CX13-0522 MB30T200 CX13-0553 1036234* 20 298 3/4 US8A CX13-0590 1038571 17.5
CX13-0523 MB20T350 CX13-0554 1036243* 20 456 7/8 US8 CX13-0591 1038598 20.8
CX13-0524 MB20T650 CX13-0555 1036252* 20 753 1 US8 CX13-0592 1038607 20.8
CX13-0525 MB20T1150 CX13-0556 1036261* 20 1311 1 1/18 US10 CX13-0593 1038616 46.5
CX13-0526 MB25T350 CX13-0557 1036270 25 533 1 1/4 US10 CX13-0594 1038625 46.5
CX13-0527 MB25T650 CX13-0558 1036279 25 865
CX13-0528 MB25T1150 CX13-0559 1036288 25 1421
CX13-0529 MB30T650 CX13-0560 1036297 30 865
CX13-0530 MB30T1150 CX13-0561 1036306 30 1421

• 4 ton through 20 ton models are New 320-N Eye Hooks
Standard Crosby S-5 Thrust Bearing style swivels can not be used with UB500 Overhaul balls.

CERTEX Cat. Ref. No. UB500 McKissick Model No. CERTEX Cat. Ref. No. UB500 “E” Eye Hook Crosby Stock No. Deformation Indicator AA Dimensions (in.)

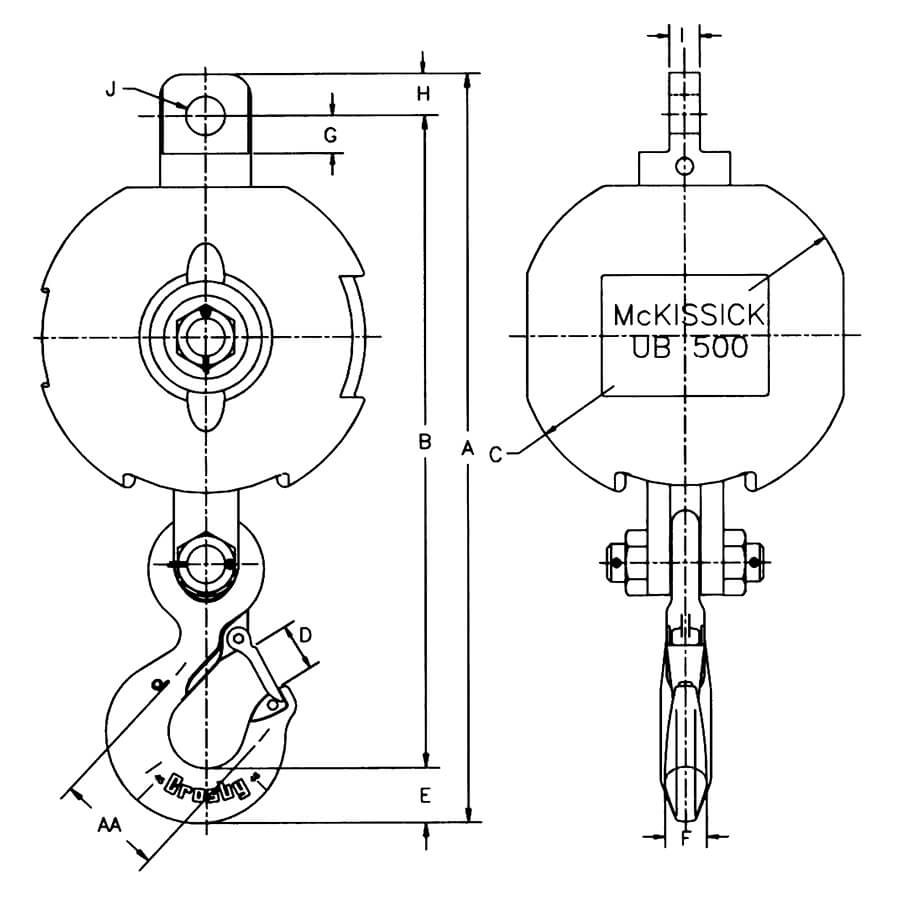

A B C D E F G H I J
CX13-0500 MB4T35 CX13-0531 1036000 2.5 20.09 17.27 7.50 1.36 1.44 1.12 1.88 1.38 .88 1.31
CX13-0501 MB4T85 CX13-0532 1036009 2.5 20.98 18.16 9.25 1.36 1.44 1.12 1.88 1.38 .88 1.31
CX13-0502 MB4T150 CX13-0533 1036027 2.5 21.98 19.16 11.25 1.36 1.44 1.12 1.88 1.38 .88 1.31
CX13-0503 MB4T200 CX13-0534 1036036 2.5 22.35 19.53 12.50 1.36 1.44 1.12 1.88 1.38 .88 1.31
CX13-0504 MB7T85 CX13-0535 1036045 3.0 23.18 20.36 9.25 1.61 1.81 1.38 1.88 1.38 .88 1.31
CX13-0505 MB7T150 CX13-0536 1036054 3.0 24.56 21.36 11.25 1.61 1.81 1.38 1.88 1.38 .88 1.31
CX13-0506 MB7T200 CX13-0537 1036072 3.0 24.89 21.71 12.50 1.61 1.81 1.38 1.88 1.38 .88 1.31
CX13-0507 MB7T285 CX13-0538 1036081 3.0 25.86 22.67 13.88 1.61 1.81 1.38 1.88 1.38 .88 1.31
CX13-0508 MB10T150 CX13-0539 1036090 4.0 31.44 27.19 11.25 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0509 MB10T200 CX13-0540 1036099 4.0 31.81 27.56 12.50 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0510 MB10T285 CX13-0541 1036117 4.0 32.75 28.50 13.88 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0511 MB10T350 CX13-0542 1036126 4.0 33.31 29.06 15.00 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0512 MB10T650 CX13-0543 1036135 4.0 34.79 30.54 17.94 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0513 MB12T150 CX13-0544 1036144 4.0 31.44 27.19 11.25 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0514 MB12T200 CX13-0545 1036153 4.0 31.81 27.56 12.50 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0515 MB12T285 CX13-0546 1036171 4.0 32.75 28.50 13.88 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0516 MB12T350 CX13-0547 1036180 4.0 33.31 29.06 15.00 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0517 MB12T650 CX13-0548 1036189 4.0 35.79 30.54 17.94 2.08 2.25 1.62 2.75 2.00 1.25 1.78
CX13-0518 MB15T200 CX13-0549 1036198 5.0 37.59 32.59 12.50 3.02 3.00 2.38 2.38 2.00 1.25 1.78
CX13-0519 MB15T350 CX13-0550 1036207 5.0 38.81 33.81 15.00 3.02 3.00 2.38 2.38 2.00 1.25 1.78
CX13-0520 MB15T850 CX13-0551 1036216 5.0 40.22 35.22 17.94 3.02 3.00 2.38 2.38 2.00 1.25 1.78
CX13-0521 MB15T1150 CX13-0552 1036225 5.0 42.22 37.22 21.62 3.02 3.00 2.38 2.38 2.00 1.25 1.78
CX13-0522 MB20T200 CX13-0553 1036234 5.0 37.59 32.59 12.50 3.02 3.00 2.38 2.38 2.00 1.25 1.78
CX13-0523 MB20T350 CX13-0554 1036243 5.0 38.81 33.81 15.00 3.02 3.00 2.38 2.38 2.00 1.25 1.78
CX13-0524 MB20T650 CX13-0555 1036252 5.0 40.22 35.22 17.94 3.02 3.00 2.38 2.38 2.00 1.25 1.78
CX13-0525 MB20T1150 CX13-0556 1036261 5.0 42.22 37.22 21.62 3.02 3.00 2.38 2.38 2.00 1.25 1.78
CX13-0526 MB25T350 CX13-0557 1036270 6.5 47.18 40.18 15.00 3.00 3.62 3.00 3.31 2.75 1.75 1.78
CX13-0527 MB25T650 CX13-0558 1036279 6.5 49.12 42.75 17.94 3.00 3.62 3.00 3.31 2.75 1.75 1.78
CX13-0528 MB25T1150 CX13-0559 1036288 6.5 51.06 44.69 21.62 3.00 3.62 3.00 3.31 2.75 1.75 1.78
CX13-0529 MB30T850 CX13-0560 1036297 6.5 49.12 42.75 17.94 3.00 3.62 3.00 3.31 2.75 1.75 1.78
CX13-0530 MB30T1150 CX13-0561 1036306 6.5 51.06 44.69 21.62 3.00 3.62 3.00 3.31 2.75 1.75 1.78
  • Design Factor 4:1
  • Sizes 4 tons through 10 tons available with Crosby’s S316A “Positive Locking” SHUR-LOC® hook which may be used for lifting personnel. Meets OSHA Rule 1926.550 (g).
  • The S320 hook (PL latch) and the S320N hook (S4320 latch), with the proper latch attached, may be used for
    personnel lifting when secured with proper device (Bolt, nut and pin for the PL latch; Cotter pin for the S4320 latch). Meets OSHA Rule 1926.550 (g).
Key to McKissick® UB500
Utility Overhaul Ball Model Numbers
MB 4 T 35 E
McKissick® Utility Overhaul Ball Working Load Limit (Tons) Swivel Style Ball only Weight Hook Style
T = Top E = 320 or 320N
Eye Hook
NS = Non S = SHUR-LOC®
Eye Hook
