UHMWPE High Strength 12-Strand

UHMWPE High Strength 12-Strand

APPLICATIONS

  • Electric
  • Vessel mooring
  • Towing and tug line
  • Hoisting and lifting

FEATURES

  • High performance & light weight
  • Low kinetic energy for safety
  • No water absorption
  • Good UV resistance
  • Great abrasion resistance
  • Melting point: 150C

rope resistant icon


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

ROPE SIZE DIAMETER STOCK NUMBER DESCRIPTION REEL LENGTH COLOR WORKING LOAD LIMIT (lbs.) MINIMUM BREAKING STRENGTH (lbs.)
1/4” UHM250 UHMWPE 12 Strand Rope 600′ Purple 1,600  8,000
3/8” UHM375 UHMWPE 12 Strand Rope 600′ Purple 3,500  17,500
1/2” UHM500 UHMWPE 12 Strand Rope 600′ Purple 6,200  31,000
5/8” UHM625 UHMWPE 12 Strand Rope 600′ Purple 10,200  51,000
3/4” UHM750 UHMWPE 12 Strand Rope 600′ Purple 13,700  68,500
7/8” UHM875 UHMWPE 12 Strand Rope 600′ Purple 18,500  92,500
1” UHM100 UHMWPE 12 Strand Rope 600′ Purple 22,000  110,000
1-1/8” UHM1125 UHMWPE 12 Strand Rope 600′ Purple 29,400  147,000
1-1/4” UHM1250 UHMWPE 12 Strand Rope 600′ Purple 33,000  165,000
1-1/2” UHM1500 UHMWPE 12 Strand Rope 600′ Purple 44,200  221,000
1-3/4” UHM1750 UHMWPE 12 Strand Rope 600′ Purple 62,000  310,000
2” UHM200 UHMWPE 12 Strand Rope 600′ Purple 71,000 355,000

Tensile Strengths are determined in accordance with Cordage Institute 1500.2.

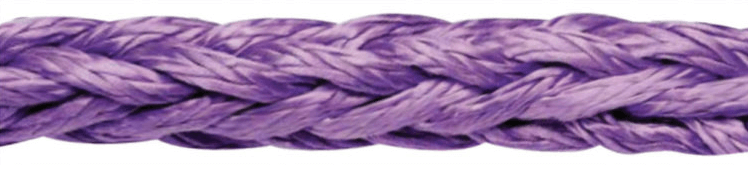

UHMWPE rope

ROPE
SIZE
DIAMETER		 WORKING LOAD LIMIT (lbs.)
vertical drawing

VERTICAL



choker drawing

CHOKER



basket rope drawing

BASKET
1/4” 1,600 1,200 3,200
3/8” 3,500 2,800 7,000
1/2” 6,200 5,000 12,400
5/8” 10,200 8,200 20,400
3/4” 13,700 10,900 27,400
7/8” 18,500 14,800 37,000
1” 22,000 17,600 44,000
1-1/8” 29,400 23,500 58,800
1-1/4” 33,000 26,400 66,000
1-1/2” 44,200 35,300 88,400
1-3/4” 62,000 50,000 124,000
2” 71,000 56,000 142,000

tug salvage lines

Features & Benefits

  • Highest strength
  • As strong as wire rope
  • Low creep
  • Soft hand
  • Tourque-free
  • Easy splicing
  • Floats

home cat tug mooring lines

Applications

  • Replacement for wire rope
  • Vessel mooring lines
  • Inland river barge lines
  • Lifting slings
  • Recreational vehicle winch lines
  • Utility winch and pulling lines
  • Theatrical rigging

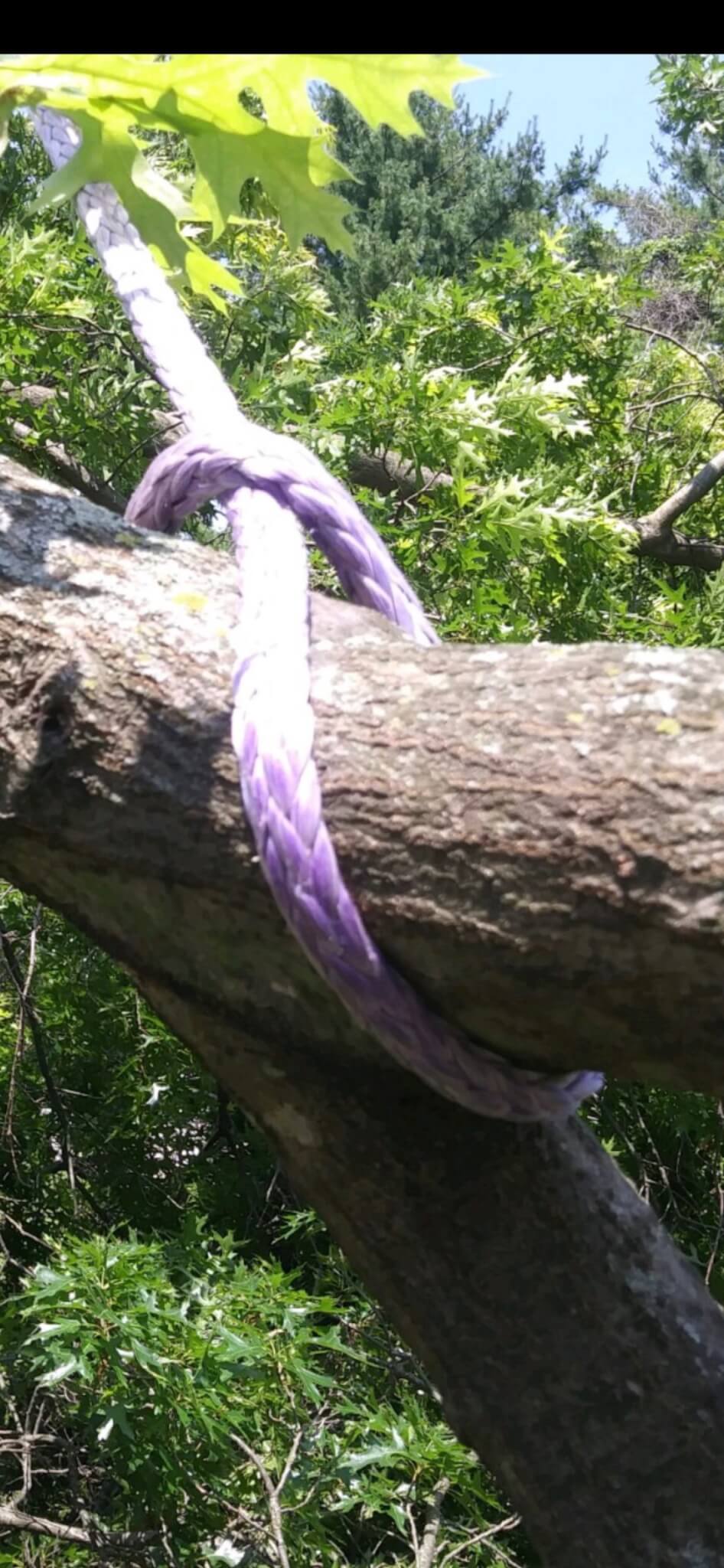

UHMWPE in action

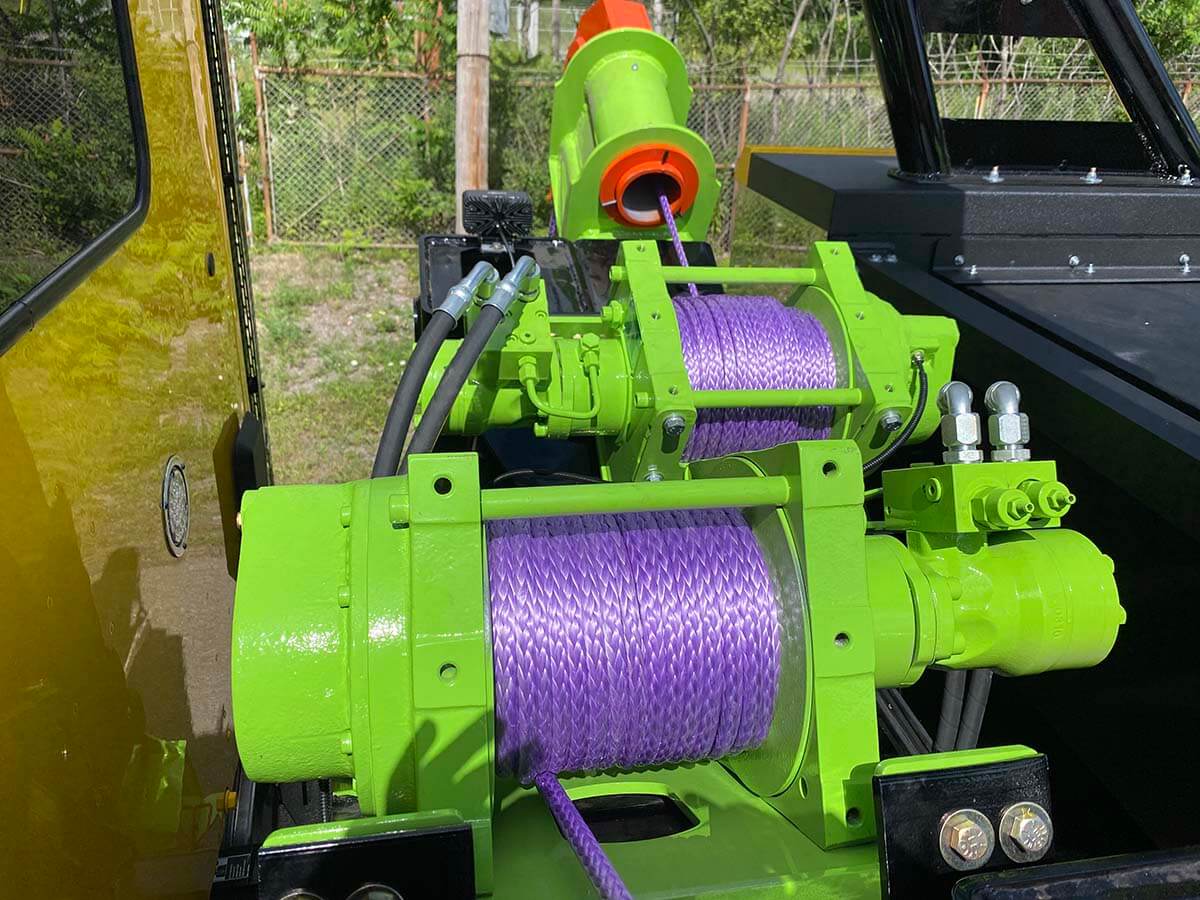

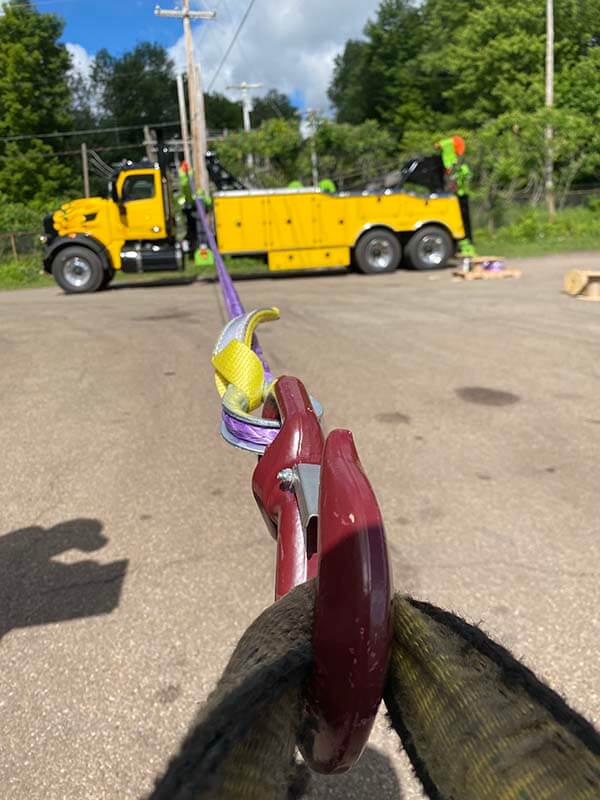

UHMWPE in use

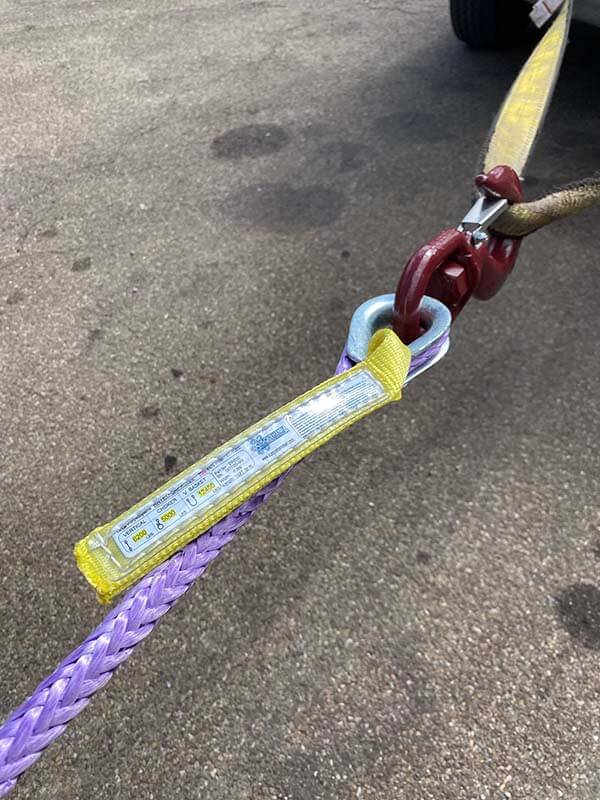

UHMWPE in use
