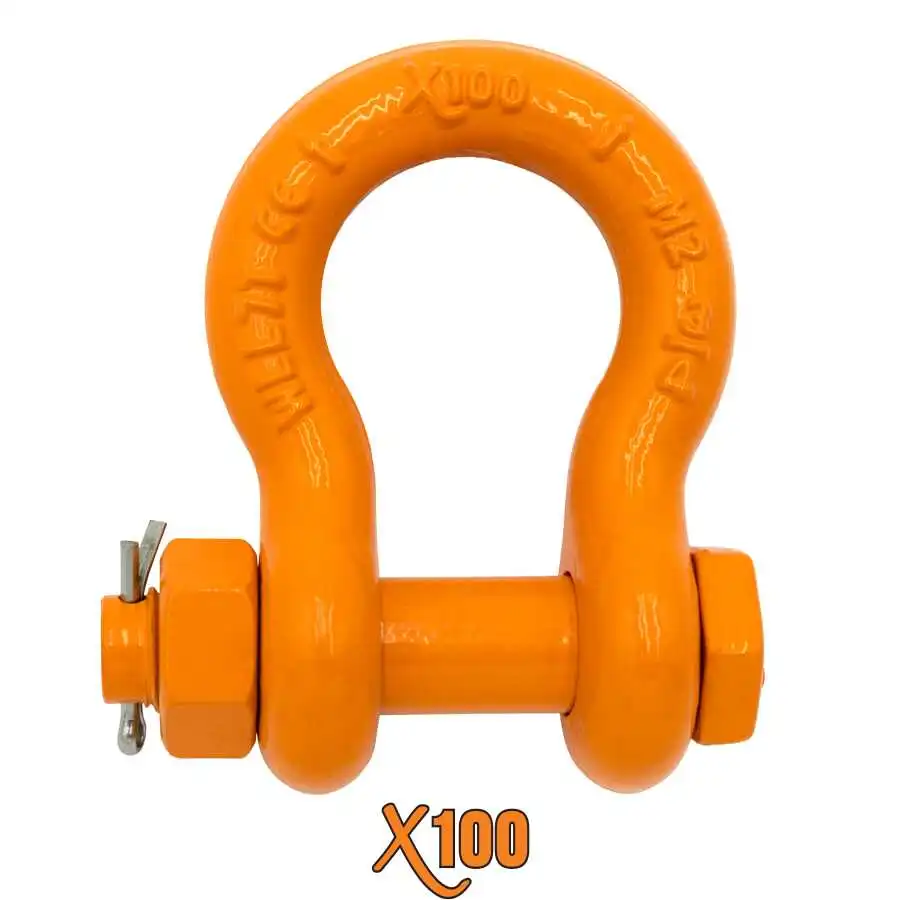

| STOCK NUMBER | SIZE | PIN DIAMETER | WORKING LOAD LIMIT (TON) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|
|
XSASA437 |
7/16” |
1/2” |
2.66 |
0.8 |
|
XSASA500 |
1/2″ |
5/8” |
3.33 |
1.4 |
|
XSASA625 |
5/8″ |
3/4” |
5.00 |
2.4 |
|
XSASA750 |
3/4″ |
7/8” |
7.00 |
3.6 |
|
XSASA875 |
7/8″ |
1” |
9.50 |
5.8 |
|
XSASA100 |
1″ |
1-1/8” |
12.50 |
8.0 |
|
XSASA1125 |
1-1/8″ |
1-1/4” |
15.00 |
10.8 |
|
XSASA1250 |
1-1/4″ |
1-3/8” |
18.00 |
14 |
|
XSASA1375 |
1-3/8″ |
1-1/2” |
21.00 |
18.2 |

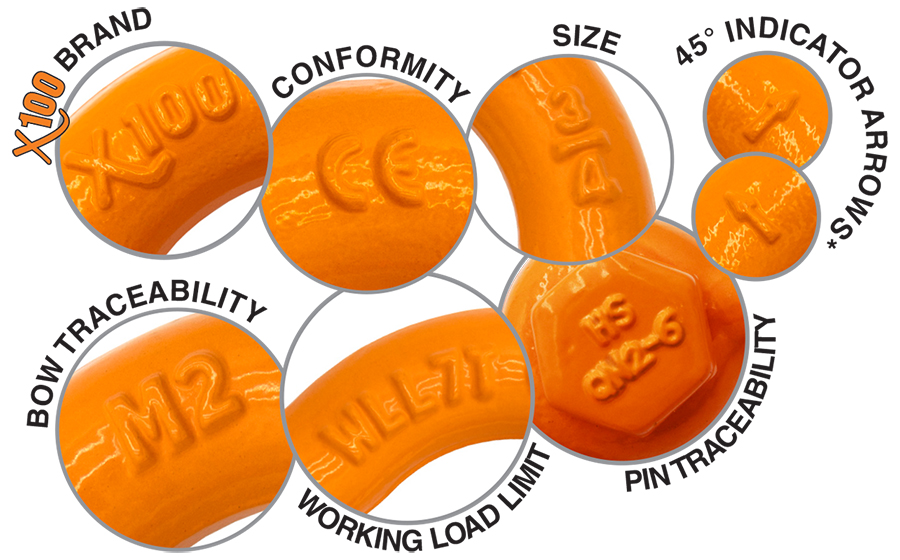

Ultimate load is 5 times the Working Load Limit.

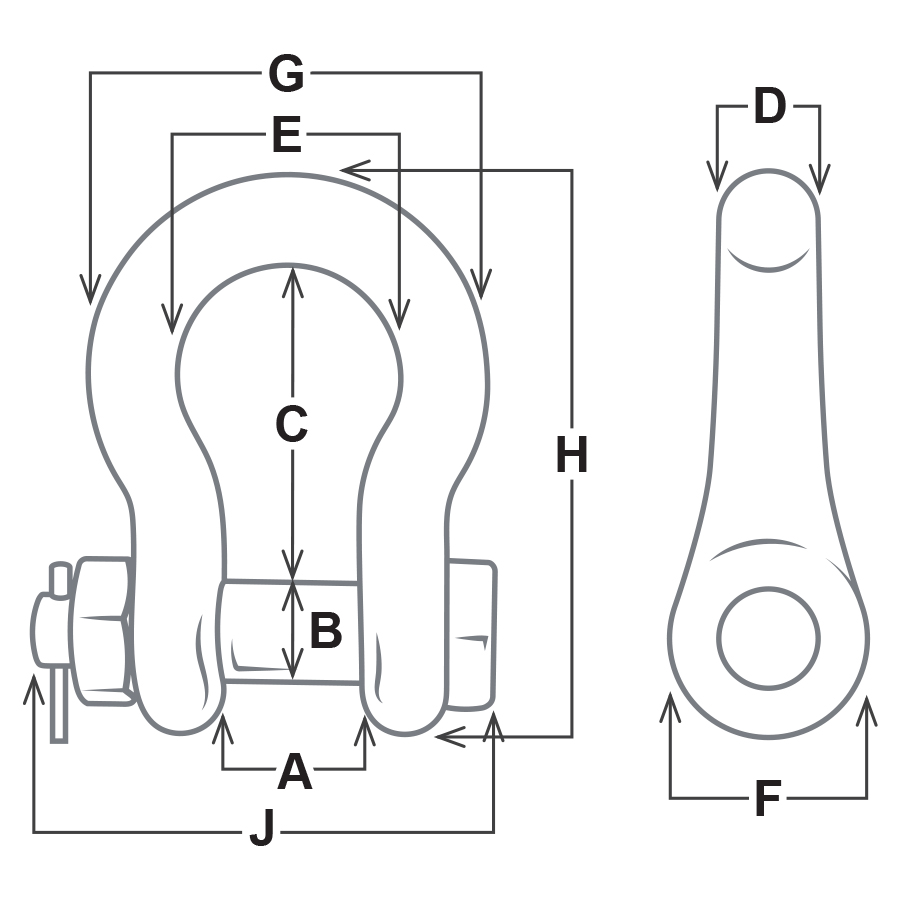

| STOCK NUMBER | DIMENSIONS (IN) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | |
|
XSASA437 |
0.82 |
0.62 |
1.85 |
0.52 |
1.26 |
1.27 |
2.33 |
3.29 |
2.89 |
0.53 |
|
XSASA500 |
1.11 |
0.74 |
2.35 |
0.66 |
1.65 |
1.58 |
2.95 |
4.16 |
4.21 |
0.77 |
|
XSASA625 |
1.25 |
0.88 |
2.79 |
0.79 |
1.95 |
1.88 |
3.49 |
4.90 |
4.21 |
0.77 |
|
XSASA750 |
1.44 |
1.00 |
3.26 |
0.90 |
2.23 |
2.11 |
4.00 |
5.61 |
4.80 |
0.89 |
|
XSASA875 |
1.60 |
1.11 |
3.72 |
1.09 |
2.67 |
2.39 |
4.65 |
6.25 |
5.39 |
1.01 |
|
XSASA100 |
1.83 |
1.28 |
4.26 |
1.16 |
2.87 |
2.64 |
5.17 |
7.10 |
5.98 |
1.15 |
|
XSASA1125 |
2.04 |
1.38 |
4.63 |
1.31 |
3.00 |
3.00 |
5.76 |
7.77 |
6.27 |
1.28 |
|
XSASA1250 |
2.26 |
1.51 |
5.19 |
1.40 |
3.64 |
3.28 |
6.43 |
8.81 |
7.03 |
1.36 |
|
XSASA1375 |
2.26 |
1.65 |
5.81 |
1.58 |
3.80 |
3.62 |
6.56 |
9.60 |
7.63 |
1.47 |
