X100® Grade 100 Master Link With Adjusters

APPROVED FOR OVERHEAD LIFTING

Approved for overhead lifting
Forged alloy steel
Quenched & tempered
Powder coated HI-VIZ safety orange
100% proof tested at 2 times the working load limit
100% mag-particle crack detection

FOR SINGLE LEG CHAIN SLINGS

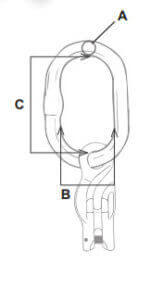

STOCK NUMBER	CHAIN SIZE	DIMENSIONS			WORKING LOAD LIMIT 4:1
STOCK NUMBER	CHAIN SIZE	A	B	C	WORKING LOAD LIMIT 4:1
XV1-7/8i	9/32”-5/16”	0.551”	2.75”	4.72”	5,700 lbs.
XV1-10i	3/8″	0.669”	3.15”	5.51”	8,800 lbs.
XV1-13i	1/2″	0.866”	3.74”	6.29”	15,000 lbs.
XV1-16i	5/8″	0.984”	4.33”	7.48”	22,600 lbs.

NOT TO BE USED FOR BASKET APPLICATION.

FOR DOUBLE LEG CHAIN SLINGS

STOCK NUMBER	SIZE	DIMENSIONS			WORKING LOAD LIMIT 4:1
STOCK NUMBER	SIZE	A	B	C	WORKING LOAD LIMIT 4:1
XV2-7/8i	9/32”-5/16”	0.669”	3.15”	5.15”	9,900 lbs.
XV2-10i	3/8″	0.866”	3.74”	6.29”	15200 lbs.
XV2-13i	1/2″	0.984”	4.33”	7.48”	26000 lbs.
XV2-16i	5/8″	1.26”	5.11”	9.05”	39100 lbs.

FOR TRIPLE AND QUADRUPLE LEG CHAIN SLINGS

STOCK NUMBER	SIZE	DIMENSIONS			WORKING LOAD LIMIT 4:1
STOCK NUMBER	SIZE	A	B	C	WORKING LOAD LIMIT 4:1
XV4-7/8i	9/32”-5/16”	0.669”	3.15”	5.51”	14,800 lbs.
XV4-10i	3/8″	0.866”	3.74”	6.29”	22,900 lbs.
XV4-13i	1/2″	0.984”	4.33”	7.48”	39,000 lbs.
XV4-16i	5/8″	1.26”	5.11”	9.05”	58,700 lbs.

NOT TO BE USED FOR BASKET APPLICATION.

When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.

STOCK NUMBER	DIMENSIONS
STOCK NUMBER	A	B	C
XV1-7/8i	0.551”	2.75”	4.72”
XV1-10i	0.669”	3.15”	5.51”
XV1-13i	0.866”	3.74”	6.29”
XV1-16i	0.984”	4.33”	7.48”

STOCK NUMBER	DIMENSIONS
STOCK NUMBER	A	B	C
XV2-7/8i	0.669”	3.15”	5.15”
XV2-10i	0.866”	3.74”	6.29”
XV2-13i	0.984”	4.33”	7.48”
XV2-16i	1.26”	5.11”	9.05”

STOCK NUMBER	DIMENSIONS
STOCK NUMBER	A	B	C
XV4-7/8i	0.669”	3.15”	5.15”
XV4-10i	0.866”	3.74”	6.29”
XV4-13i	0.984″	4.33”	7.8”
XV4-16i	1.26”	5.11”	9.05”

When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
