| STOCK NUMBER | SIZE | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|
| XSLDWR500 |
3/8”-1/2” |
3,800 | 1.60 |
| XSLDWR625 | 5/8″ | 5,800 | 3.80 |
| XSLDWR750 | 3/4″ | 8,200 | 6.60 |
| XSLDWR100 |
7/8”-1″ |
15,000 | 14.60 |

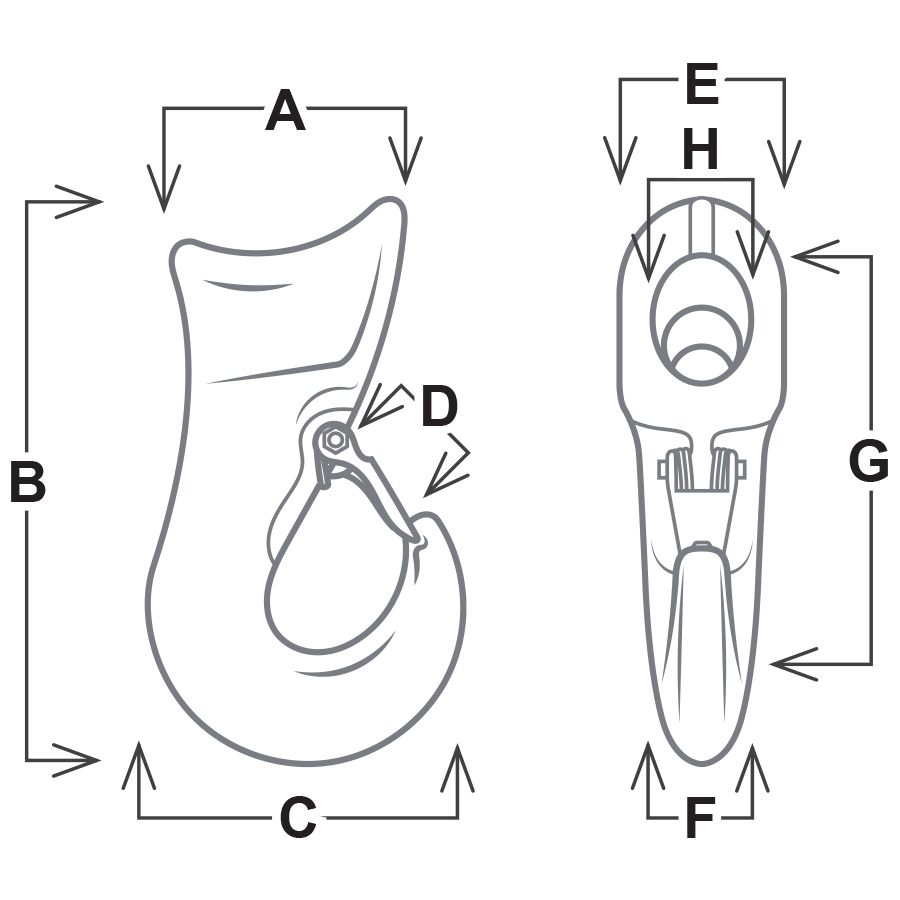

| STOCK NUMBER | DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XSLDWR500 | 2.240 | 5.030 | 2.960 | 0.870 | 1.320 | 0.790 | 3.290 | 0.750 |
| XSLDWR625 | 2.980 | 6.700 | 3.590 | 0.950 | 1.650 | 1.060 | 4.080 | 0.760 |
| XSLDWR750 | 3.300 | 7.720 | 4.270 | 1.140 | 2.140 | 1.210 | 4.910 | 0.990 |
| XSLDWR100 | 4.450 | 9.910 | 6.070 | 1.430 | 2.590 | 1.670 | 6.050 | 1.250 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
