Yoke® Bullet Style Angular Contact Bearing Swivel

Yoke® Bullet Style Angular Contact Bearing Swivel
  • Manufactured using the highest grade of material available
  • Designed with a safety factor of 5:1
  • Available in sizes from 3/4 tons to 25 tons
  • Available for wire lines 1/4″ to 1-1/2″
  • Zinc plated for corrosion resistance and longer life
  • Manufactured with grease fittings for superior performance
  • Designed for low starting torque and high rotation speed
  • All Swivels parts are 100% magnaflux crack detected
  • 20,000 cycle fatigue rate to 1.5 times Working Load Limit
  • All parts with batch number for quality certified and traceabilityMinimum Ultimate Load is 5 times the Working Load Limit
  • Maximum Proof Load is 2 times the Working Load Limit

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

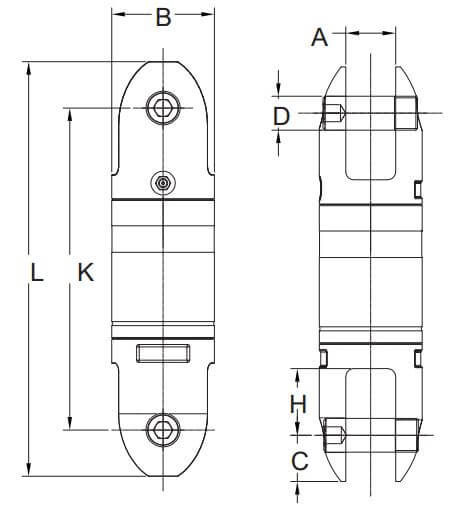

Item No. Wire Line Size Working Load Limit Dimensions (inch) N.W.
inch Tons* B K L C A D H lbs
8-301-0075 1/4 0.75 1.30 4.00 5.00 0.50 0.60 0.40 0.90 1.1
8-301-015 3/8 1.5 1.60 4.40 5.70 0.60 0.70 0.50 1.00 1.7
8-301-03 1/2 3 2.00 6.30 8.00 0.90 0.90 0.60 1.20 4.4
8-301-05 5/8 5 2.50 8.00 10.30 1.20 1.30 0.90 1.50 8.7
8-301-085 3/4 8.5 3.00 9.50 12.30 1.40 1.50 1.00 2.00 14.8
8-301-10 7/8 10 4.00 12.50 16.00 1.80 1.70 1.50 2.10 40.0
8-301-15 1 15 4.30 12.50 16.00 1.80 2.00 1.50 2.20 46.2
8-301-25 1 1/4 25 5.20 14.70 19.50 2.40 2.50 2.00 2.70 80.5
8-301-35 1 1/2 35 5.20 14.70 19.50 2.40 2.50 2.00 2.70 94.4

★ Minimum Ultimate Load is 5 times the Working Load Limit.
Maximun Proof Load is 2 times the Working Load Limit.

Item No. Wire Line Size Working Load Limit Dimensions (mm) N.W.
mm Tons* B K L C A D H kg
8-301-0075 6 0.75 32 103 126 12 15 10 22 0.5
8-301-015 10 1.5 40 112 144 16 18 11 26 0.8
8-301-03 13 3 51 159 203 23 23 16 31 2.0
8-301-05 16 5 64 200 262 31 32 22 37 4.0
8-301-085 19 8.5 76 242 312 35 37 25 50 6.7
8-301-10 22 10 102 317 408 46 42 38 53 18.2
8-301-15 25 15 108 317 408 46 48 38 56 21.0
8-301-25 32 25 132 374 495 61 62 51 69 36.5
8-301-35 38 35 132 374 495 61 62 51 69 42.9

★ Minimum Ultimate Load is 5 times the Working Load Limit.
Maximun Proof Load is 2 times the Working Load Limit.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
