Yoke® Eye-Jaw Angular Contact Bearing Swivel

Yoke® Eye-Jaw Angular Contact Bearing Swivel

● Manufactured using the highest grade of material available.
● Designed with a safety factor of 5:1.
● Available in sizes from 3/4 Tons to 35 Tons.
● Available for wire lines 1/4″ to 1-1/2″.
● Zinc plated for corrosion resistance and longer life.
● Manufactured with grease fittings for superior performance.
● Designed for low starting torque and high rotation speed.
● All Swivels parts are 100% magna flux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load limit.
● All parts with batch number for quality certified and traceability.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

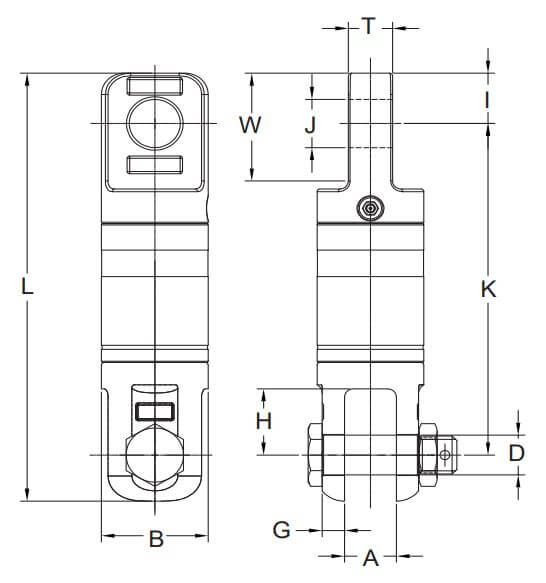

Item No. Wire Line Size Working Load Limit Dimensions (inch) N.W.
inch Tons* A B D G H I J K L T W lbs
8-305-0075 1/4 0.75 0.60 1.30 0.40 0.20 0.90 0.70 0.80 4.06 5.28 0.50 1.50 1.1
8-305-015 3/8 1.5 0.70 1.60 0.50 0.30 1.00 0.90 0.90 4.53 6.14 0.60 1.70 2.0
8-305-03 1/2 3 0.90 2.00 0.80 0.40 1.30 1.10 1.10 6.22 8.31 0.80 2.00 4.8
8-305-05 5/8 5 1.30 2.50 0.90 0.60 1.50 1.30 1.30 8.07 10.60 1.00 2.30 9.7
8-305-085 3/4 8.5 1.60 3.00 1.20 0.60 2.10 1.50 1.50 9.84 12.68 1.30 3.20 16.4
8-305-10 7/8 10 1.70 4.00 1.50 1.00 2.10 2.00 1.70 12.28 16.22 1.70 3.50 39.6
8-305-15 1 15 1.90 4.30 1.50 1.00 2.20 2.50 2.10 12.50 17.10 1.90 4.30 46.7
8-305-25 1 1/4 25 2.40 5.20 2.00 1.20 2.80 2.80 2.60 15.35 20.63 2.40 5.10 88.0
8-305-35 1 1/2 35 2.40 5.20 2.00 1.20 2.80 2.80 2.60 15.35 20.63 2.40 5.10 103.0

★ Minimum Ultimate Load is 5 times the Working Load Limit.
Maximum Proof Load is 2 times the Working Load Limit.

Item No. Wire Line Size Working Load Limit Dimensions (mm) N.W.
mm Tons* A B D G H I J K L T W kg
8-305-0075 6 0.75 15 32 10 6 22 18 19 103 134 12 37 0.5
8-305-015 10 1.5 18 40 13 7 26 22 23 115 156 15 43 0.9
8-305-03 13 3 23 51 19 10 32 28 27 158 211 20 51 2.2
8-305-05 16 5 32 64 22 14 37 33 33 204 268 26 59 4.4
8-305-085 19 8.5 40 76 30 14 54 38 37 250 322 32 82 7.4
8-305-10 22 10 42 102 38 25 54 52 44 313 413 42 90 18.0
8-305-15 25 15 48 108 38 25 57 64 54 314 430 49 110 21.2
8-305-25 32 25 62 132 51 30 70 70 66 391 526 60 130 40.0
8-305-35 38 35 62 132 51 30 70 70 66 391 526 60 130 46.7

★ Minimum Ultimate Load is 5 times the Working Load Limit.
Maximum Proof Load is 2 times the Working Load Limit.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
