Yoke® Jaw-Eye Angular Contact Bearing Swivel

Yoke® Jaw-Eye Angular Contact Bearing Swivel

● Manufactured using the highest grade of material available.
● Designed with a safety factor of 5:1.
● Available in sizes from 3/4 Tons to 35 Tons.
● Available for wire lines 1/4″ to 1-1/4″.
● Zinc plated for corrosion resistance and longer life.
● Manufactured with grease fittings for superior performance.
● Designed for low starting torque and high rotation speed.
● All Swivels parts are 100% magna flux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load limit.
● All parts with batch number for quality certified and traceability.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Metric

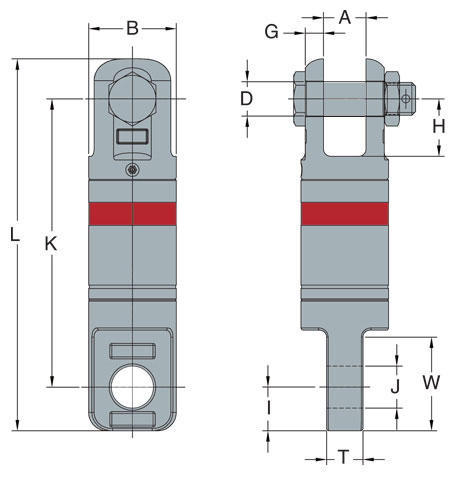

Part Code Wire Line Size mm WLL tonnes A mm B mm D mm G mm H mm I mm J mm K mm L mm T mm W mm Mass kg
8-304-0075 6 0.75 15 32 10 6 22 18 19 103 134 12 37 0.5
8-304-015 10 1.5 18 40 13 7 26 22 23 115 156 15 43 0.9
8-304-03 13 3 23 51 19 10 32 28 27 158 211 20 51 2.2
8-304-05 16 5 32 64 22 14 37 33 33 205 269 26 59 4.4
8-304-085 19 8.5 40 76 30 14 54 38 37 250 322 32 82 7.4
8-304-10 22 10 42 102 38 25 54 52 44 312 412 42 90 17.5
8-304-15 25 15 48 108 38 25 57 64 54 317 434 49 110 21.6
8-304-25 32 25 62 132 51 30 70 70 66 390 524 60 130 39.7

Imperial

Part Code Wire Line Size inch WLL lbs A inch B inch D inch G inch H inch I inch J inch K inch L inch T inch W inch Mass lbs
8-304-0075 1/4 1,653 0.60 1.30 0.40 0.20 0.90 0.70 0.80 4.10 5.30 0.50 1.50 1.1
8-304-015 3/8 3,306 0.70 1.60 0.50 0.30 1.00 0.90 0.90 4.50 6.10 0.60 1.70 2.0
8-304-03 1/2 6,613 0.90 2.00 0.80 0.40 1.30 1.10 1.10 6.20 8.30 0.80 2.00 4.8
8-304-05 5/8 11,023 1.30 2.50 0.90 0.60 1.50 1.30 1.30 8.10 10.60 1.00 2.30 9.7
8-304-085 3/4 18,739 1.60 3.00 1.20 0.60 2.10 1.50 1.50 9.80 12.70 1.30 3.20 16.3
8-304-10 7/8 22,046 1.70 4.00 1.50 1.00 2.10 2.00 1.70 12.30 16.20 1.70 3.50 39.0
8-304-15 1 33,069 1.90 4.30 1.50 1.00 2.20 2.50 2.10 12.50 17.10 1.90 4.30 47.6
8-304-25 1-1/4 55,115 2.40 5.20 2.00 1.20 2.80 2.80 2.60 15.40 20.60 2.40 5.10 87.3

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
