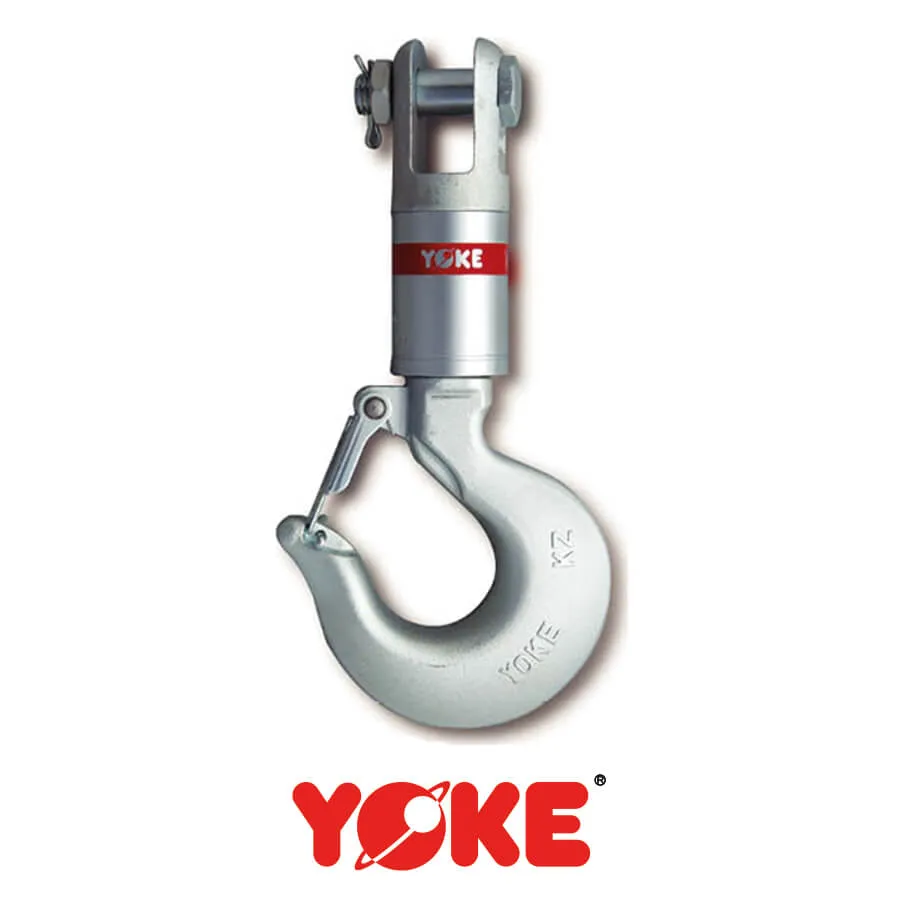

Yoke® Jaw-Hook Angular Contact Bearing Swivel

Yoke® Jaw-Hook Angular Contact Bearing Swivel

● Manufactured using the highest grade of material available.
● Designed with a safety factor of 5:1.
● Available in sizes from 3/4 Tons to 35 Tons.
● Available for wire lines 1/4″ to 1-1/4″.
● Zinc plated for corrosion resistance and longer life.
● Manufactured with grease fittings for superior performance.
● Designed for low starting torque and high rotation speed.
● All Swivels parts are 100% magna flux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load limit.
● All parts with batch number for quality certified and traceability.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

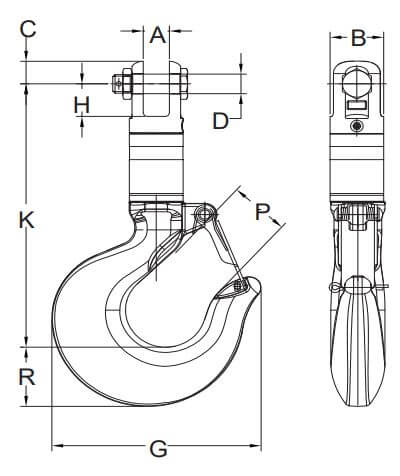

Item No. Wire Line Size Working Load Limit Dimensions (inch) N.W.
inch Tons* A B C D G H K P R lbs
8-308-0075 1/4 0.75 0.40 1.30 0.50 0.40 3.15 0.90 5.48 1.00 0.83 1.5
8-308-015 3/8 1.5 0.50 1.60 0.80 0.50 4.02 1.00 6.33 1.20 1.14 3.3
8-308-03 1/2 3 0.75 2.00 0.91 0.75 5.13 1.30 8.66 1.40 1.42 7.3
8-308-05 5/8 5 0.87 2.50 1.20 0.87 6.54 1.50 10.99 1.70 1.85 14.1
8-308-085 3/4 8.5 1.18 3.00 1.37 1.18 8.69 1.97 13.58 2.40 2.60 29.5
8-308-10 7/8 10 1.50 4.00 1.89 1.50 10.91 2.10 16.49 3.20 3.00 60.0
8-308-15 1 15 1.50 4.30 2.02 1.50 10.91 2.20 16.57 3.20 3.00 63.7
8-308-25 1 1/4 25 2.00 5.20 2.56 2.00 13.89 2.74 19.53 3.30 3.62 124.5

★ Minimum Ultimate Load is 5 times the Working Load Limit.
Maximun Proof Load is 2 times the Working Load Limit.

Item No. Wire Line Size Working Load Limit Dimensions (mm) N.W.
mm Tons* A B C D G H K P R kg
8-308-0075 6 0.75 15 32 13 10 80 22 139 25 21 0.7
8-308-015 10 1.5 18 40 20 13 102 26 161 30 29 1.5
8-308-03 13 3 23 51 23 19 130 32 220 36 36 3.3
8-308-05 16 5 32 64 31 22 166 37 279 43 47 6.4
8-308-085 19 8.5 37 76 35 30 221 50 335 62 66 13.4
8-308-10 22 10 42 102 48 38 277 54 419 81 76 27.2
8-308-15 25 15 48 108 52 38 277 56 421 81 76 28.9
8-308-25 32 25 62 132 65 51 353 69 496 83 92 56.6

★ Minimum Ultimate Load is 5 times the Working Load Limit.
Maximun Proof Load is 2 times the Working Load Limit.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
