Yoke® Jaw-Jaw Angular Contact Bearing Swivel

Yoke® Jaw-Jaw Angular Contact Bearing Swivel

● Manufactured using the highest grade of material available.
● Designed with a safety factor of 5:1.
● Available in sizes from 3/4 Tons to 35 Tons.
● Available for wire lines 1/4″ to 1-1/4″.
● Zinc plated for corrosion resistance and longer life.
● Manufactured with grease fittings for superior performance.
● Designed for low starting torque and high rotation speed.
● All Swivels parts are 100% magna flux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load limit.
● All parts with batch number for quality certified and traceability.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Metric

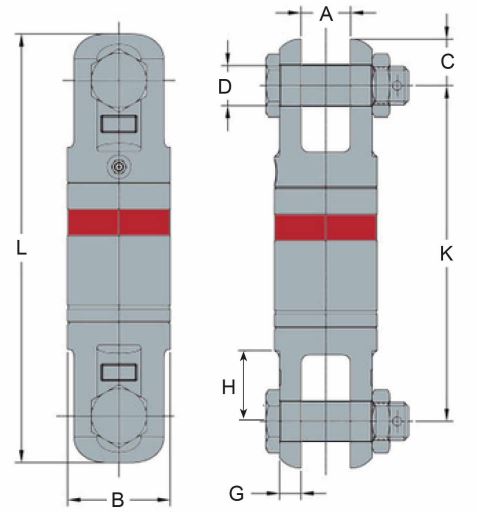

Part Code Wire Line Size mm WLL tonnes A mm B mm C mm D mm G mm H mm K mm L mm Mass kg
8-303-0075 6 0.75 15 32 13 10 6 22 103 128 0.5
8-303-015 10 1.5 18 40 20 13 8 26 112 152 0.9
8-303-03 13 3.0 23 51 25 19 10 32 158 208 2.3
8-303-05 16 5.0 32 64 31 22 14 37 200 261 4.4
8-303-085 19 8.5 40 76 34 30 14 54 252 320 7.6
8-303-10 22 10.0 42 102 48 38 25 54 316 412 19.5
8-303-15 25 15.0 48 108 52 38 25 57 316 420 21.7
8-303-25 32 25.0 62 132 65 51 30 70 374 503 39.5

Imperial

Part Code Wire Line Size inch WLL lbs A inch B inch C inch D inch G inch H inch K inch L inch Mass lbs
8-303-0075 1/4 1653 0.60 1.30 0.50 0.40 0.20 0.90 4.10 5.00 1.1
8-303-015 3/8 3306 0.70 1.60 0.80 0.50 0.30 1.00 4.40 6.00 2.0
8-303-03 1/2 6613 0.90 2.00 1.00 0.80 0.40 1.30 6.20 8.20 5.1
8-303-05 5/8 11023 1.30 2.50 1.20 0.90 0.60 1.50 8.00 10.30 9.7
8-303-085 3/4 18739 1.60 3.00 1.30 1.20 0.60 2.10 10.00 12.60 16.8
8-303-10 7/8 22046 1.70 4.00 1.90 1.50 1.00 2.10 12.40 16.20 43.0
8-303-15 1 33069 1.90 4.30 2.00 1.50 1.00 2.20 12.40 16.50 47.8
8-303-25 1-1/4 55115 2.40 5.20 2.60 2.00 1.20 2.80 14.70 20.00 87.0

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
