Web Slings GENERAL INFORMATION

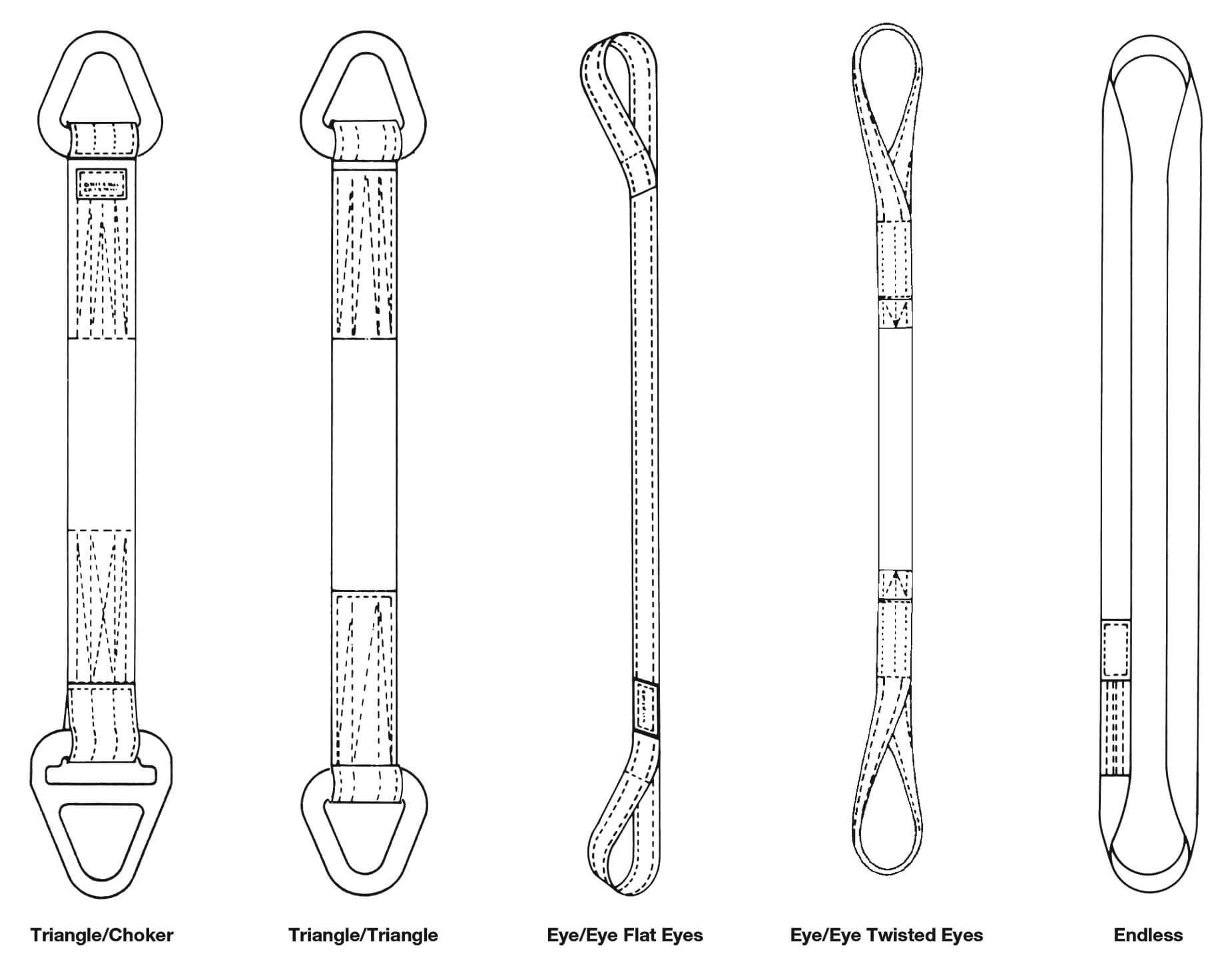

Basic Web Sling Types
TYPE I — Web sling made with a triangle fitting on one end and a slotted triangle choker fitting on the other end.
It can be used in a vertical, basket or choker hitch.
TYPE II — Web sling made with a triangle fitting on both ends. It can be used in a vertical or basket hitch only.
TYPE III — Web sling made with a flat loop eye on each end with loop eye opening on same plane as sling body.
This type of sling is sometimes called a flat eye and eye, eye and eye, or double eye sling.
TYPE IV — Web Sling made with both loop eyes formed as in Type III, except that the loop eyes are turned to form a loop eye which is at a right angle to the plane of the sling body. This type of sling is commonly referred to as a twisted eye sling.
TYPE V — Endless web sling, sometimes referred to as a grommet. It is a continuous loop formed by joining the ends of the webbing together with a load bearing splice.

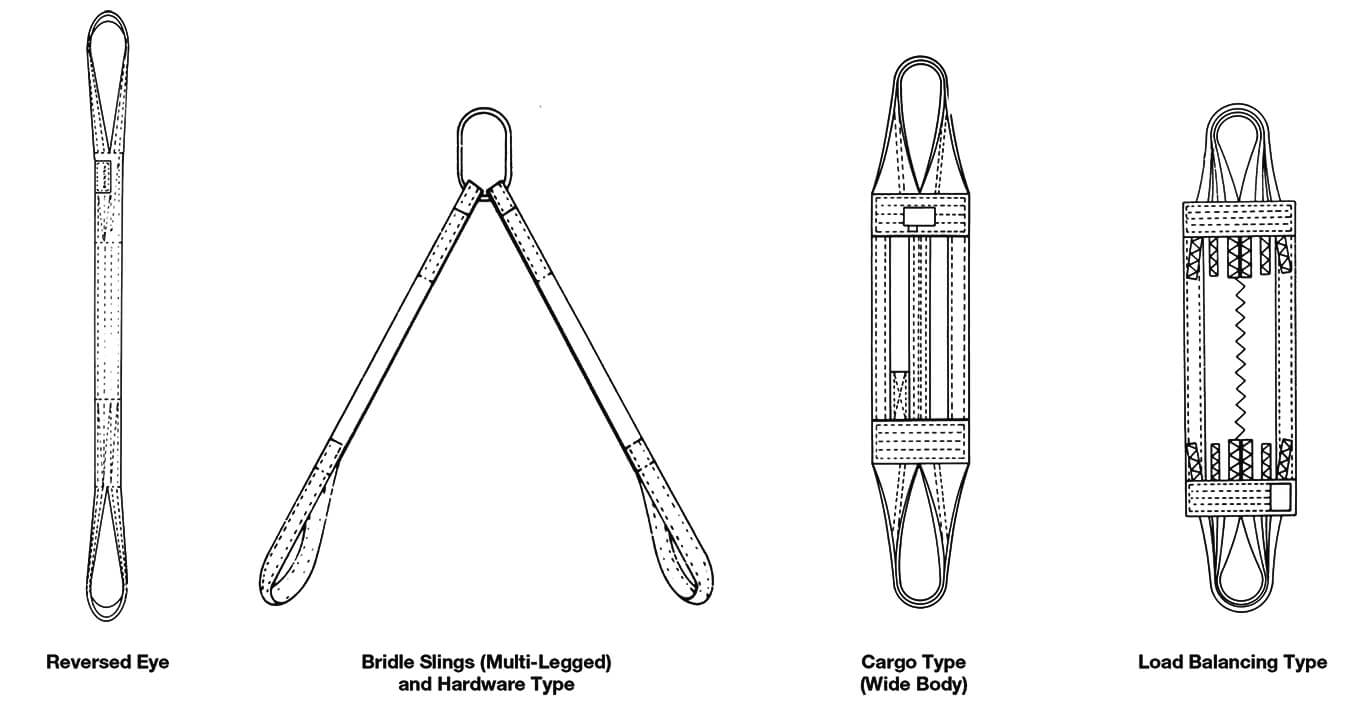

TYPE VI — Return eye (reversed eye) web sling is formed by using multiple widths of webbing held edge to edge. A wear pad is attached on one or both sides of the web sling body and on one or both sides of the loop eyes to form a loop eye at each end which is at a right angle to the plane of the web sling body.
Marine/Boat Slings
WARNING:
Failure to read, understand and follow the use and inspection instructions could result in severe personal injury or death. Do not exceed rated capacities.
