Web Slings GENERAL INFORMATION
Nylon vs. Polyester

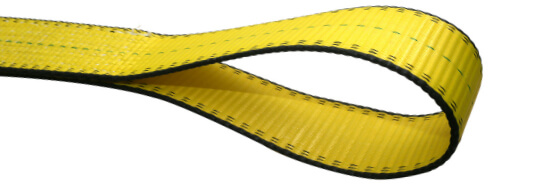

NYLON SLINGS
CAPACITY RATING
Equal to Polyester
HITCH FUNCTIONALITY
Equal to Polyester
STRETCH
More than Polyester.
Not typically relevant in multi-sling
applications. Do not mix nylon and
polyester silngs on the same lift.
IMPACT OF SATURATION
Rated in a 5:1.10-15% Ultimate
Breaking Strength.
PERFORMANCE ENVIRONMENT
Alcohols
Aldehydes
Strong and Weak Alkalis
Dry Cleaning Solvents
Ethers
Halogenated Hydrocarbons
Hydrocarbons
Ketones
Oils, Crude and Lubricated
Soap and Detergents
Water and Seaweed
POLYESTER SLINGS
CAPACITY RATING
Equal to Nylon
HITCH FUNCTIONALITY
Equal to Nylon
STRETCH
Less than Nylon.
Not typically relevant in multi-sling
applications. Do not mix nylon and
polyester slings on the same lift.
IMPACT OF SATURATION
Rated in a 5:1. No Ultimate Breaking
Strength reduction.
PERFORMANCE ENVIRONMENT
Acids (not Concentrated Sulfuric)
Alcohols
Strong and Weak Alkalis (not Strong
at High Temperatures)
Bleaching Agents
Dry Cleaning Solvents
Halogenated Hydrocarbons
Hydrocarbons
Ketones
Oils, Crude and Lubricated
Soap and Detergents
Water and Seaweed

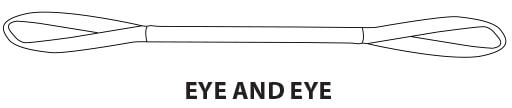

FLAT EYE & TWISTED EYE

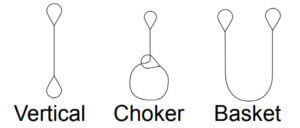

| PLY | WEB WIDTH | VERTICAL RATED CAPACITY (LBS.) | CHOKER RATED CAPACITY (LBS.) | BASKET RATED CAPACITY (LBS.) |
| ONE PLY |
1” | 1,600 | 1,280 | 3,200 |
| 2” | 3,200 | 2,560 | 6,400 | |
| 3” | 4,800 | 3,840 | 9,600 | |
| 4” | 6,400 | 5,120 | 12,800 | |
| 6” | 9,600 | 7,680 | 19,200 | |
| 8” | 12,800 | 10,240 | 25,600 | |
| TWO PLY |
1” | 3,200 | 2,560 | 6,400 |
| 2” | 6,400 | 5,120 | 12,800 | |
| 3” | 9,600 | 7,680 | 19,200 | |
| 4” | 12,800 | 10,240 | 25,600 | |
| 6” | 16,320 | 13,056 | 32,640 | |
| 8” | 22,700 | 18,200 | 45,400 | |
| THREE PLY |
1” | 4,100 | 3,300 | 8,200 |
| 2” | 8,200 | 6,600 | 16,400 | |
| 3” | 12,300 | 9,900 | 24,600 | |
| 4” | 15,300 | 12,200 | 30,600 | |
| 6” | 22,900 | 18,300 | 45,800 | |
| 8” | 30,600 | 24,500 | 61,200 | |
| FOUR PLY |
1” | 6,400 | 5,120 | 12,800 |
| 2” | 12,800 | 10,240 | 25,600 | |
| 3” | 19,200 | 15,360 | 38,400 | |
| 4” | 25,600 | 20,480 | 51,200 | |
| 6” | 38,400 | 30,720 | 76,800 | |
| 8” | 40,960 | 40,960 | 102,400 |
ENDLESS
| PLY | WEB WIDTH | VERTICAL RATED CAPACITY (LBS.) |
CHOKER RATED CAPACITY (LBS.) |
BASKET RATED CAPACITY (LBS.) |
| ONE PLY |
1” | 3,200 | 2,560 | 6,400 |
| 2” | 6,400 | 5,120 | 12,800 | |
| 3” | 9,600 | 7,680 | 19,200 | |
| 4” | 12,800 | 10,240 | 25,600 | |
| 6” | 19,200 | 15,360 | 38,400 | |
| 8” | 25,600 | 20,480 | 51,200 | |
| TWO PLY |
1” | 6,400 | 5,120 | 12,800 |
| 2” | 12,800 | 10,240 | 25,600 | |
| 3” | 19,200 | 15,360 | 38,400 | |
| 4” | 25,600 | 20,480 | 51,200 | |
| 6” | 38,400 | 30,720 | 76,800 | |
| 8” | 51,200 | 40,960 | 102,400 |

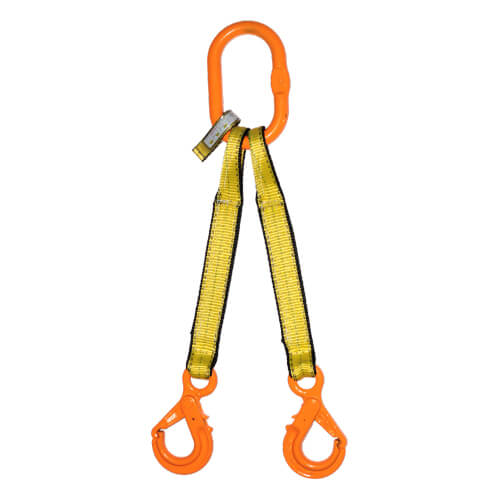

MULTI-LEG SLINGS ALSO AVAILABLE
WARNINGS
Synthetic slings should be specified and used only by trained and qualified rigging professionals. Use of all synthetic slings should be in accordance with regulations and standards for sling use issued by both the Occupational Safety and Health Administration, which can be found at www.osha.gov (search: slings), and the American Society of Mechanical Engineers (ANSI/ASME B30.9), which can be found at www.asme.org (search: B30.9).
Load edges and surfaces in contact with ANY type of synthetic sling must be “protected” with materials of sufficient thickness or strength to prevent sling damage. The protection must be installed and evaluated for suitability by raising the load, slightly, and then lowering the load down for an inspection of the sling and the protection devices. Several “test” lifts may be necessary to determine the proper form of protection for a successful lift.
