6 X 19 WIRE ROPE CLASSIFICATION
6×19 Classification
6 x 19 Classification ropes provide an excellent balance between fatigue and wear resistance. They give excellent service with sheaves and drums of moderate size. 6 x 19 Classification ropes contain 6 strands with 15 through 26 wires per strand, no more than 12 of which are outside wires.

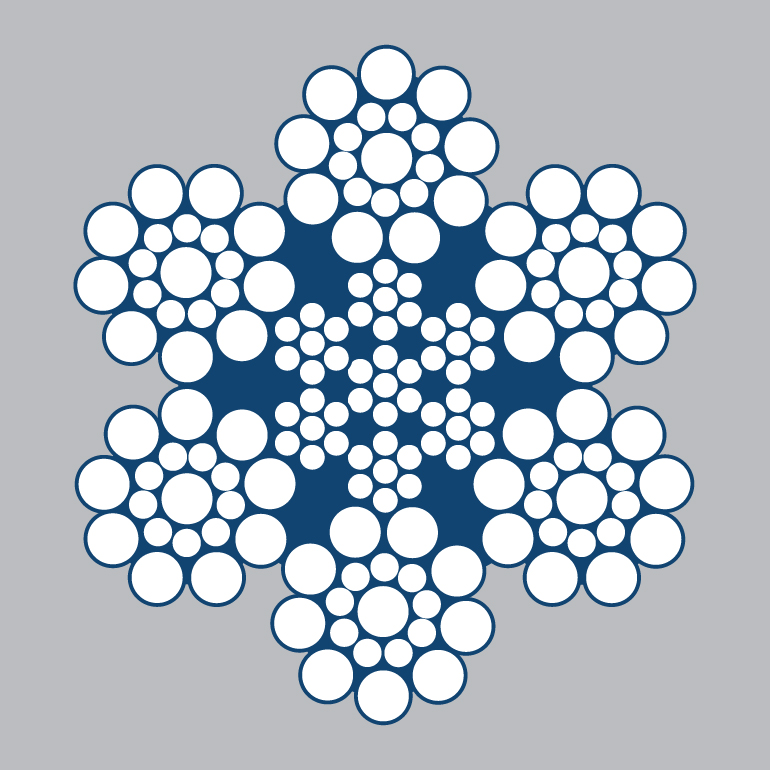

IWRC shown; Fiber Core available
6 x 19 Seale
Characteristics
Resistant to abrasion and crushing; medium fatigue resistance
Typical Applications
- Haulage Rope
- Choker Rope
- Rotary Drilling Line

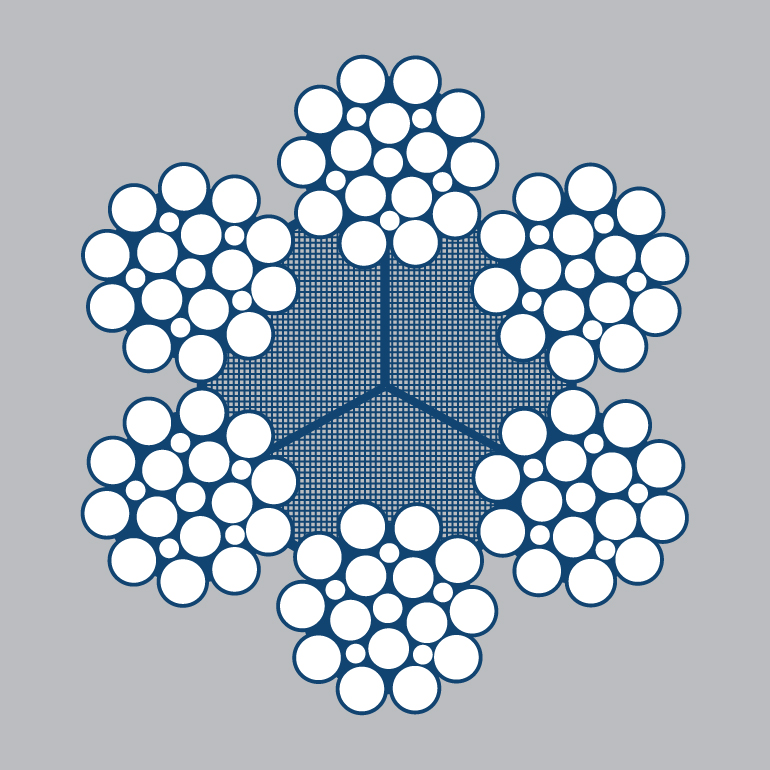

Fiber Core shown; IWRC available
6 x 21 Filler Wire
Characteristics
Less abrasion resistance; more bending fatigue resistance
Typical Applications
- Pull Ropes
- Load Lines
- Backhaul Ropes
- Draglines

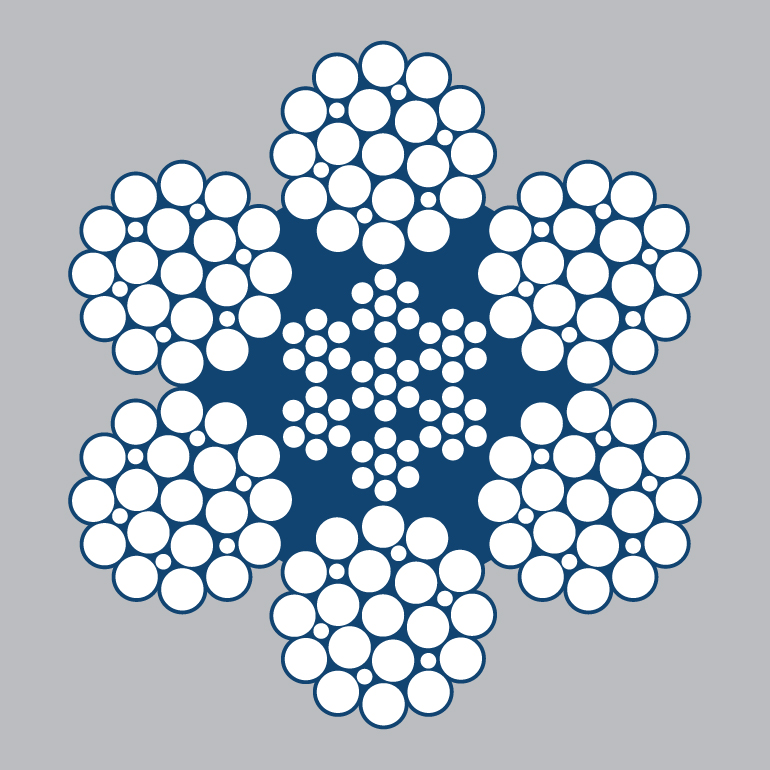

IWRC shown; Fiber Core available
6 x 25 Filler Wire
Characteristics
Most flexible rope in classification; best balance of abrasion and fatigue resistance
Typical Applications
Most widely used of all wire rope –
- Cranes Hoists
- Skip Hoists
- Haulage
- Mooring Lines
- Conveyors
- Etc.

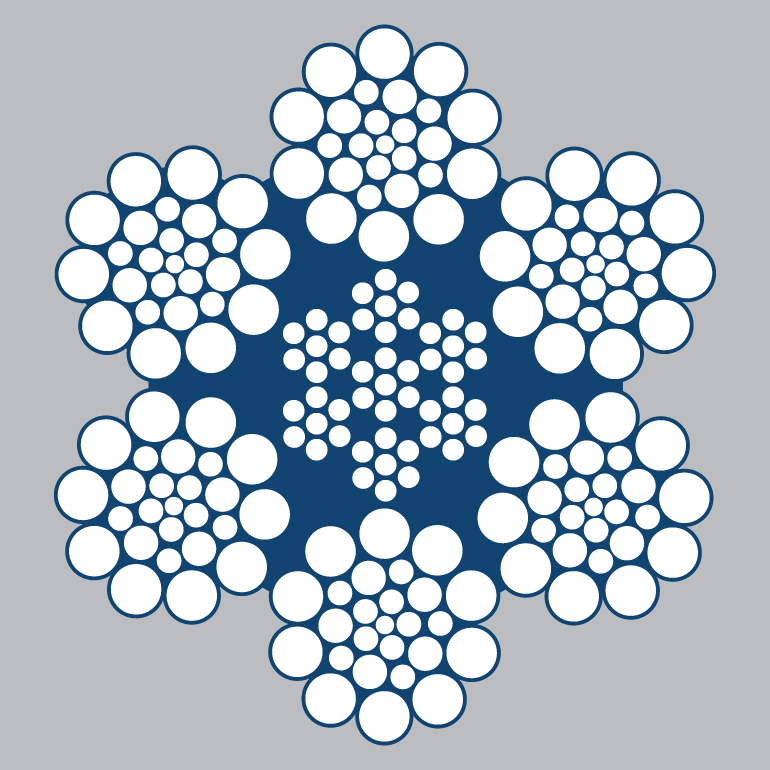

IWRC shown; Fiber Core available
6 x 26 Warrington Seale
Characteristics
Good balance of abrasion and fatigue resistance
Typical Applications
- Boom Hoists
- Logging and Tubing Lines
| 6 x 19 Classification Rope | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter, in. | Nominal Strength, *Tons (Bright or Drawn Galvanized)† | Approximate wt./Ft, lb. | ||||||||
| EEIP | EIP | IWRC | Fiber Core | |||||||
|
CERTEX Cat. Ref. No. |
IWRC |
CERTEX Cat. Ref. No. |
Fiber Core |
CERTEX Cat. Ref. No. |
IWRC |
CERTEX Cat. Ref. No. |
Fiber Core | |||
| 1/4 | — | — | CX01·00S9 | 3.40 | CX01-0634 | 3.02 | 0.116 | 0.105 | ||
| 5/16 | — | — | CX01·0060 | 5.27 | CX01-0635 | 4.69 | 0.18 | 0.164 | ||
| 3/8 | — | — | CX01·0061 | 7.55 | CX01-0636 | 6.71 | 0.26 | 0.236 | ||
| 7/16 | CX01-0029 | 11.2 | CXO1-0044 | 9.90 | CXOl-0062 | 10.2 | CX01-0637 | 9.09 | 0.35 | 0.32 |
| 1/2 | CX01-0030 | 14.6 | CXOl – 0045 | 12.9 | CXOl-0063 | 13.3 | CX01-0638 | 11.8 | 0.46 | 0.42 |
| 9/16 | CX01-0031 | 18.S | CXOl – 0046 | 16.2 | CXOl-0064 | 16.8 | CX01-0639 | 14.9 | 0.59 | 0.53 |
| 5/8 | CX01·0032 | 22.7 | CXOl – 0047 | 20.0 | CXOl-0065 | 20.6 | CX01-0640 | 18.3 | 0.72 | 0.66 |
| 3/4 | CXOl-0033 | 32.4 | CXOl – 0048 | 28.6 | CX01·0066 | 29.4 | CX01-0641 | 26.2 | 1.04 | 0.95 |
| 7/8 | CX01·0034 | 43.8 | CXOl – 0049 | 39.0 | CX01·0067 | 39.8 | CX01-0642 | 35.4 | 1.42 | 1.29 |
| 1 | CXOl-0035 | 56.9 | CXOl – 0050 | 50.6 | CX01·0068 | 51.7 | CX01-0643 | 46.0 | 1.85 | 1.68 |
| 1 1/8 | CX01-0036 | 71.S | CXOl – 0051 | 63.6 | CX01·0069 | 65.0 | CX01-0644 | 57.9 | 2.34 | 2.13 |
| 1 1/4 | CXOl-0037 | 87.9 | CXOl – 0052 | 78.2 | CX01-0070 | 79.9 | CX01-0645 | 71.0 | 2.89 | 2.63 |
| 1 3/8 | CX01-0038 | 106.0 | CXOl – 0053 | 94.0 | CX01-0071 | 96.0 | CX01-0646 | 85.4 | 3.50 | 3.18 |
| 1 1/2 | CXOl-0039 | 125.0 | CXOl – 0054 | 111.0 | CX01-0072 | 114.0 | CX01-0647 | 101.0 | 4.16 | 3.78 |
| 1 5/8 | CXOl-0040 | 146.0 | CXOl – 0055 | 129.0 | CX01-0073 | 132.0 | CX01-0648 | 118.0 | 4.88 | 4.44 |
| 1 3/4 | CXOl-0041 | 169.0 | CXOl – 0056 | 150.0 | CX01-0074 | 153.0 | CX01-0649 | 136.0 | 5.67 | 5.15 |
| 1 7/8 | CXOl-0042 | 192.0 | CXOl – 0057 | 17 1.0 | CX01-0075 | 174.0 | CX01-0650 | 155.0 | 6.50 | 5.91 |
| 2 | CXOl-0049 | 217.0 | CXOl – 0058 | 194.0 | CX01-0076 | 198.0 | CX01-0651 | 176.0 | 7.39 | 6.72 |
| 2 1/8 | — | — | CX01·0628 | 221.0 | CX01-0652 | 197.0 | 8.35 | 7.59 | ||
| 2 1/4 | — | — | CX01·0629 | 247.0 | CX01-0653 | 220.0 | 9.36 | 8.51 | ||
| 2 3/8 | — | — | CX01·0630 | 274.0 | CX01-0654 | 244.0 | 10.4 | 9.48 | ||
| 2 1/2 | — | — | CX01·0631 | 302.0 | CX01-0655 | 269.0 | 11.6 | 10.5 | ||
| 2 5/8 | — | — | CX01·0632 | 331.0 | — | 12.8 | 11.6 | |||
| 2 3/4 | — | — | CX01·0633 | 361.0 | — | 14.0 | 12.7 | |||
*Acceptance strength is not less than 2 1/2% below the nominal strengths listed. †Galvanizing: For class A galvanized wire rope (EIP and IPS grades only), deduct 10% from the nominal strength shown.
WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!
