Crosby® HG-225 Hook & Eye Turnbuckles
  • Hot Dip galvanized steel.
  • End fittings are Quenched and Tempered, bodies heat treated by normalizing.
  • Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckles sizes 1/4” through 2 1/2”, a shackle one size smaller can be reeved through eye.
  • Turnbuckle hooks are forged with a greater cross sectional area that results in a stronger hook with better fatigue properties.
  • TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY
  • Modified UNJ thread for improved fatigue properties.
  • Lock Nuts available for all sizes.

Meets the performance requirements of Federal Specifications FF-T-791b, Type 1, Form 1 — CLASS 6, except for those provisions required of the contractor


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

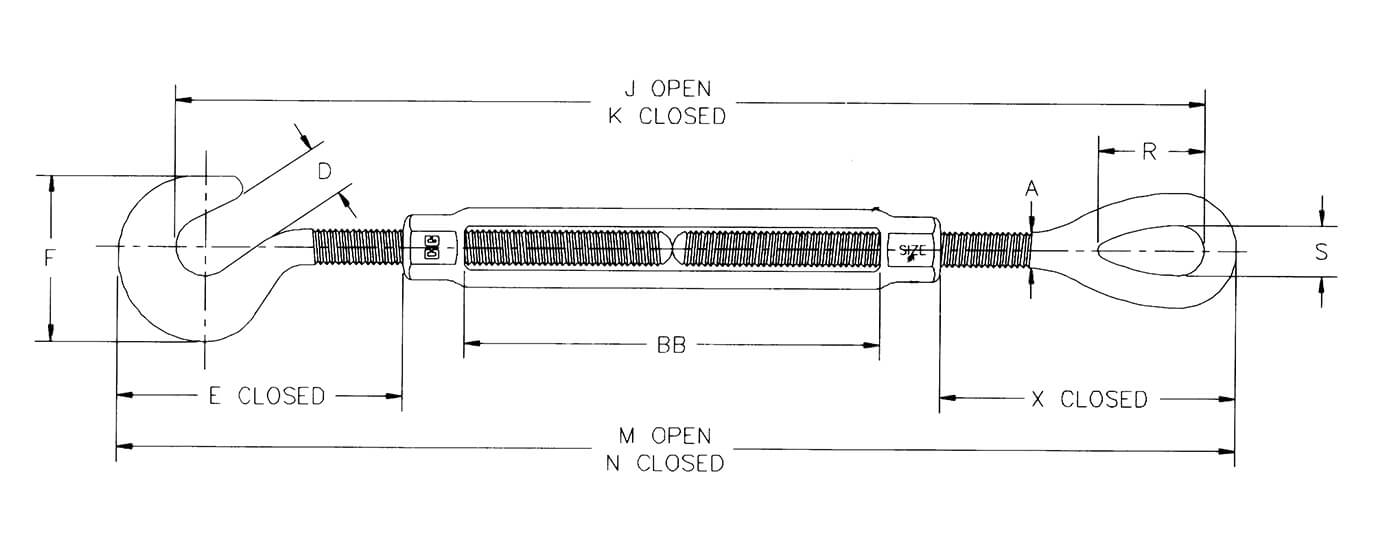

Thread Diameter & Take Up (in.) CERTEX Cat. Ref. No. Crosby Stock No. Galv Working Load Limit* (lbs.) Weight Each (lbs.) Dimensions (in.)
A D E Closed F J Open K Closed M Open N Closed R S X Closed BB
1/4 x 4 CX05-0448 1030636 400 .29 .25 .45 1.59 1.27 11.46 7.46 12.09 8.09 .78 .34 1.75 4.00
5/16 x 4 1/2 CX05-0449 1030654 700 .49 .31 .50 1.94 1.50 13.19 8.69 13.47 9.47 .94 .44 2.09 4.50
3/8 x 6 CX05-0450 1030672 1000 .78 .38 .56 2.30 1.77 16.98 10.98 17.94 11.94 1.12 .53 2.52 6.00
1/2 x 6 CX05-0451 1030690 1500 1.61 .50 .66 2.94 2.28 18.45 12.45 19.67 13.67 1.44 .72 3.23 6.00
1/2 x 9 CX05-0452 1030716 1500 1.85 .50 .66 2.94 2.28 24.45 15.45 25.67 16.67 1.44 .72 3.23 9.00
1/2 x 12 CX05-0453 1030734 1500 2.26 .50 .66 2.94 2.28 30.45 18.45 31.67 19.67 1.44 .72 3.23 12.00
5/8 x 6 CX05-0454 1030752 2250 2.70 .63 .84 3.69 2.81 19.96 13.96 21.47 15.47 1.75 .88 3.90 6.00
5/8 x 9 CX05-0455 1030770 2250 3.13 .63 .84 3.69 2.81 25.96 16.96 27.47 18.47 1.75 .88 3.90 9.00
5/8 x 12 CX05-0456 1030798 2250 3.78 .63 .84 3.69 2.81 31.96 19.96 33.47 21.47 1.75 .88 3.90 12.00
3/4 x 6 CX05-0457 1030814 3000 3.89 .75 .98 4.52 3.33 21.63 15.63 23.45 17.45 2.09 1.00 4.69 6.00
3/4 x 9 CX05-0458 1030832 3000 4.61 .75 .98 4.52 3.33 27.63 18.63 29.45 20.45 2.09 1.00 4.69 9.00
3/4 x 12 CX05-0459 1030850 3000 5.83 .75 .98 4.52 3.33 33.63 21.63 35.45 23.45 2.09 1.00 4.69 12.00
3/4 x 18 CX05-0460 1030878 3000 6.33 .75 .98 4.52 3.33 34.78 27.63 47.45 29.45 2.09 1.00 4.69 18.00
7/8 x 12 CX05-0461 1030896 4000 8.10 .88 1.13 5.19 3.78 34.78 22.78 36.91 24.91 2.38 1.25 5.10 12.00
7/8 x 18 CX05-0462 1030912 4000 9.95 .88 1.13 5.19 3.78 46.78 28.78 48.91 30.91 2.38 1.25 5.10 18.00
1 x 6 CX05-0463 1030930 5000 9.33 1.00 1.25 5.84 4.25 24.80 18.80 27.20 21.20 3.00 1.44 6.36 6.00
1 x 12 CX05-0464 1030958 5000 11.93 1.00 1.25 5.84 4.25 36.80 24.80 39.20 27.20 3.00 1.44 6.36 12.00
1 x 18 CX05-0465 1030976 5000 14.00 1.00 1.25 5.84 4.25 48.80 30.80 51.20 33.20 3.00 1.44 6.36 18.00
1 x 24 CX05-0466 1030994 5000 17.25 1.00 1.25 5.84 4.25 60.80 36.80 63.20 39.20 3.00 1.44 6.36 24.00
1 1/4 x 12 CX05-0467 1031010 6500 19.00 1.25 1.50 7.22 5.13 39.13 27.13 42.06 30.06 3.56 1.81 7.72 12.00
1 1/4 x 18 CX05-0468 1031038 6500 23.00 1.25 1.50 7.22 5.13 51.13 33.13 54.06 36.06 3.56 1.81 7.72 18.00
1 1/4 x 24 CX05-0469 1031056 6500 24.00 1.25 1.50 7.22 5.13 63.13 39.13 66.06 42.06 3.56 1.81 7.72 24.00
1 1/2 x 12 CX05-0470 1031074 7500 27.50 1.50 1.88 8.34 5.75 41.72 29.72 44.72 32.72 4.06 2.12 8.62 12.00
1 1/2 x 18 CX05-0471 1031092 7500 31.00 1.50 1.88 8.34 5.75 53.72 35.72 56.72 38.72 4.06 2.12 8.62 18.00
1 1/2 x 24 CX05-0472 1031118 7500 37.50 1.50 1.88 8.34 5.75 65.72 41.72 68.72 44.72 4.06 2.12 8.62 24.00



* Proof Load is 2.5 times Working Load Limit. Ultimate load is 5 times Working Load Limit.
