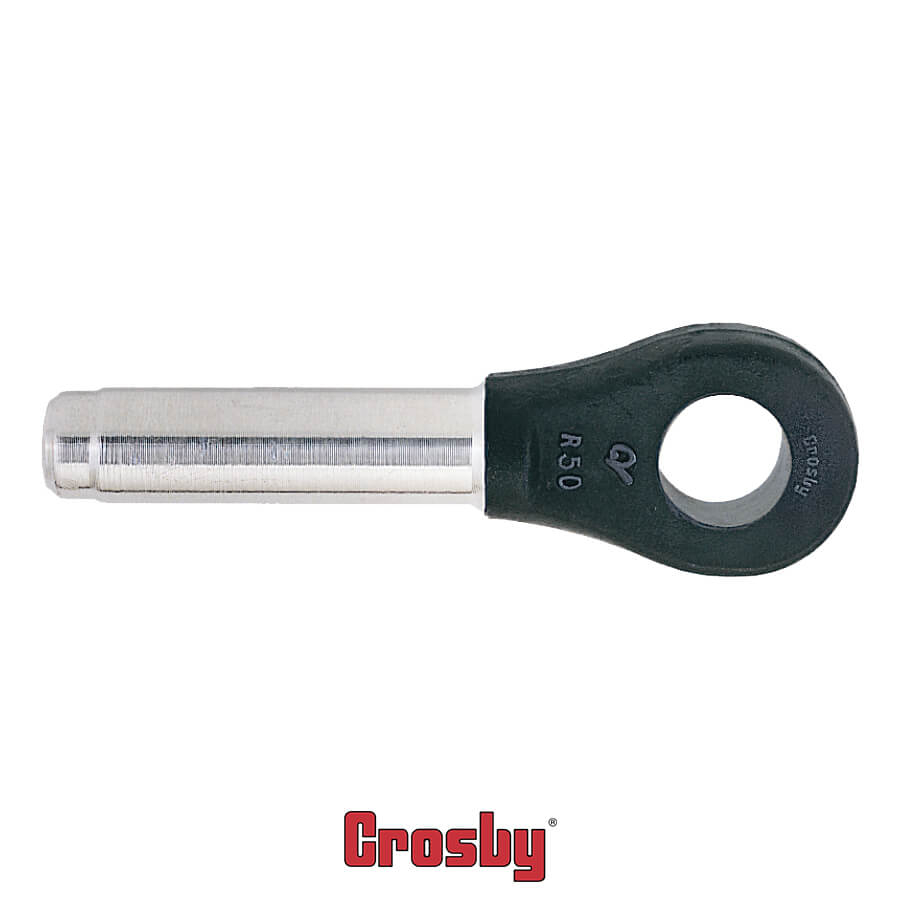

Crosby® S-502 Closed Swage Socket

Swage sockets incorporate a reduced machined area of the shank which is equivalent to the proper after Swage dimension. Before swaging, this provides for an obvious visual difference in the shank diameter. After swaging, a uniform shank diameter is created allowing for a QUIC-CHECK™ and permanent visual inspection opportunity.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

S-502 Open Socket Specifications

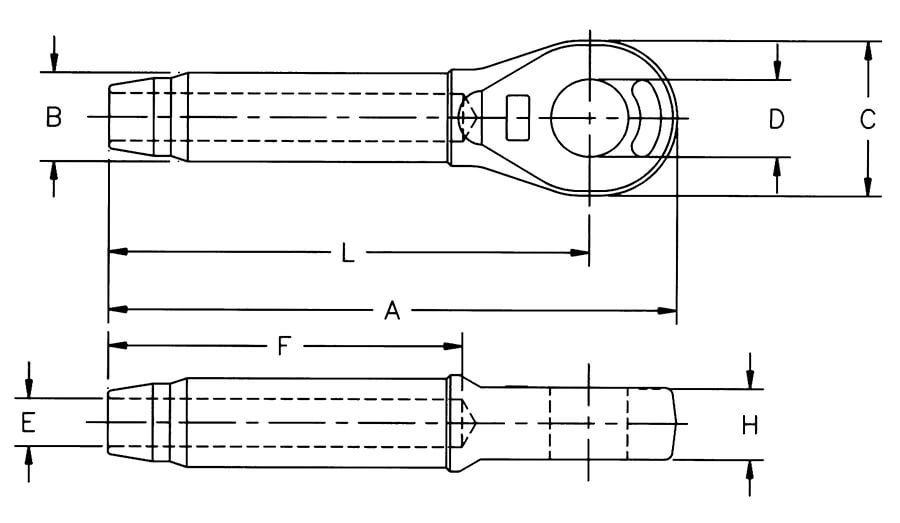

CERTEX Cat. Ref. No. Crosby Stock No. Rope Size (in.) Weight Each (lbs.) Before Swage Dimensions Max. After Swage Dim. (in.)
A B C D E F H L
CX04-0184 1039325 1/4 .33 4.31 .50 1.38 .75 .27 2.12 .50 3.50 .46
CX04-0185 1039343 5/16 .75 5.44 .77 1.62 .88 .34 3.19 .67 4.50 .71
CX04-0186 1039361 3/8 .72 5.44 .77 1.62 .88 .41 3.19 .67 4.50 .71
CX04-0187 1039389 7/16 1.42 6.91 .98 2.00 1.06 .48 4.25 .86 5.75 .91
CX04-0188 1039405 1/2 1.42 6.91 .98 2.00 1.06 .55 4.25 .86 5.75 .9
CX04-0189 1039423 9/16 2.92 8.66 1.25 2.38 1.25 .61 5.31 1.13 7.25 1.16
CX04-0190 1039441 5/8 2.85 8.66 1.25 2.38 1.25 .67 5.31 1.13 7.25 1.16
CX04-0191 1039469 3/4 5.00 10.28 1.55 2.88 1.44 .80 6.38 1.31 8.63 1.42
CX04-0192 1039487 7/8 6.80 11.94 1.70 3.12 1.69 .94 7.44 1.50 10.13 1.55
CX04-0193 1039502 1 10.40 13.56 1.98 3.63 2.06 1.06 8.50 1.75 11.50 1.80
CX04-0194 1039520 1-1/8 14.82 15.03 2.25 4.00 2.31 1.19 9.56 2.00 12.75 2.05
CX04-0195 1039548 1-1/4 21.57 16.94 2.53 4.50 2.56 1.33 10.63 2.25 14.38 2.30
CX04-0196 1039566 1-3/8 28.54 18.63 2.80 5.00 2.56 1.45 11.69 2.25 15.75 2.56
CX04-0197 1039584 1-1/2 38.06 20.12 3.08 5.50 2.81 1.58 12.75 2.50 17.00 2.81
CX04-0198 1039600 1-3/4 51.00 23.56 3.39 6.25 3.56 1.86 14.88 3.00 20.00 3.06
CX04-0199 1039589 2 89.25 27.62 3.94 7.25 3.81 2.11 17.00 3.25 23.00 3.56

* Maximum Proof Load shall not exceed 40% of XXIP rope catalog breaking strength.







Wire Rope Terminations Information

Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections, it does not eliminate the need to perform standard production inspections which include gauging for the proper after swage dimensions or proof loading.

U.S. Patent 5,152,630 and foreign equivalents.

• Forged from special bar quality carbon steel, suitable for cold forming.
• Hardness controlled by spheroidize annealing.
• Swage Socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope.
• Stamp for identification after swaging without concern for fractures (as per directions in National Swaging Brochure).

NOTE: S-502 Swage Sockets are recommended for use with 6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope.

In accordance with ANSI B30.9, all slings terminated with swage sockets shall be proof loaded.*

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
